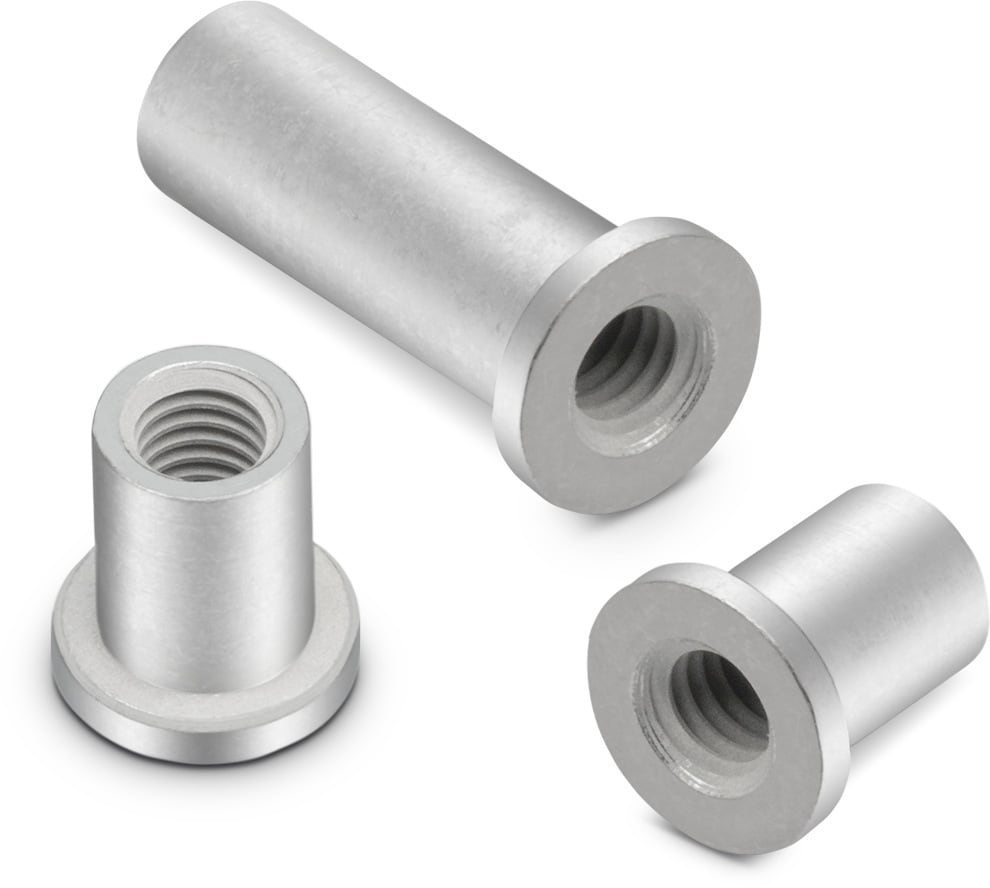

Applications
- Generate distance on the bottom of the PCB, by assembling and soldering on the top
- Simple and fast automated assembly
- For distances from 1 to 10 mm (when using standard pcb-thickness of 1.6 mm)
- With a through-thread of M3
- High mechanical forces and torques
| Properties | |
|---|---|
| Material | Steel |
| Surface | Tin |
| General Information | |
|---|---|
| Operating Temperature | -55 up to +150 °C |
| Packaging Properties | |
|---|---|
| Packaging | Bulk; Tape and Reel |
| Qty. | 300; 350; 450; 600; 700; 950 |
Products

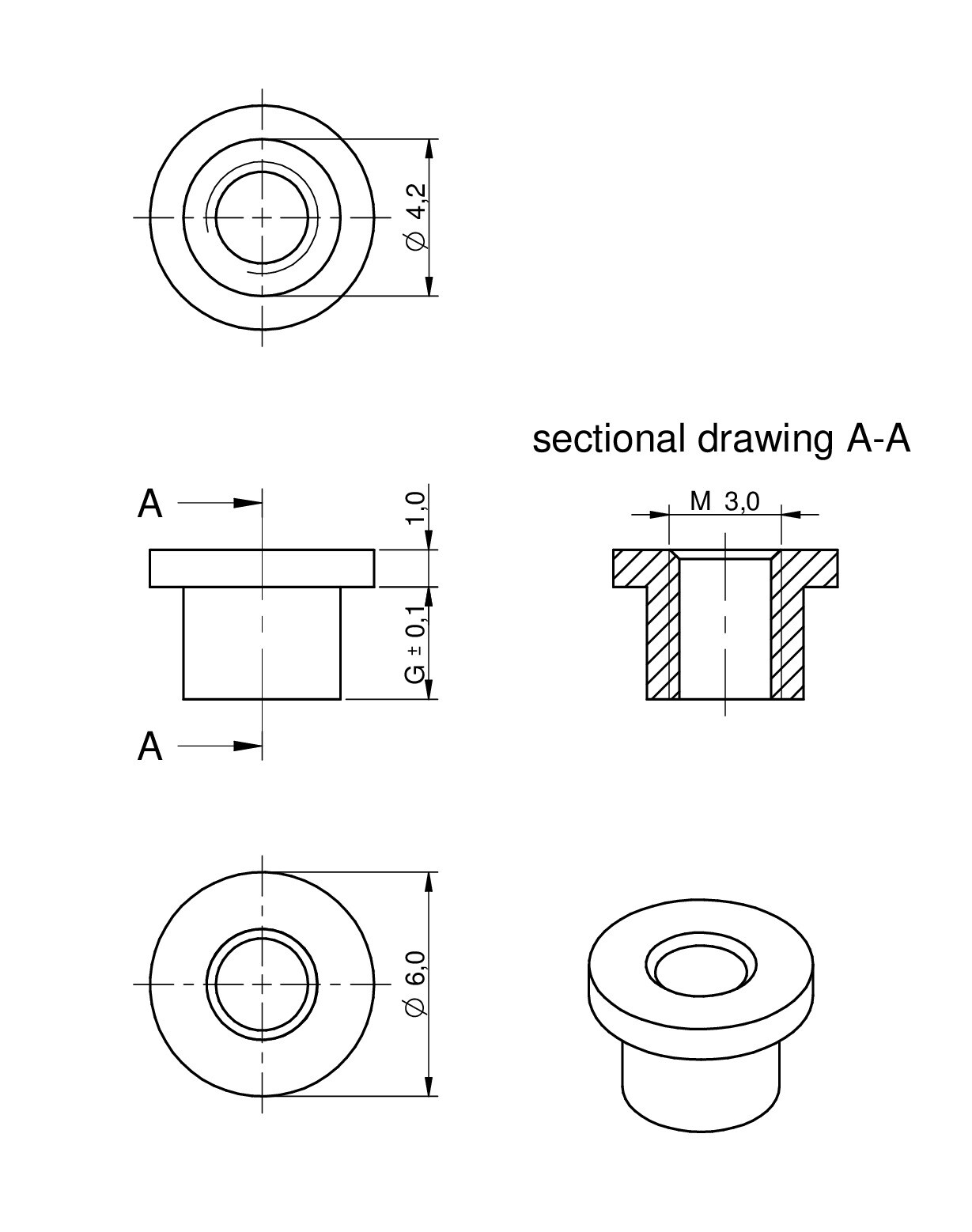

| Order Code | SPEC | Downloads | G
(mm) |
Ø OD
(mm) |
Ø ID
(mm) |
Thread | Material | Surface | Packaging | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9775026360 |
|
STE 3D ALT EAG IGS | 2.6 | 6 | 4.2 | M3 | Steel | Tin | Bulk |
977990
|
|
| 9775026360R |
|
STE 3D ALT EAG IGS | 2.6 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775031360 |
|
STE 3D ALT EAG IGS | 3.1 | 6 | 4.2 | M3 | Steel | Tin | Bulk | – | |
| 9775031360R |
|
STE 3D ALT EAG IGS | 3.1 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775036360 |
|
STE 3D ALT EAG IGS | 3.6 | 6 | 4.2 | M3 | Steel | Tin | Bulk | – | |
| 9775036360R |
|
STE 3D ALT EAG IGS | 3.6 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775041360 |
|
STE 3D ALT EAG IGS | 4.1 | 6 | 4.2 | M3 | Steel | Tin | Bulk | – | |
| 9775041360R |
|
STE 3D ALT EAG IGS | 4.1 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775046360 |
|
STE 3D ALT EAG IGS | 4.6 | 6 | 4.2 | M3 | Steel | Tin | Bulk | – | |
| 9775046360R |
|
STE 3D ALT EAG IGS | 4.6 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775051360 |
|
STE 3D ALT EAG IGS | 5.1 | 6 | 4.2 | M3 | Steel | Tin | Bulk | – | |
| 9775051360R |
|
STE 3D ALT EAG IGS | 5.1 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775056360 |
|
STE 3D ALT EAG IGS | 5.6 | 6 | 4.2 | M3 | Steel | Tin | Bulk | – | |
| 9775056360R |
|
STE 3D ALT EAG IGS | 5.6 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775066360 |
|
STE 3D ALT EAG IGS | 6.6 | 6 | 4.2 | M3 | Steel | Tin | Bulk | – | |
| 9775066360R |
|
STE 3D ALT EAG IGS | 6.6 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775076360 |
|
STE 3D ALT EAG IGS | 7.6 | 6 | 4.2 | M3 | Steel | Tin | Bulk | – | |
| 9775076360R |
|
STE 3D ALT EAG IGS | 7.6 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775086360 |
|
STE 3D ALT EAG IGS | 8.6 | 6 | 4.2 | M3 | Steel | Tin | Bulk |
977990
|
|
| 9775086360R |
|
STE 3D ALT EAG IGS | 8.6 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775096360 |
|
STE 3D ALT EAG IGS | 9.6 | 6 | 4.2 | M3 | Steel | Tin | Bulk | – | |
| 9775096360R |
|
STE 3D ALT EAG IGS | 9.6 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775106360 |
|
STE 3D ALT EAG IGS | 10.6 | 6 | 4.2 | M3 | Steel | Tin | Bulk | – | |
| 9775106360R |
|
STE 3D ALT EAG IGS | 10.6 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – | |
| 9775116360 |
|
STE 3D ALT EAG IGS | 11.6 | 6 | 4.2 | M3 | Steel | Tin | Bulk | – | |
| 9775116360R |
|
STE 3D ALT EAG IGS | 11.6 | 6 | 4.2 | M3 | Steel | Tin | Tape and Reel | – |
| Samples |
|---|
| Order Code | SPEC | Downloads | G
(mm) |
Ø OD
(mm) |
Ø ID
(mm) |
Thread | Material | Surface | Packaging | Design Kit | Samples |
|---|
Assortments
Articles from this product series can be found in the following assortments:
