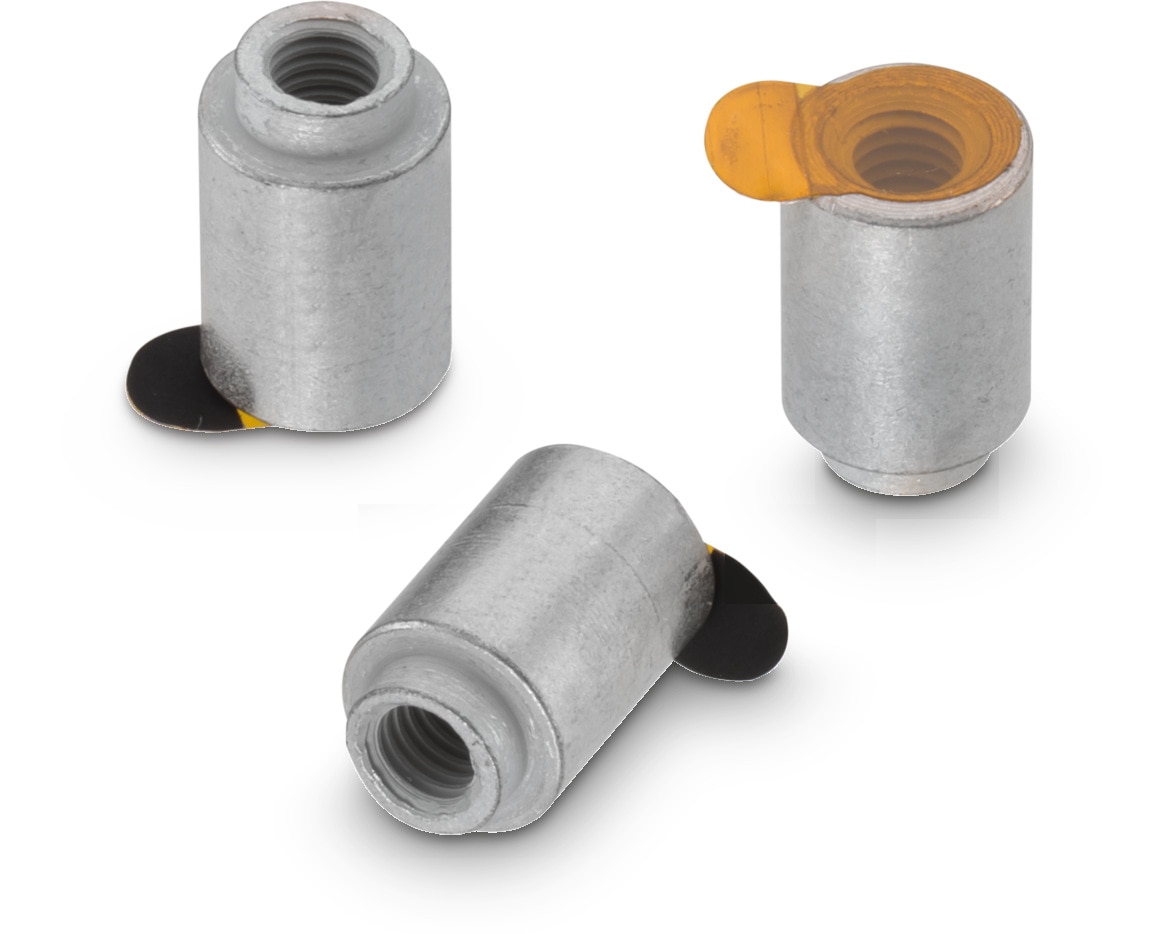

WA-SMSI SMT Steel Spacer, M4 Thread Internal

Properties
Material Steel
Surface Tin
General Information
Operating Temperature -55 up to +150 °C
Packaging Properties
Packaging Bulk; Tape and Reel

Checkmate. SMT Spacer wins!

SMT Spacers from Würth Elektronik significantly optimize the assembly process of electromechanical units. Mounting conventional spacers takes a lot of time, SMT Spacers are tailor-made for full automation.

Product video and more

Products

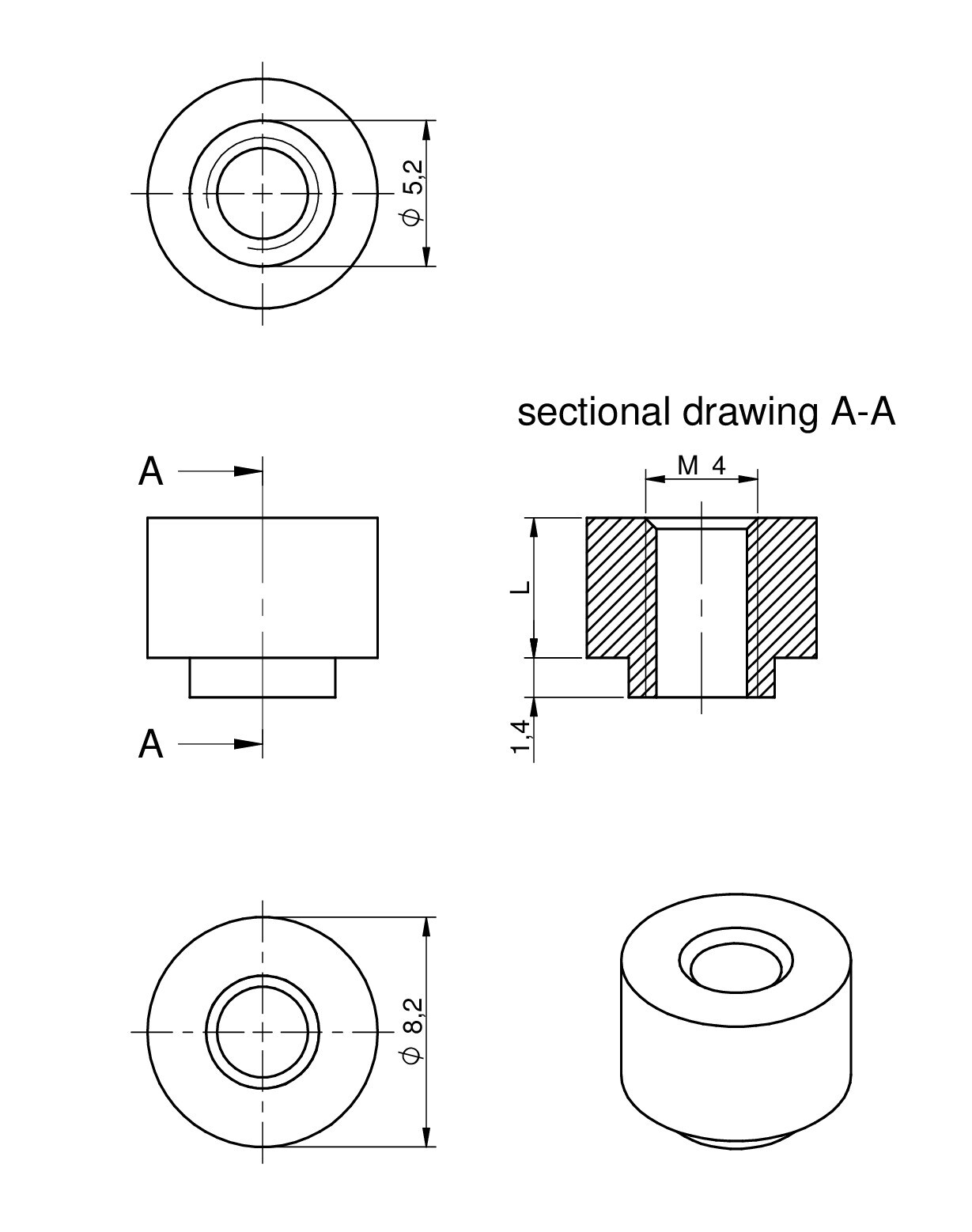

Order Code SPEC Downloads L
(mm) 		Ø OD
(mm) 		Ø ID
(mm) 		Thread Material Surface Packaging Samples
9774010482
STE 3D ALT EAG IGS CAD 1 8.2 5.2 M4 Steel Tin Bulk
9774010482R
STE 3D ALT EAG IGS CAD 1 8.2 5.2 M4 Steel Tin Tape and Reel
9774020482
STE 3D ALT EAG IGS CAD 2 8.2 5.2 M4 Steel Tin Bulk
9774020482R
STE 3D ALT EAG IGS CAD 2 8.2 5.2 M4 Steel Tin Tape and Reel
9774030482
STE 3D ALT EAG IGS CAD 3 8.2 5.2 M4 Steel Tin Bulk
9774030482R
STE 3D ALT EAG IGS CAD 3 8.2 5.2 M4 Steel Tin Tape and Reel
9774040482
STE 3D ALT EAG IGS CAD 4 8.2 5.2 M4 Steel Tin Bulk
9774040482R
STE 3D ALT EAG IGS CAD 4 8.2 5.2 M4 Steel Tin Tape and Reel
9774050482
STE 3D ALT EAG IGS CAD 5 8.2 5.2 M4 Steel Tin Bulk
9774050482R
STE 3D ALT EAG IGS CAD 5 8.2 5.2 M4 Steel Tin Tape and Reel
9774060482
STE 3D ALT EAG IGS CAD 6 8.2 5.2 M4 Steel Tin Bulk
9774060482R
STE 3D ALT EAG IGS CAD 6 8.2 5.2 M4 Steel Tin Tape and Reel
9774070482
STE 3D ALT EAG IGS CAD 7 8.2 5.2 M4 Steel Tin Bulk
9774070482R
STE 3D ALT EAG IGS CAD 7 8.2 5.2 M4 Steel Tin Tape and Reel
9774080482
STE 3D ALT EAG IGS CAD 8 8.2 5.2 M4 Steel Tin Bulk
9774080482R
STE 3D ALT EAG IGS CAD 8 8.2 5.2 M4 Steel Tin Tape and Reel
9774090482
STE 3D ALT EAG IGS CAD 9 8.2 5.2 M4 Steel Tin Bulk
9774090482R
STE 3D ALT EAG IGS CAD 9 8.2 5.2 M4 Steel Tin Tape and Reel
9774100482
STE 3D ALT EAG IGS CAD 10 8.2 5.2 M4 Steel Tin Bulk
9774100482R
STE 3D ALT EAG IGS CAD 10 8.2 5.2 M4 Steel Tin Tape and Reel
