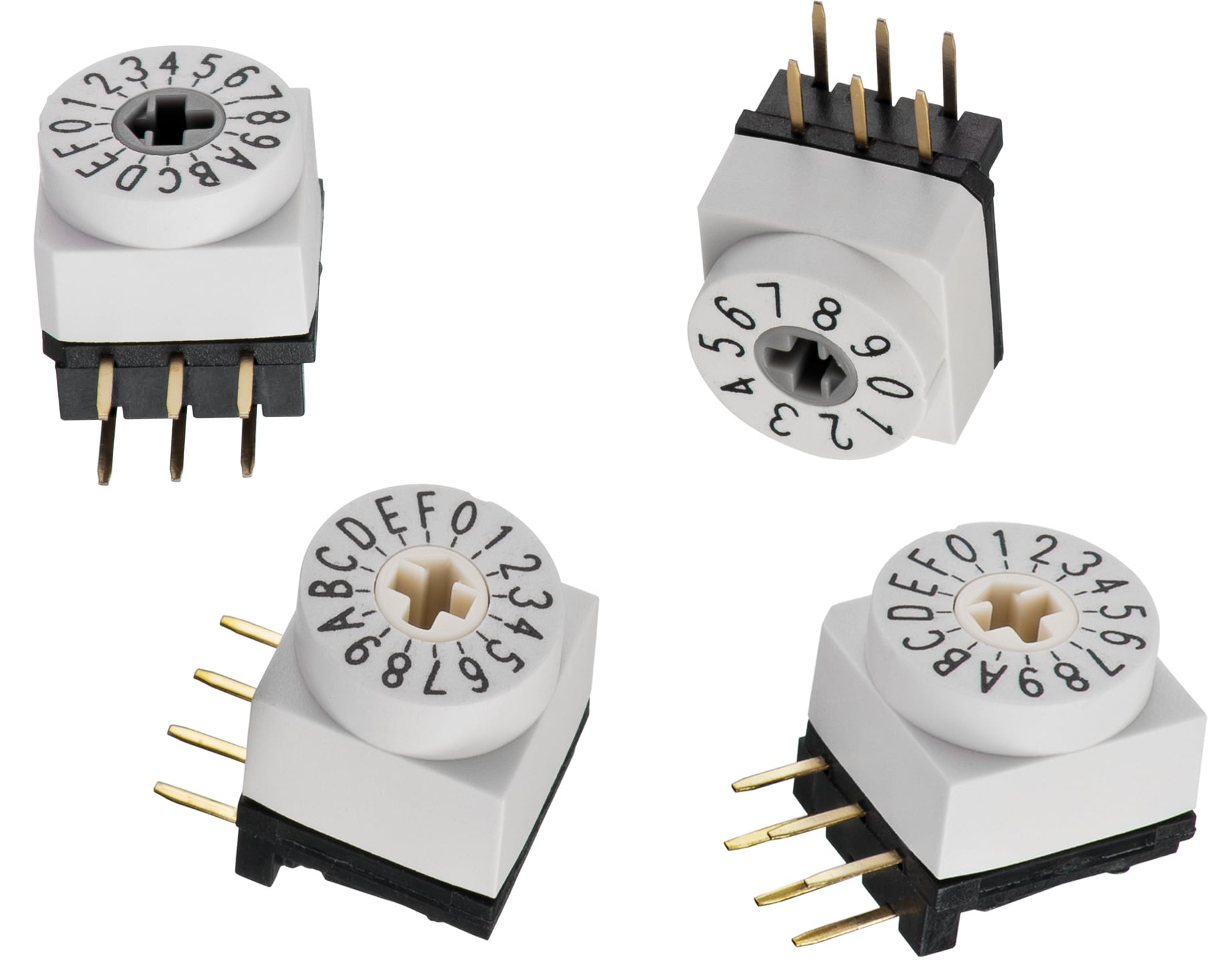

WS-ROTU THT Rotary Switch Right Angled with Cross Type Actuator, 2.54 mm Pitch, 10x10 mm

Material Properties
Cover Material PA66
Properties
Actuator Material POM
Actuator Flammability Rating UL94 HB
Actuator Color Dark Grey; Ivory
Base Material PA66
Base Flammability Rating UL94 V-0
Terminal Plating Gold
Actuator Type Arrow Type
Washable Yes
Packaging Properties
Packaging Tube
General Information
Operating Temperature -40 up to +85 °C
Electrical Properties
IR 1 150 mA
Tableadditional
Actuator Type Arrow Type
Washable Yes
Mechanical Properties
Electrical Life 10000 Steps
Actuator Type Arrow Type
Code Complement Code; Real Code

Products

Order Code SPEC Downloads Qty. Number of Position Design Kit Samples
428427520910
STE ALT EAG IGS CAD 50 10 499001
428427520911
STE ALT EAG IGS CAD 50 10
428427520916
STE ALT EAG IGS CAD 50 16 499001
428427520917
STE ALT EAG IGS CAD 50 16
Order Code SPEC
428427520910
428427520911
428427520916
428427520917
Samples
Order Code SPEC Downloads Qty. Number of Position Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
