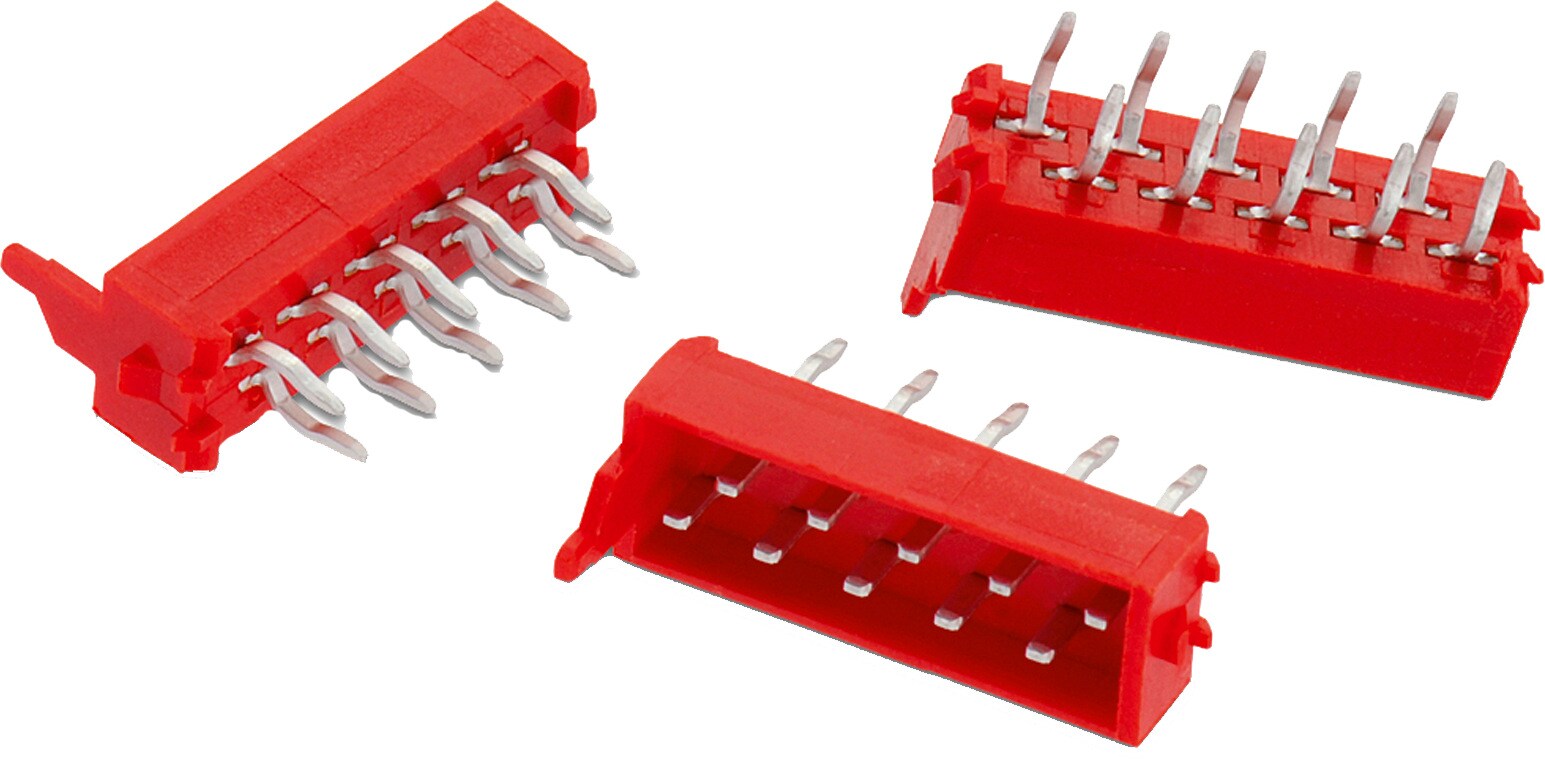

WR-MM Male Connector w/o Latch & w. Polarization

Kind Properties
Pitch 2.54 mm
Quality Class 25 Mating cycles
Gender Male
Material Properties
Insulator Material PBT
Insulator Flammability Rating UL94 V-0
Insulator Color Red
Contact Material Phosphor Bronze
Contact Plating Matte Tin over Nickel
Contact Type Stamped
General Information
Operating Temperature -40 up to +105 °C
Compliance Lead free / RoHS
Electrical Properties
IR 1 1.5 A
Working Voltage 100 V (AC)
Withstanding Voltage 500 V (AC)
Contact Resistance 10 mΩ
RISO 1000 MΩ
Packaging Properties
cULus Approval E323964
Packaging Tube

Products

Order Code SPEC Downloads Pins TC P Gender Type IR 1
(A)
Packaging Design Kit Samples
690357100472
STE 3D ALT EAG IGS CAD 4 per Row Male Straight 1.5 Tube 690001
690357100672
STE 3D ALT EAG IGS CAD 6 per Row Male Straight 1.5 Tube 690001
690357100872
STE 3D ALT EAG IGS CAD 8 per Row Male Straight 1.5 Tube 690001
690357101072
STE 3D ALT EAG IGS CAD 10 per Row Male Straight 1.5 Tube 612690
690001
690357101272
STE 3D ALT EAG IGS CAD 12 per Row Male Straight 1.5 Tube 690001
690357101472
STE 3D ALT EAG IGS CAD 14 per Row Male Straight 1.5 Tube 690001
690357101672
STE 3D ALT EAG IGS CAD 16 per Row Male Straight 1.5 Tube 690001
690357101872
STE 3D ALT EAG IGS CAD 18 per Row Male Straight 1.5 Tube 690001
690357102072
STE 3D ALT EAG IGS CAD 20 per Row Male Straight 1.5 Tube 690001
690357102272
STE 3D ALT EAG IGS CAD 22 per Row Male Straight 1.5 Tube 690001
690357102472
STE 3D ALT EAG IGS CAD 24 per Row Male Straight 1.5 Tube 690001
690357102672
STE 3D ALT EAG IGS CAD 26 per Row Male Straight 1.5 Tube 690001
Order Code SPEC
690357100472
690357100672
690357100872
690357101072
690357101272
690357101472
690357101672
690357101872
690357102072
690357102272
690357102472
690357102672
Samples
Order Code SPEC Downloads Pins TC P Gender Type IR 1
(A)
Packaging Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
