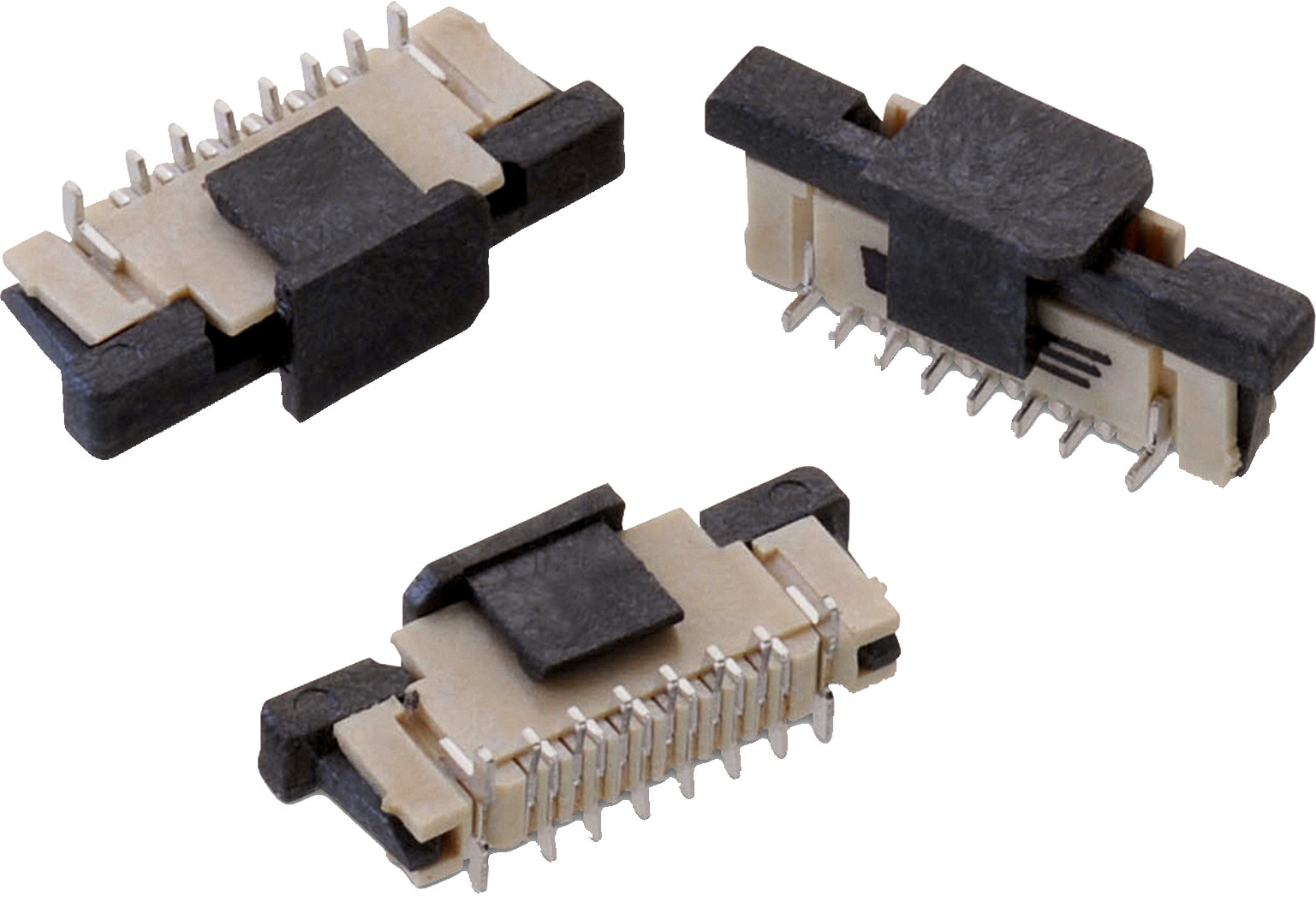

WR-FPC 0.50 mm SMT ZIF Vertical | Electromechanical Components | Würth Elektronik Product Catalog

: Products Reference Designs Applications & Industries

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyFPC Connector and FFC Cable Product sub-familyZIF Connectors (Zero Insertion Force)Product seriesWR-FPC 0.50 mm SMT ZIF Vertical

General Information
Pitch	0.5 mm

Material Properties
Insulator Material	LCP
Contact Material	Phosphor Bronze
Contact Plating	100 (µ") Tin over 50 (µ") Nickel
Contact Type	Stamped
Solder Tabs	Brass

Application Notes

ANE018 Plastic Material Properties
PDF

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples
687306124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687306124422 (rev1).pdf \| 108.9 KB IGS Download_IGES_687306124422 (rev1).iges \| 1.9 MB STP 687306124422 (rev1).stp \| 446.4 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	6	0.5	Vertical	9.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687308124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687308124422 (rev1).pdf \| 125.9 KB IGS Download_IGES_687308124422 (rev1).iges \| 2.1 MB STP 687308124422 (rev1).stp \| 489.3 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	8	0.5	Vertical	10.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687310124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687310124422 (rev1).pdf \| 135.5 KB IGS Download_IGES_687310124422 (rev1).iges \| 2.3 MB STP 687310124422 (rev1).stp \| 530.1 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	10	0.5	Vertical	11.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687312124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687312124422 (rev1).pdf \| 145 KB IGS Download_IGES_687312124422 (rev1).iges \| 2.4 MB STP 687312124422 (rev1).stp \| 579.3 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	12	0.5	Vertical	12.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687314124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687314124422 (rev1).pdf \| 154.7 KB IGS Download_IGES_687314124422 (rev1).iges \| 2.6 MB STP 687314124422 (rev1).stp \| 621.3 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	14	0.5	Vertical	13.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687316124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687316124422 (rev1).pdf \| 164.5 KB IGS Download_IGES_687316124422 (rev1).iges \| 2.8 MB STP 687316124422 (rev1).stp \| 661.7 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	16	0.5	Vertical	14.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687318124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687318124422 (rev1).pdf \| 174 KB IGS Download_IGES_687318124422 (rev1).iges \| 3 MB STP 687318124422 (rev1).stp \| 701.5 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	18	0.5	Vertical	15.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687320124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687320124422 (rev1).pdf \| 184 KB IGS Download_IGES_687320124422 (rev1).iges \| 3.1 MB STP 687320124422 (rev1).stp \| 751.4 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	20	0.5	Vertical	16.4	0.5	50	Tape and Reel with Cap	20	max.	612690 687001
687322124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687322124422 (rev1).pdf \| 193.6 KB IGS Download_IGES_687322124422 (rev1).iges \| 3.3 MB STP 687322124422 (rev1).stp \| 798.7 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	22	0.5	Vertical	17.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687324124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687324124422 (rev1).pdf \| 203.4 KB IGS Download_IGES_687324124422 (rev1).iges \| 3.5 MB STP 687324124422 (rev1).stp \| 839.7 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	24	0.5	Vertical	18.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687326124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687326124422 (rev1).pdf \| 213.2 KB IGS Download_IGES_687326124422 (rev1).iges \| 3.7 MB STP 687326124422 (rev1).stp \| 889 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	26	0.5	Vertical	19.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687328124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687328124422 (rev1).pdf \| 223 KB IGS Download_IGES_687328124422 (rev1).iges \| 3.8 MB STP 687328124422 (rev1).stp \| 939.1 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	28	0.5	Vertical	20.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687330124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687330124422 (rev1).pdf \| 233.1 KB IGS Download_IGES_687330124422 (rev1).iges \| 4 MB STP 687330124422 (rev1).stp \| 979.1 KB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	30	0.5	Vertical	21.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687333124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687333124422 (rev1).pdf \| 247.5 KB IGS Download_IGES_687333124422 (rev1).iges \| 4.3 MB STP Download_STP_687333124422 (rev1).stp \| 1 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	33	0.5	Vertical	22.9	0.5	50	Tape and Reel with Cap	20	max.	687001
687334124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687334124422 (rev1).pdf \| 252.8 KB IGS Download_IGES_687334124422 (rev1).iges \| 4.4 MB STP 687334124422 (rev1).stp \| 1.1 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	34	0.5	Vertical	23.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687340124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687340124422 (rev1).pdf \| 282.4 KB IGS Download_IGES_687340124422 (rev1).iges \| 4.9 MB STP 687340124422 (rev1).stp \| 1.2 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	40	0.5	Vertical	26.4	0.5	50	Tape and Reel with Cap	20	max.	687001
687350124422	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev22a).lbr \| 1.9 MB CAD files ZIP 3D 3D_687350124422 (rev1).pdf \| 332 KB IGS Download_IGES_687350124422 (rev1).iges \| 5.8 MB STP 687350124422 (rev1).stp \| 1.4 MB Others ZIP PCG Precaution_WE-FPC_6861xx(14122;14422;183422;183522;183822)_6871xx(14022;14522;183622;183722)_6873xx124422 (rev1).pdf \| 320.9 KB Download all 7 files as zip archive ZIP	50	0.5	Vertical	31.4	0.5	50	Tape and Reel with Cap	20	max.	687001

Order Code	Datasheet
687306124422	SPEC
687308124422	SPEC
687310124422	SPEC
687312124422	SPEC
687314124422	SPEC
687316124422	SPEC
687318124422	SPEC
687320124422	SPEC
687322124422	SPEC
687324124422	SPEC
687326124422	SPEC
687328124422	SPEC
687330124422	SPEC
687333124422	SPEC
687334124422	SPEC
687340124422	SPEC
687350124422	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples

Use with

WR-FFC 0.50 mm Flat Flexible Cable Type 1 (Contacts on same side)

WR-FFC 0.50 mm Flat Flexible Cable Type 2 (Contacts opposite)

Suitable for

WR-FFC 0.50 mm Folding Flat Flexible Cable

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-FPC ZIF Connectors & Flat Flexible Cables
