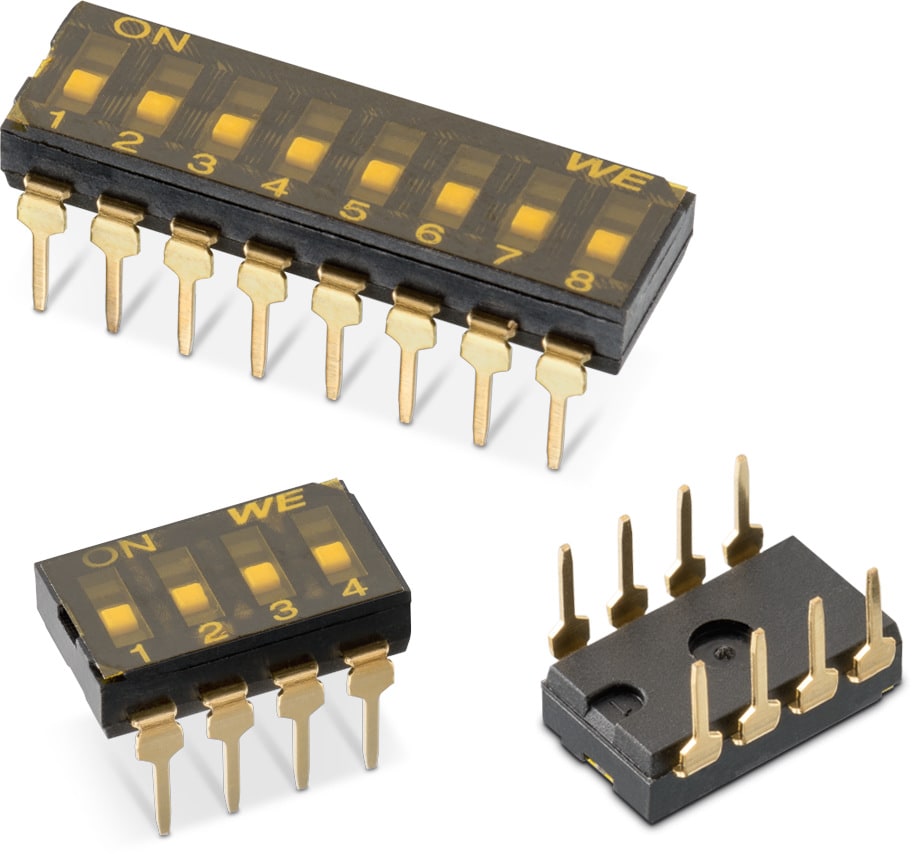

WS-DITV Small Compact THT Flat Actuator with Top Tape 2.54 mm

Properties
Cover Flammability Rating UL94 V-0
Cover Color Black
Base Material PA9T
Base Flammability Rating UL94 V-0
Base Color Black
Actuator Material PA66
Actuator Flammability Rating UL94 V-0
Actuator Color White
Contact Material Copper Alloy
Contact Plating Gold
Terminal Material Copper Alloy
Terminal Plating Gold
IR 25 mA
VR 24 V (DC)
IR 100 mA
VR 50 V (DC)
Contact Resistance Initial 50 mΩ
Contact Resistance After Life Test 100 mΩ
RISO 100 MΩ
Withstanding Voltage 500 V (AC)
Actuator Type Flat Type
Switch Position Off
Washable Yes
Material Properties
Cover Material PA9T
Cover Flammability Rating UL94 V-0
Cover Color Black
Base Material PA9T
Base Flammability Rating UL94 V-0
Base Color Black
Actuator Material PA66
Actuator Flammability Rating UL94 V-0
Actuator Color White
Contact Material Copper Alloy
Contact Plating Gold
Terminal Material Copper Alloy
Terminal Plating Gold
Mechanical Properties
Operation Force 600 g
Electrical Life 2000 Cycles
Actuator Type Flat Type
Switch Position Off
General Information
Operating Temperature -40 up to +85 °C
Washable Yes
Packaging Properties
Packaging Tube

Products

Order Code SPEC Downloads Poles Qty. Design Kit Samples
418127160901
IGE STE 3D ALT EAG CAD 1 145 499001
418127160902
IGE STE 3D ALT EAG CAD 2 84 499001
418127160903
IGE STE 3D ALT EAG CAD 3 59 499001
418127160904
IGE STE 3D ALT EAG CAD 4 45 499001
418127160905
IGE STE 3D ALT EAG CAD 5 37
418127160906
IGE STE 3D ALT EAG CAD 6 31 499001
418127160907
IGE STE 3D ALT EAG CAD 7 27
418127160908
IGE STE 3D ALT EAG CAD 8 24 499001
418127160909
IGE STE 3D ALT EAG CAD 9 21
418127160910
IGE STE 3D ALT EAG CAD 10 19 499001
418127160912
IGE STE 3D ALT EAG CAD 12 16
Order Code SPEC
418127160901
418127160902
418127160903
418127160904
418127160905
418127160906
418127160907
418127160908
418127160909
418127160910
418127160912
Samples
Order Code SPEC Downloads Poles Qty. Design Kit Samples
