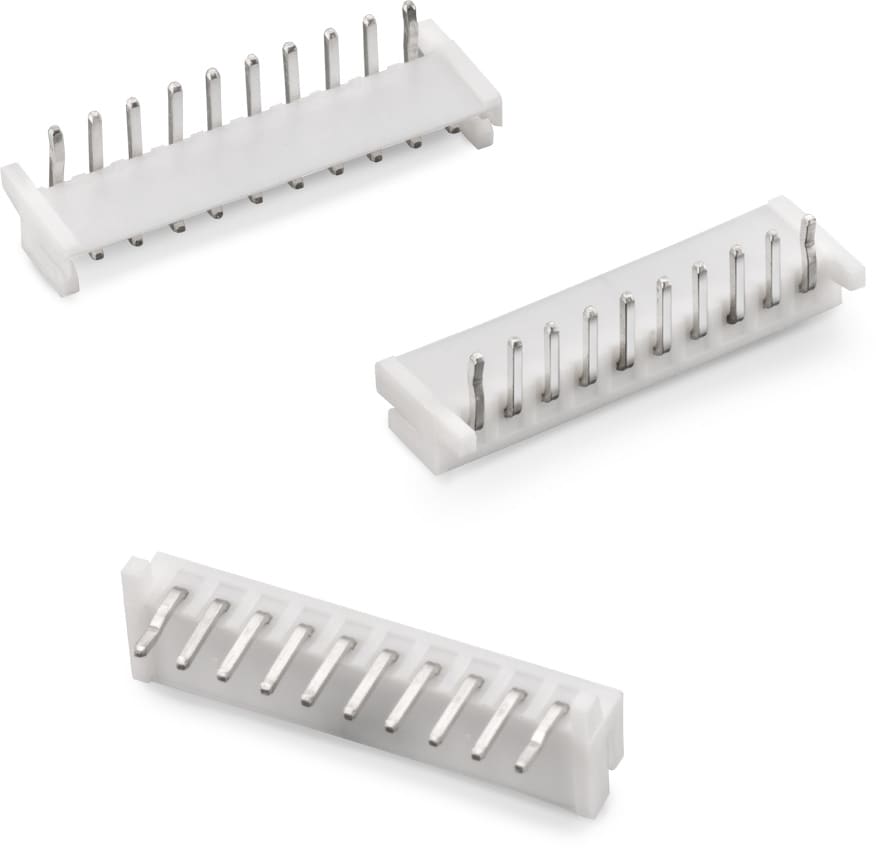

WR-WTB 2.50 mm “J” Type Male Horizontal Shrouded Header

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Color	White
Contact Material	Brass
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-25 °C up to +85 °C
Compliance	RoHS
I_R	3 A
Working Voltage	250 V (AC)
Withstanding Voltage	800 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2.5 mm
Gender	Male
Type	Horizontal

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples
68800211722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 68800211722_1 (rev1).pdf \| 39.4 KB IGS Download_IGES_68800211722 (rev1).iges \| 637.1 KB STP 68800211722 (rev1).stp \| 256.3 KB Download all 6 files as zip archive ZIP	2	2.5	Male	Horizontal	THT	3	250	PCB	20	max.	7.5	Bag	645001
68800311722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_68800311722 (rev1).pdf \| 49.8 KB IGS Download_IGES_68800311722 (rev1).iges \| 840.6 KB STP 68800311722 (rev1).stp \| 340.6 KB Download all 6 files as zip archive ZIP	3	2.5	Male	Horizontal	THT	3	250	PCB	20	max.	10	Bag	645001
68800411722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_68800411722 (rev1).pdf \| 54.2 KB IGS Download_IGES_68800411722 (rev1).iges \| 930.2 KB STP 68800411722 (rev1).stp \| 378.2 KB Download all 6 files as zip archive ZIP	4	2.5	Male	Horizontal	THT	3	250	PCB	20	max.	12.5	Bag	645001
68800511722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_68800511722 (rev1).pdf \| 59 KB IGS Download_IGES_68800511722 (rev1).iges \| 1020.1 KB STP 68800511722 (rev1).stp \| 415.9 KB Download all 6 files as zip archive ZIP	5	2.5	Male	Horizontal	THT	3	250	PCB	20	max.	15	Bag	645001
68800611722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_68800611722 (rev1).pdf \| 64.3 KB IGS Download_IGES_68800611722 (rev1).iges \| 1.1 MB STP 68800611722 (rev1).stp \| 453.3 KB Download all 6 files as zip archive ZIP	6	2.5	Male	Horizontal	THT	3	250	PCB	20	max.	17.5	Bag	645001
68800711722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_68800711722 (rev1).pdf \| 69 KB IGS Download_IGES_68800711722 (rev1).iges \| 1.2 MB STP 68800711722 (rev1).stp \| 491 KB Download all 6 files as zip archive ZIP	7	2.5	Male	Horizontal	THT	3	250	PCB	20	max.	20	Bag	645001
68800811722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_68800811722 (rev1).pdf \| 73.6 KB IGS Download_IGES_68800811722 (rev1).iges \| 1.3 MB STP 68800811722 (rev1).stp \| 529.1 KB Download all 6 files as zip archive ZIP	8	2.5	Male	Horizontal	THT	3	250	PCB	20	max.	22.5	Bag	612690 645001
68800911722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 3D_68800911722 (rev1).pdf \| 78.3 KB IGS Download_IGES_68800911722 (rev1).iges \| 1.3 MB STP 68800911722 (rev1).stp \| 566.9 KB Download all 6 files as zip archive ZIP	9	2.5	Male	Horizontal	THT	3	250	PCB	20	max.	25	Bag	645001
68801011722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 68801011722_1 (rev1).pdf \| 82.8 KB IGS Download_IGES_68801011722 (rev1).iges \| 1.4 MB STP 68801011722 (rev1).stp \| 605 KB Download all 6 files as zip archive ZIP	10	2.5	Male	Horizontal	THT	3	250	PCB	20	max.	27.5	Bag	645001

Order Code	Datasheet
68800211722	SPEC
68800311722	SPEC
68800411722	SPEC
68800511722	SPEC
68800611722	SPEC
68800711722	SPEC
68800811722	SPEC
68800911722	SPEC
68801011722	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-WTB 2.50 mm “J” Type Female Terminal Housing

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
