| General Information | |
|---|---|
| Operating Temperature | -55 °C up to +155 °C |
| Material Properties | |
|---|---|
| Insulator Material | PTFE |
| Insulator Color | White |
| Center Contact Material | Brass |
| Center Contact Plating | Gold, min. 0.76µm over Nickel |
| Body Material | Brass & Beryllium Copper |
| Body Plating | Gold, min. 0.076µm over Nickel |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | Gold, min. 0.076µm over Nickel |
| Electrical Properties | |
|---|---|
| f | DC~6 GHz |
| Packaging Properties | |
|---|---|
| Packaging | Bag |
Products
| Order Code | Datasheet | Downloads | Connector Type 1 | Connector Type 2 | Gender 1 | Gender 2 | Orientation Type | Operating Temperature | Samples |
|---|---|---|---|---|---|---|---|---|---|

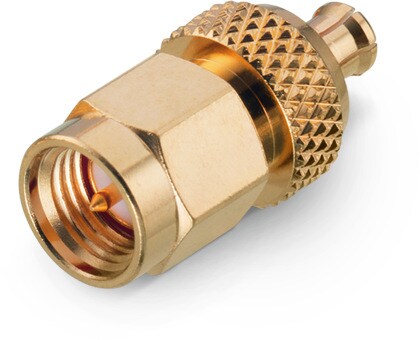

| 64403206231000 | SPEC | 3 files | SMA | MCX | Plug | Plug | Straight | -55 °C up to +155 °C |
| Order Code | Datasheet |
|---|---|
| 64403206231000 | SPEC |
