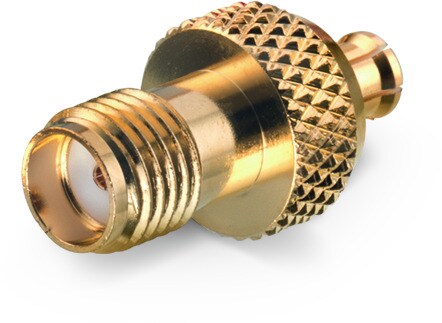

WR-ADPT SMA Jack to MCX Plug

Material Properties
Insulator Material PTFE
Insulator Color White
Center Contact Material Beryllium Copper
Center Contact Plating Gold, min. 0.76µm over Nickel
Body Material Brass & Beryllium Copper
Body Plating Gold, min. 0.076µm over Nickel
General Information
Operating Temperature -55 up to +155 °C
Electrical Properties
f DC~6 GHz
Packaging Properties
Packaging Bag

Products

Order Code Data­sheet Downloads Connector Type 1 Connector Type 2 Gender 1 Gender 2 Orientation Type Operating Temperature Samples
64403106231000
IGE STE 3D SMA MCX Jack Plug Straight -55 up to +155 °C
Order Code Data­sheet
64403106231000
Samples
Order Code Data­sheet Downloads Connector Type 1 Connector Type 2 Gender 1 Gender 2 Orientation Type Operating Temperature Samples
