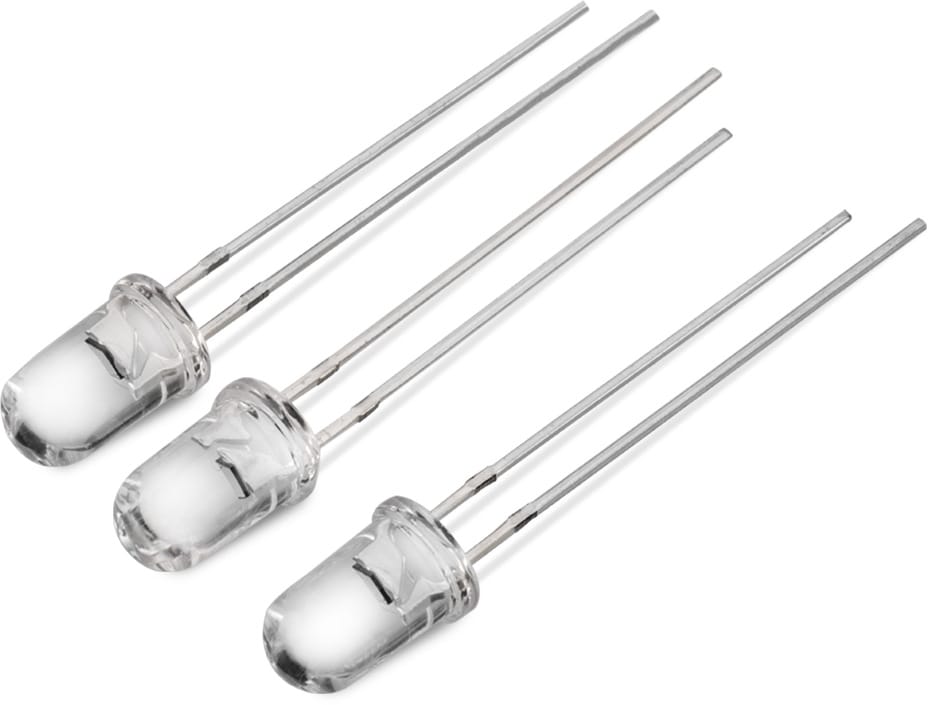

WL-TDRW THT Photodiode Round Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

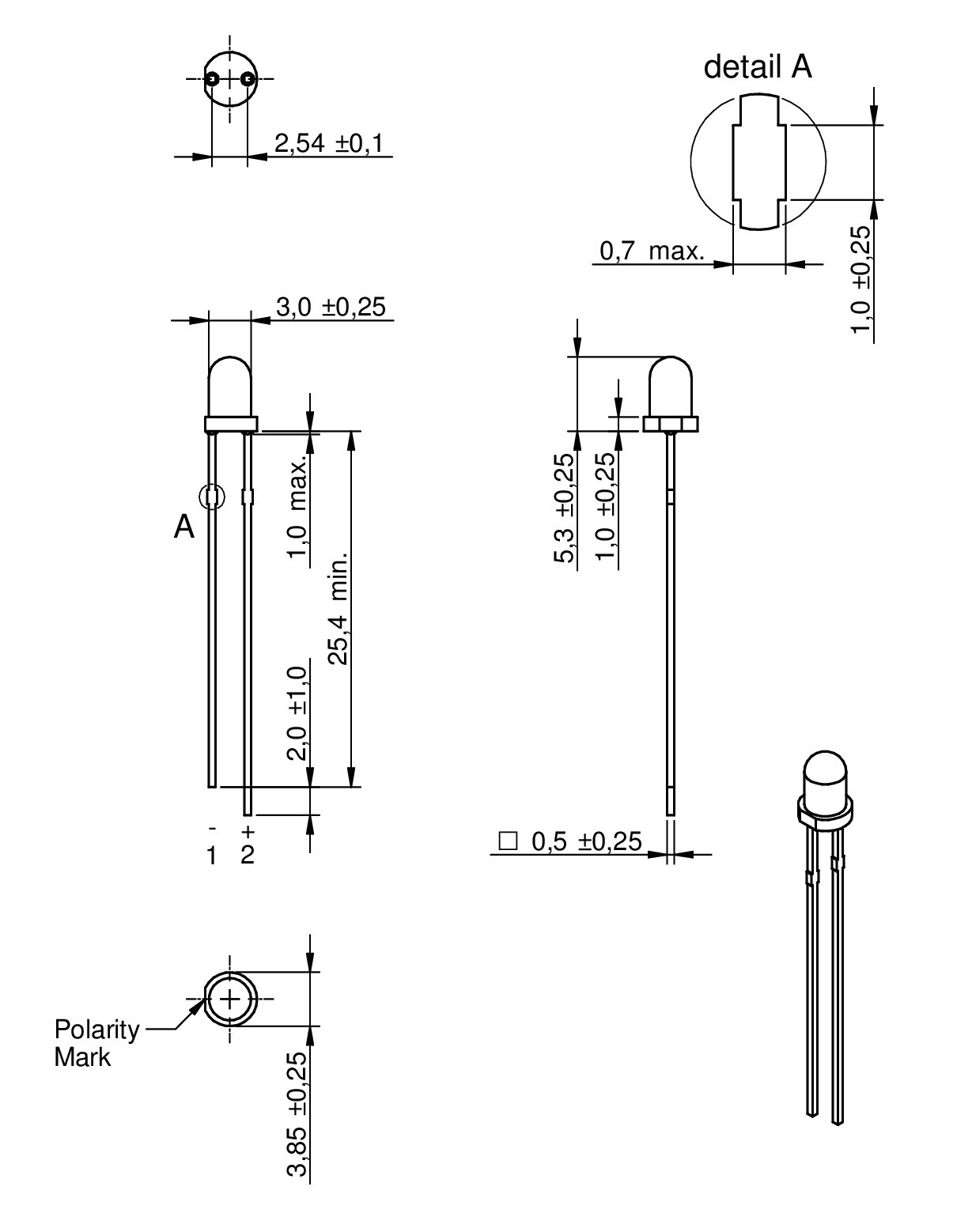

3 mm - without stopper		3	3.85	5.3	THT

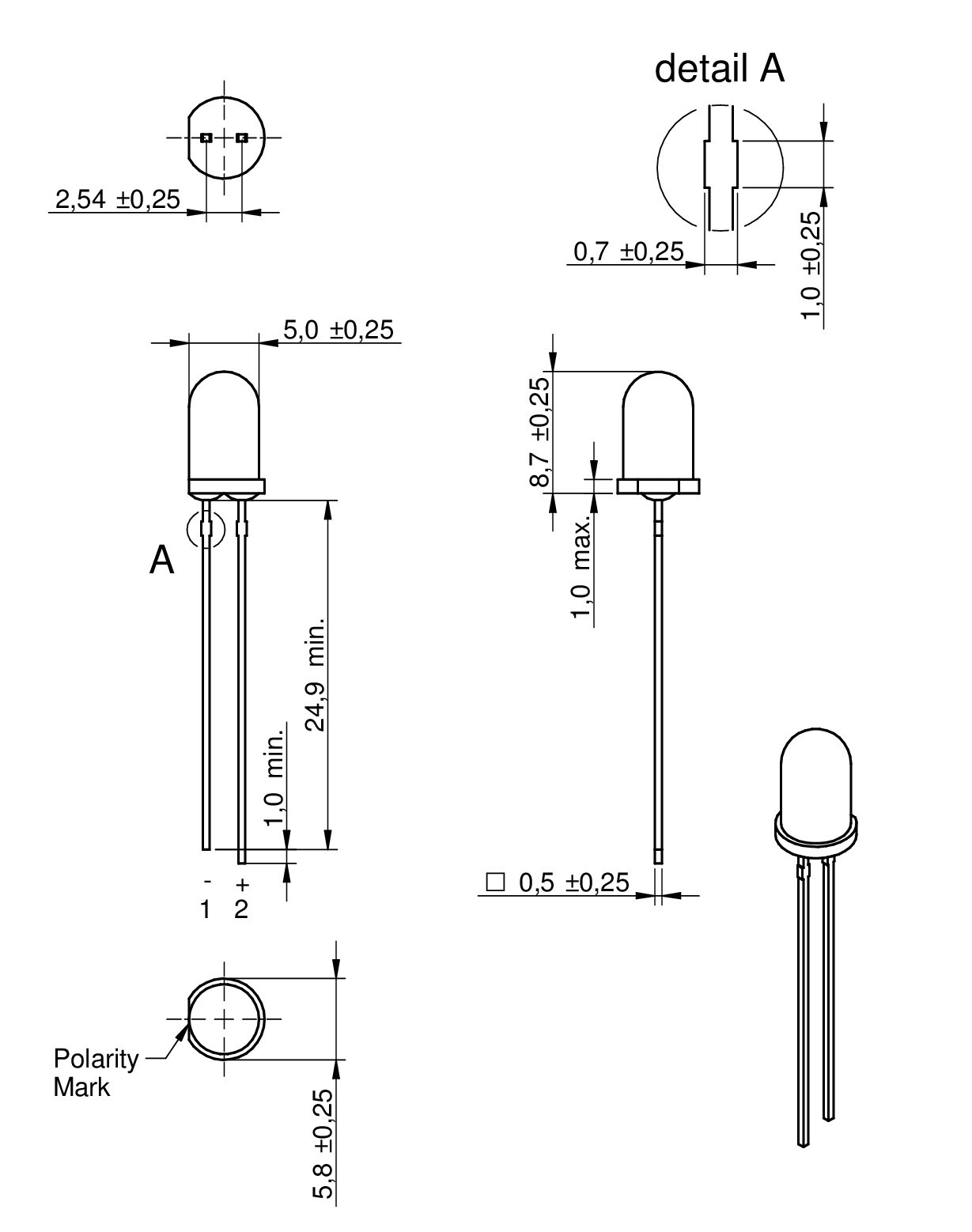

5 mm - without stopper		5.8	5	8.7	THT

Characteristics

Standard THT 5mm package size
High reliability
Detector for visible and infrared light
Fast switching times
Low power consumption
High sensitivity

Applications

Touch screen
Cleaning roboter
Remote controller
Optoelectronic switch
Video camera
Security systems

Products

All

3 mm - without stopper

5 mm - without stopper

Order Code	Datasheet	Simulation	Downloads	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	I_{P typ.} (µA)	I_{D max.} (nA)	2θ_{50% typ.} (°)	Samples
1540051EA3590	SPEC		5 files EDA models: Components ZIP ALT Altium_WL-TDRW (rev22c).IntLib \| 45.5 KB CDS Cadence_WL-TDRW (rev20a).zip \| 124.7 KB EAG Eagle_WL-TDRW (rev20b).lbr \| 17.7 KB CAD files ZIP IGS Download_IGS_1540051EA3590 (rev1).igs \| 231 KB STP Download_STP_1540051EA3590 (rev1).stp \| 49.4 KB Download all 5 files as zip archive ZIP	940	400	1100	28	30	35
1540031EA4590	SPEC		5 files EDA models: Components ZIP ALT Altium_WL-TDRW (rev22c).IntLib \| 45.5 KB CDS Cadence_WL-TDRW (rev20a).zip \| 124.7 KB EAG Eagle_WL-TDRW (rev20b).lbr \| 17.7 KB CAD files ZIP IGS Download_IGS_1540031EA4590 (rev1).igs \| 233.8 KB STP Download_STEP_1540031EA4590 (rev1).stp \| 48.4 KB Download all 5 files as zip archive ZIP	940	400	1100	40	100	45

Order Code	Datasheet	Simulation
1540051EA3590	SPEC
1540031EA4590	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	λ_{Peak typ.} (nm)	λ_min. (nm)	λ_max. (nm)	I_{P typ.} (µA)	I_{D max.} (nA)	2θ_{50% typ.} (°)	Samples
