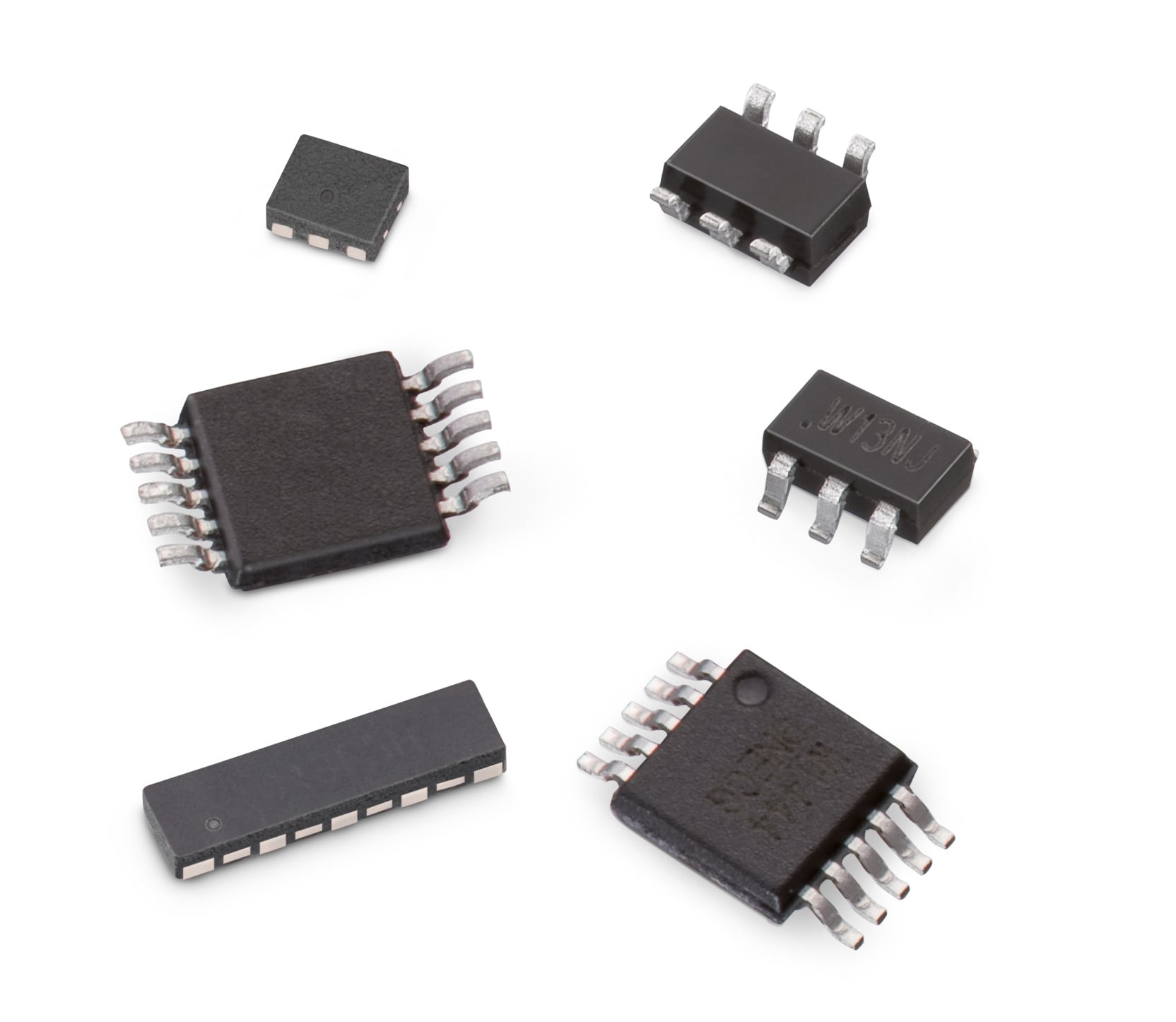

WE-TVS TVS Diode – Super Speed Series

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Mount
SOT23-6L			2.8	2.9	1.16	SMT
MSOP-10L			4.9	3	0.975	SMT
MSOP-8L			4.9	3	0.975	SMT

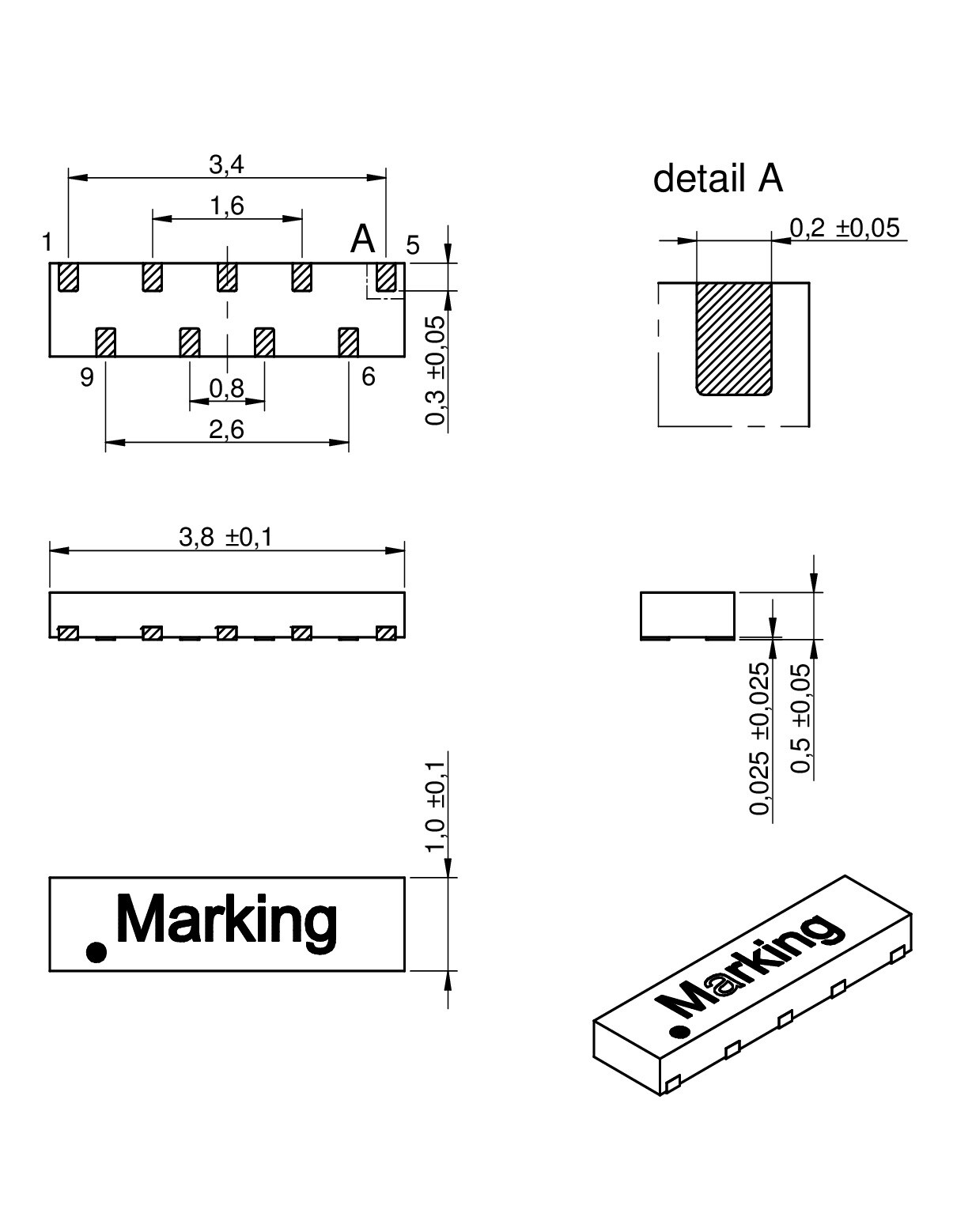

DFN3810-9L			3.8	1	0.5	SMT

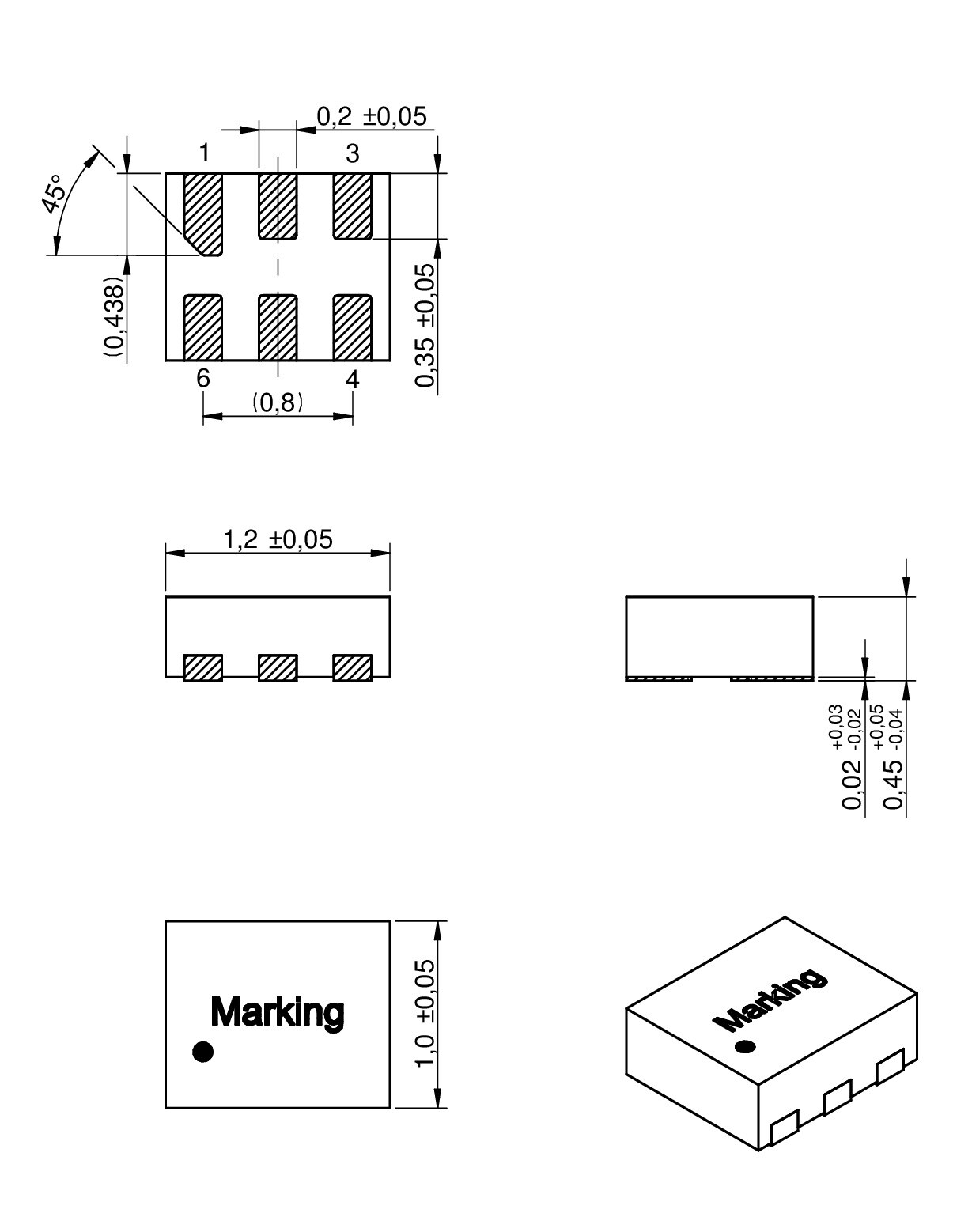

DFN1210-6L			1.2	1	0.45	SMT

Characteristics

Fast turn-on
Low clamping voltage
Very low capacitance
Rail to Rail protection
Small package
Epoxy flame resistant UL94-V0

Reference Designs

RD016 Reference Design Gigabit Ethernet Front End
RD022 GB PoE+-Ethernet-USB“ adapter for industrial use with an EMC perspective

Applications

Super Speed data lines
HDMI 1.3/1.4/2.0, DVI
DisplayPort
USB 3.1 Gen 1 (5Gb/s)
SATA and eSATA
GBit LAN
Thunderbolt
LVDS
ESD protection in accordance with EN 61000-4-2
– 8 kV contact discharge
– 15 kV air discharge

Application Notes

Products

All

SOT23-6L

MSOP-10L

MSOP-8L

DFN3810-9L

DFN1210-6L

Order Code	Datasheet	Simulation	Downloads	Channels	Polarity	V_{Ch max.} (V)	I_{Ch Leak max.} (µA)	V_{BR min.} (V)	C_{Ch typ.} (pF)	I_Peak (A)	V_{Ch Clamp ESD typ.} (V)	V_{ESD Air} (kV)	V_{ESD Contact} (kV)	Application	Filter Bag	Filter Stick	Design Kit	Samples
824012823	SPEC		6 files EDA models: Components ZIP ALT Altium_WE-TVS (rev22b).IntLib \| 555.5 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN1210-6L (rev1).igs \| 998.9 KB STP Download_STP_WE-TVS-DFN1210-6L (rev1).stp \| 476.1 KB Download all 6 files as zip archive ZIP	2	Unidirectional	3.3	0.5	4.5	0.18	3	13	15	8	USB 3.1 Gen1&2 (5Gb/s, 10Gb/s), USB 3.1 Type C, Display Port (1.1, 1.2, 1.3, 1.4), HDMI 2.0	82931061 82931101	82931060 82931100	823999
824014	SPEC		6 files EDA models: Components ZIP ALT Altium_WE-TVS (rev22b).IntLib \| 555.5 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB CAD files ZIP IGS WE-TVS_Super_Speed_SOT23-6L_HS (rev1).igs \| 547.4 KB STP WE-TVS_Super_Speed_SOT23-6L_HS (rev1).stp \| 185.7 KB Download all 6 files as zip archive ZIP	4+1	Unidirectional	5	–	6	0.55	4	–	16	10	HDMI 1.3, DVI & DisplayPort	–	–	823999
82401444	SPEC		6 files EDA models: Components ZIP ALT Altium_WE-TVS (rev22b).IntLib \| 555.5 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB CAD files ZIP IGS WE-TVS_Super_Speed_MSOP-10L (rev1).igs \| 1 MB STP WE-TVS_Super_Speed_MSOP-10L (rev1).stp \| 352.2 KB Download all 6 files as zip archive ZIP	4+1	Unidirectional	5	–	6	0.55	5	–	16	10	HDMI 1.3, DVI & DisplayPort	–	–	823999
82401646	SPEC		6 files EDA models: Components ZIP ALT Altium_WE-TVS (rev22b).IntLib \| 555.5 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB CAD files ZIP IGS WE-TVS_Super_Speed_MSOP-8L (rev1).igs \| 846.5 KB STP WE-TVS_Super_Speed_MSOP-8L (rev1).stp \| 287.4 KB Download all 6 files as zip archive ZIP	6+1	Unidirectional	5	–	6	–	–	–	15	8	USB 3.0, HDMI 1.4	829993BAG	–	823999
824014883	SPEC		6 files EDA models: Components ZIP ALT Altium_WE-TVS (rev22b).IntLib \| 555.5 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN3810-9L (rev1).igs \| 1.3 MB STP Download_STP_WE-TVS-DFN3810-9L (rev1).stp \| 563.7 KB Download all 6 files as zip archive ZIP	8	Unidirectional	3.3	–	4.5	0.5	5	–	15	12	USB 3.1 Gen1 (5Gb/s), USB 3.1 Type C, Display Port, HDMI 2.0, Ethernet 1Gb/s, Ethernet 10Gb/s	–	–	823999
824014885	SPEC		6 files EDA models: Components ZIP ALT Altium_WE-TVS (rev22b).IntLib \| 555.5 KB ZUK Cadstar_WE-TVS (rev19a).zip \| 12.3 KB CDS Cadence_WE-TVS (rev22a).zip \| 2.6 MB EAG Eagle_WE-TVS (rev22a).lbr \| 203.9 KB CAD files ZIP IGS Download_IGS_WE-TVS-DFN3810-9L (rev1).igs \| 1.3 MB STP Download_STP_WE-TVS-DFN3810-9L (rev1).stp \| 563.7 KB Download all 6 files as zip archive ZIP	8	Unidirectional	5	–	6	0.5	5	–	15	15	USB 3.1 Gen1 (5Gb/s), USB 3.1 Type C, Display Port, HDMI 2.0, Ethernet 1Gb/s, Ethernet 10Gb/s	82931061 82931101	82931060 82931100	–

Order Code	Datasheet	Simulation
824012823	SPEC
824014	SPEC
82401444	SPEC
82401646	SPEC
824014883	SPEC
824014885	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Channels	Polarity	V_{Ch max.} (V)	I_{Ch Leak max.} (µA)	V_{BR min.} (V)	C_{Ch typ.} (pF)	I_Peak (A)	V_{Ch Clamp ESD typ.} (V)	V_{ESD Air} (kV)	V_{ESD Contact} (kV)	Application	Filter Bag	Filter Stick	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit ESD PROTECTION

Filter Bag USB 3.0 Type A EMC

Filter Stick USB 3.1 Type C 100W EMC

Filter Bag USB 3.1 Type C 100W EMC

Filter Stick USB 3.1 Type C 60W EMC

Filter Bag USB 3.1 Type C 60W EMC
