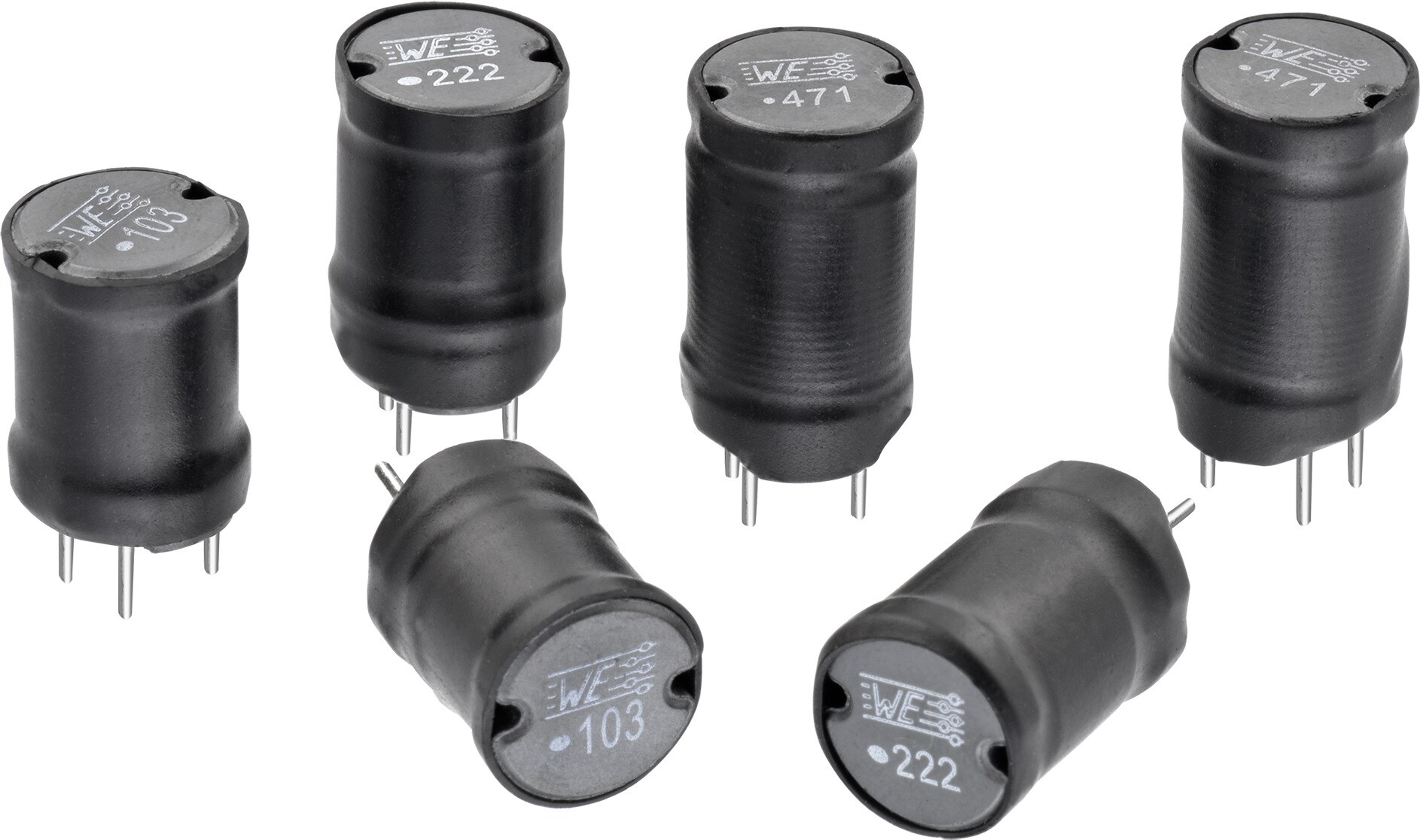

WE-TIF Radial Leaded Wire Wound Inductor with 4 Pins

Unshielded

Size L
(mm)
W
(mm)
H
(mm)
Mount
1014 11 11 15 THT
1016 11 11 17 THT
1018 11 11 19 THT

Characteristics

  • Radial through-hole inductor
  • High saturation core material
  • Maximum current up to 3.1 A
  • 2 additional pins for high mechanical stability

Applications

  • Signal filtering
  • EMI and power supply filter
  • DC/DC converters
  • Switching power
  • Supplies for small and medium voltage
  • Power supply for LED
  • Nearfield applications

Products

All
1014
1016
1018
Order Code SPEC Simu­lation Downloads L1
(µH)
IR 1
(A)
ISAT 1
(A)
RDC1 typ
(mΩ)
RDC1 max.
(mΩ)
fres 1
(MHz)
Mount Samples
7447211101
ALT EAG CAD LTS PSP CAD CAD 100 2.2 2.8 100 115 4 THT
7447211221
ALT EAG CAD LTS PSP CAD CAD 220 1.47 1.9 220 250 2.5 THT
7447211331
ALT EAG CAD LTS PSP CAD CAD 330 1.2 1.55 320 370 2 THT
7447211471
ALT EAG CAD LTS PSP CAD CAD 470 1 1.35 460 530 1.6 THT
7447211681
ALT EAG CAD LTS PSP CAD CAD 680 0.83 1.1 660 760 1.3 THT
7447211102
ALT EAG CAD LTS PSP CAD CAD 1000 0.68 0.92 960 1100 1 THT
7447211222
ALT EAG CAD LTS PSP CAD CAD 2200 0.46 0.63 2100 2400 0.65 THT
7447211332
ALT EAG CAD LTS PSP CAD CAD 3300 0.37 0.52 3100 3600 0.5 THT
7447211472
ALT EAG CAD LTS PSP CAD CAD 4700 0.31 0.43 4400 5100 0.41 THT
7447211682
ALT EAG CAD LTS PSP CAD CAD 6800 0.26 0.36 6400 7400 0.33 THT
7447211103
ALT EAG CAD LTS PSP CAD CAD 10000 0.21 0.3 9300 10700 0.26 THT
7447221101
ALT EAG CAD LTS PSP CAD CAD 100 2.45 2.75 85 100 4 THT
7447221221
ALT EAG CAD LTS PSP CAD CAD 220 1.65 1.9 190 220 2.5 THT
7447221331
ALT EAG CAD LTS PSP CAD CAD 330 1.35 1.55 280 320 2 THT
7447221471
ALT EAG CAD LTS PSP CAD CAD 470 1.1 1.3 400 460 1.6 THT
7447221681
ALT EAG CAD LTS PSP CAD CAD 680 0.9 1.1 580 670 1.3 THT
7447221102
ALT EAG CAD LTS PSP CAD CAD 1000 0.75 0.9 850 980 1 THT
7447221222
ALT EAG CAD LTS PSP CAD CAD 2200 0.5 0.61 1850 2100 0.65 THT
7447221332
ALT EAG CAD LTS PSP CAD CAD 3300 0.4 0.5 2800 3200 0.5 THT
7447221472
ALT EAG CAD LTS PSP CAD CAD 4700 0.34 0.42 4000 4600 0.41 THT
7447221682
ALT EAG CAD LTS PSP CAD CAD 6800 0.28 0.35 5700 6600 0.33 THT
7447221103
ALT EAG CAD LTS PSP CAD CAD 10000 0.23 0.29 8400 9700 0.26 THT
7447231101
ALT EAG CAD LTS PSP CAD CAD 100 2.6 3.1 75 90 3.6 THT
7447231221
ALT EAG CAD LTS PSP CAD CAD 220 1.75 2.1 170 200 2.4 THT
7447231331
ALT EAG CAD LTS PSP CAD CAD 330 1.4 1.75 250 290 1.9 THT
7447231471
ALT EAG CAD LTS PSP CAD CAD 470 1.2 1.5 360 410 1.6 THT
7447231681
ALT EAG CAD LTS PSP CAD CAD 680 1 1.2 510 590 1.3 THT
7447231102
ALT EAG CAD LTS PSP CAD CAD 1000 0.8 1 750 860 1.1 THT
7447231222
ALT EAG CAD LTS PSP CAD CAD 2200 0.54 0.7 1650 1900 0.72 THT
7447231332
ALT EAG CAD LTS PSP CAD CAD 3300 0.43 0.55 2450 2800 0.58 THT
7447231472
ALT EAG CAD LTS PSP CAD CAD 4700 0.36 0.47 3500 4000 0.48 THT
7447231682
ALT EAG CAD LTS PSP CAD CAD 6800 0.3 0.39 5000 5750 0.4 THT
7447231103
ALT EAG CAD LTS PSP CAD CAD 10000 0.25 0.32 7400 8500 0.32 THT
