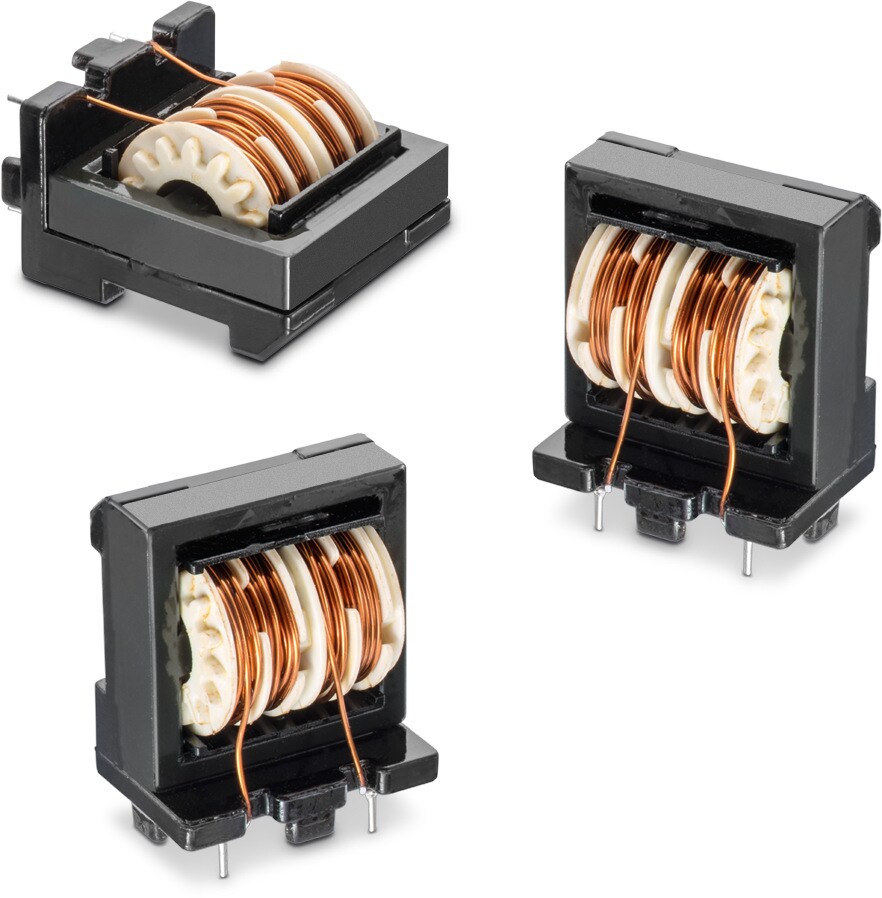

WE-FCL Common Mode Power Line Choke

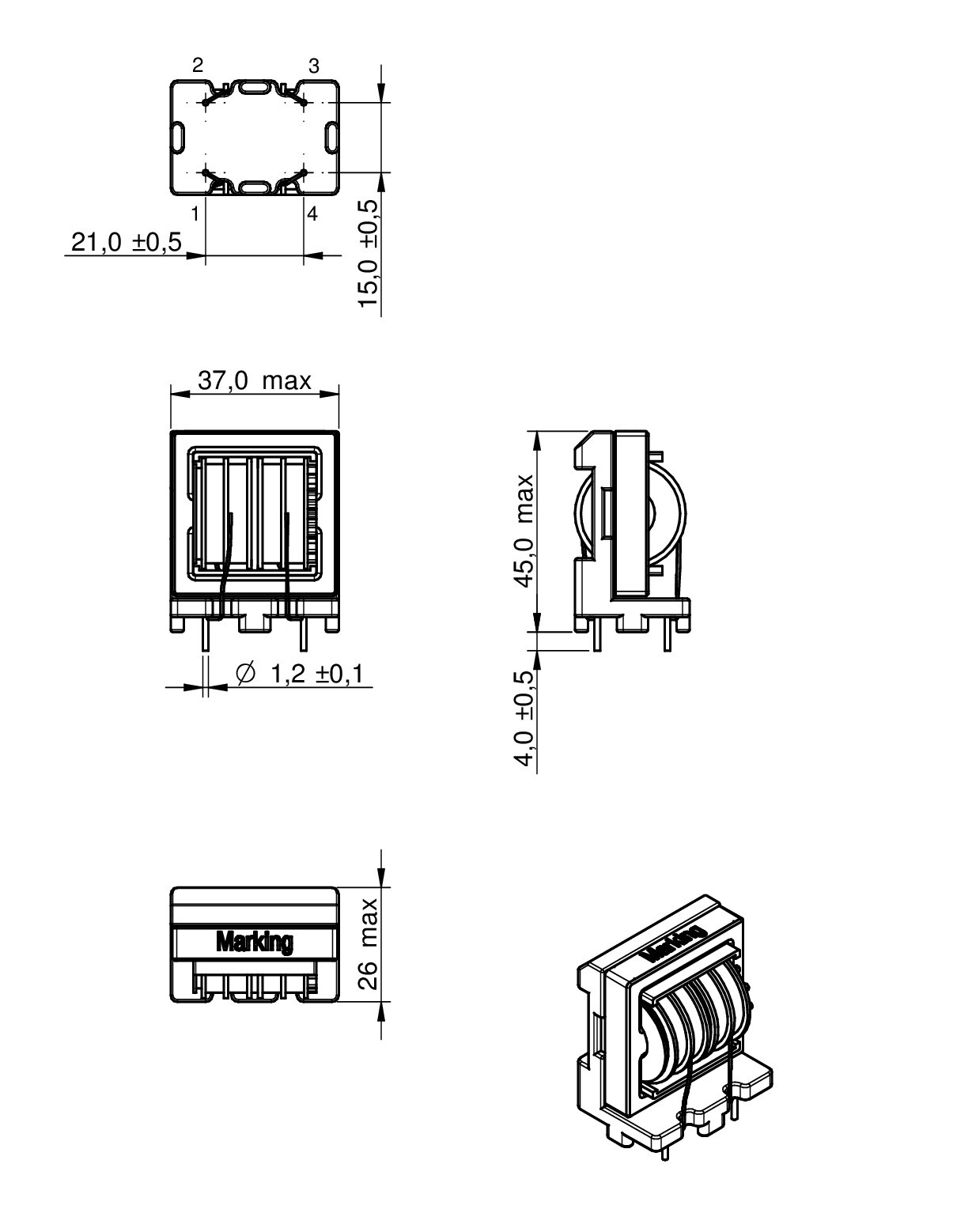

Size L
(mm)
W
(mm)
H
(mm)
Mount
ET35 37 26 45 THT

Characteristics

  • Approximate 1% stray inductance for symmetrical interference suppression
  • Closed rectangular ferrite core
  • Attenuation up to 75 dB with high rated current.
  • Inductance Tolerance: +50 %/-30%
  • Flammability corresponding to UL 94 V-0
  • Climatic category 40/125/21

Applications

  • Mains filter
  • Switched mode power supplies
  • Electronic ballast applications
  • Lighting
  • White goods

Products

ET35
Order Code Data­sheet Simu­lation Downloads IR 1
(A)
L1
(mH)
RDC1 max.
(mΩ)
VR
(V (AC))
VT
(V (AC))
Samples
744866103
STE ALT EAG CAD LTS PSP CAD SPA IGS 3.4 10 110 250 1500
744866104
STE ALT EAG CAD LTS PSP CAD SPA IGS 1.25 100 900 250 1500
744866223
STE ALT EAG CAD LTS PSP CAD SPA IGS 2.5 22 200 250 1500
744866392
STE ALT EAG CAD LTS PSP CAD SPA IGS 5 3.9 50 250 1500
744866563
STE ALT EAG CAD LTS PSP CAD SPA IGS 1.5 56 530 250 1500
744866692
STE ALT EAG CAD LTS PSP CAD SPA IGS 4 6.9 68 250 1500
Order Code Data­sheet Simu­lation
744866103
744866104
744866223
744866392
744866563
744866692
