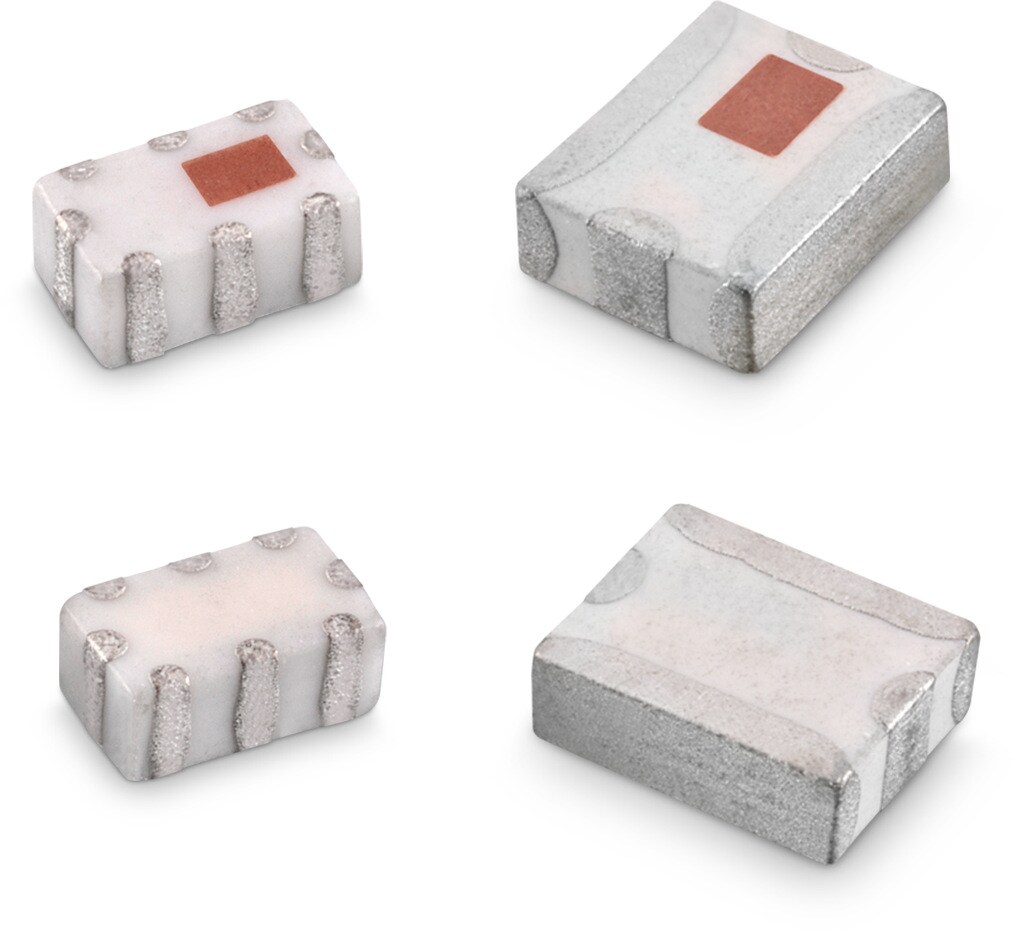

WE-BPF Multilayer Chip Band-Pass Filter

Size	Dimensions	L (mm)	W (mm)	H (mm)	Number of Terminals	Mount

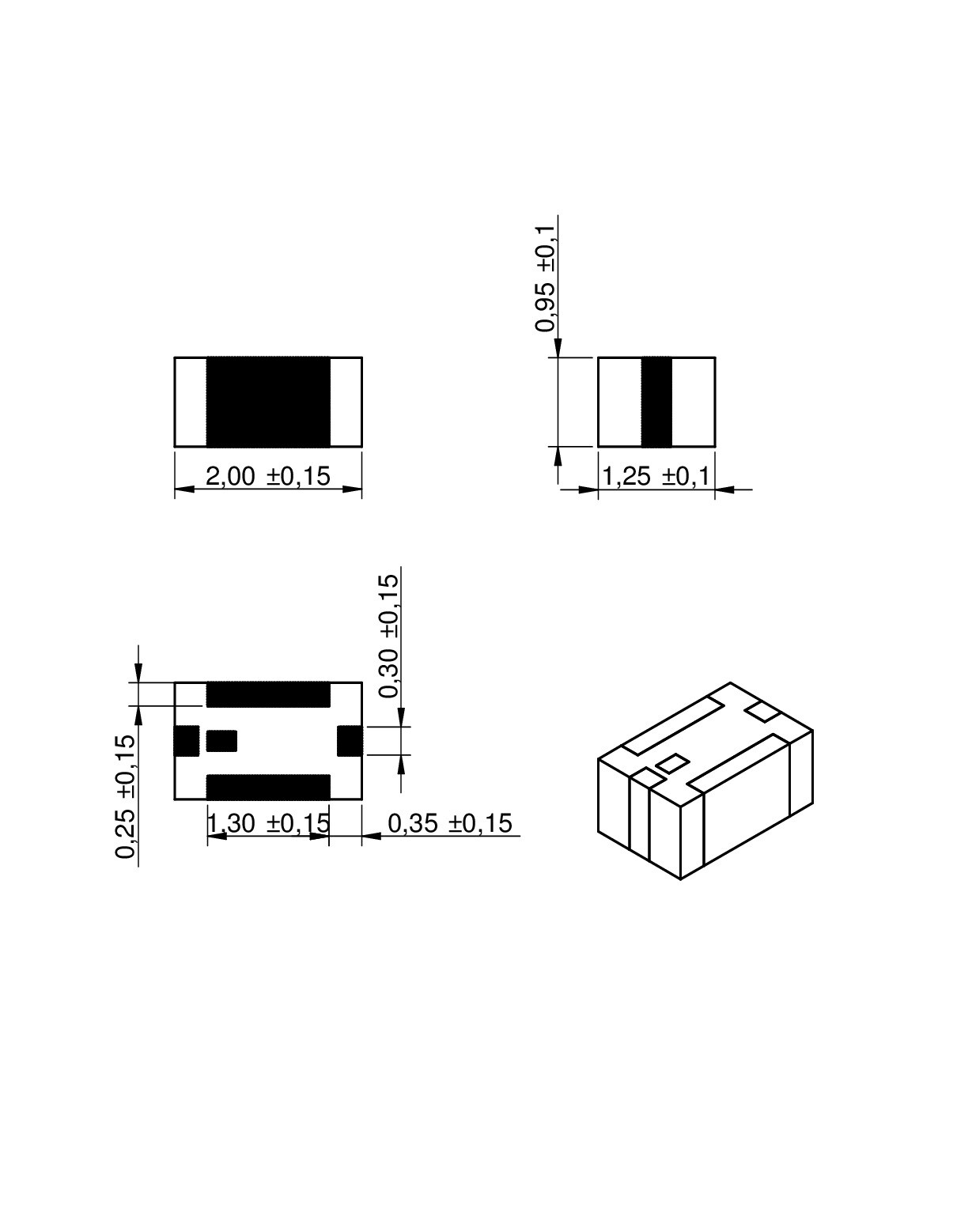

0805		2	1.25	0.95	1	SMT

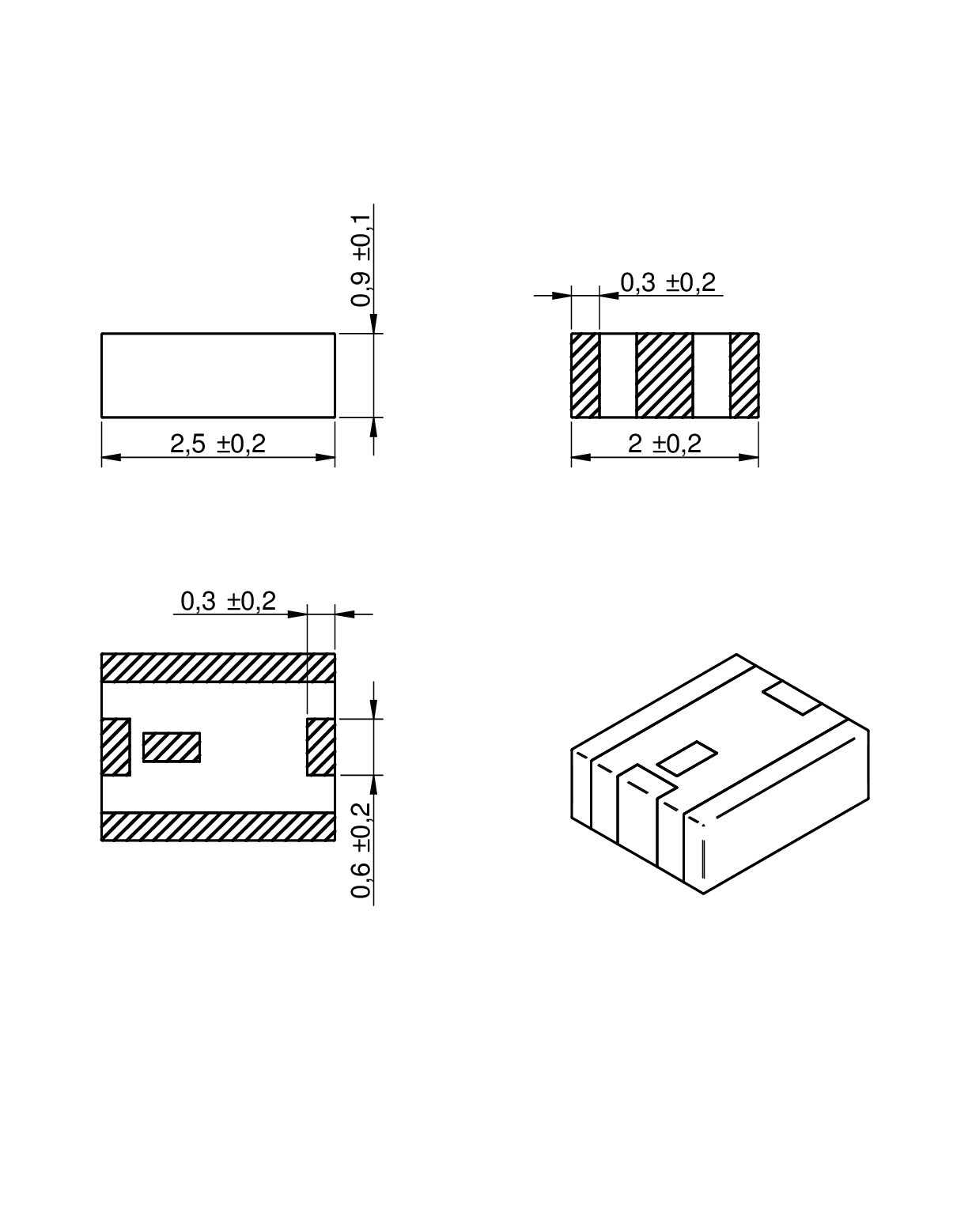

1008		2.5	2	0.9	5	SMT

Characteristics

Multilayer Chip Band-Pass Filter with low insertion loss and high attenuation
SMT component in the sizes 0805 and 1008
Guaranteed filter characteristics over a wide temperature range

Applications

RF-applications in the frequency range up to 6 GHz
Wireless communication systems like DECT, PACS, PHS, GSM, WLAN, Bluetooth,...

Products

All

0805

1008

Order Code	Datasheet	Simulation	Downloads	f	IL (dB)	VSWR	Samples
748323024	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-BPF (rev22a).IntLib \| 68.5 KB ZUK Cadstar_WE-BPF (rev19a).zip \| 4.8 KB CDS Cadence_WE-BPF (rev18a).zip \| 157 KB EAG Eagle_WE-BPF (rev19a).lbr \| 18 KB CAD files ZIP IGS WE-BPF_0805_BPF (rev1).igs \| 299.8 KB STP WE-BPF_0805_BPF (rev1).stp \| 113.6 KB Electric models ZIP S S-Parameter_748323024 (rev20a).S2P \| 103.9 KB Download all 7 files as zip archive ZIP	2400-2500 MHz	2.2	2
748351024	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-BPF (rev22a).IntLib \| 68.5 KB ZUK Cadstar_WE-BPF (rev19a).zip \| 4.8 KB CDS Cadence_WE-BPF (rev18a).zip \| 157 KB EAG Eagle_WE-BPF (rev19a).lbr \| 18 KB CAD files ZIP IGS WE-BPF_1008_BPF (rev1).igs \| 531.3 KB STP WE-BPF_1008_BPF (rev1).stp \| 161.9 KB Electric models ZIP S S-Parameter_748351024 (rev20a).S2P \| 104.1 KB Download all 7 files as zip archive ZIP	2400-2500 MHz	1.8	2
748351124	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-BPF (rev22a).IntLib \| 68.5 KB ZUK Cadstar_WE-BPF (rev19a).zip \| 4.8 KB CDS Cadence_WE-BPF (rev18a).zip \| 157 KB EAG Eagle_WE-BPF (rev19a).lbr \| 18 KB CAD files ZIP IGS WE-BPF_1008_BPF (rev1).igs \| 531.3 KB STP WE-BPF_1008_BPF (rev1).stp \| 161.9 KB Electric models ZIP S S-Parameter_748351124 (rev20a).S2P \| 103.6 KB Download all 7 files as zip archive ZIP	2400-2500 MHz	2.5	2
748323056	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-BPF (rev22a).IntLib \| 68.5 KB ZUK Cadstar_WE-BPF (rev19a).zip \| 4.8 KB CDS Cadence_WE-BPF (rev18a).zip \| 157 KB EAG Eagle_WE-BPF (rev19a).lbr \| 18 KB CAD files ZIP IGS WE-BPF_0805_BPF (rev1).igs \| 299.8 KB STP WE-BPF_0805_BPF (rev1).stp \| 113.6 KB Electric models ZIP S S-Parameter_748323056 (rev20a).S2P \| 104.3 KB Download all 7 files as zip archive ZIP	4900-5920 MHz	1.5	2
748323155	SPEC		7 files EDA models: Components ZIP ALT Altium_WE-BPF (rev22a).IntLib \| 68.5 KB ZUK Cadstar_WE-BPF (rev19a).zip \| 4.8 KB CDS Cadence_WE-BPF (rev18a).zip \| 157 KB EAG Eagle_WE-BPF (rev19a).lbr \| 18 KB CAD files ZIP IGS WE-BPF_0805_BPF (rev1).igs \| 299.8 KB STP WE-BPF_0805_BPF (rev1).stp \| 113.6 KB Electric models ZIP S S-Parameter_748323155 (rev20a).S2P \| 104.2 KB Download all 7 files as zip archive ZIP	5150-5875 MHz	1.5	2

Order Code	Datasheet	Simulation
748323024	SPEC
748351024	SPEC
748351124	SPEC
748323056	SPEC
748323155	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	f	IL (dB)	VSWR	Samples
