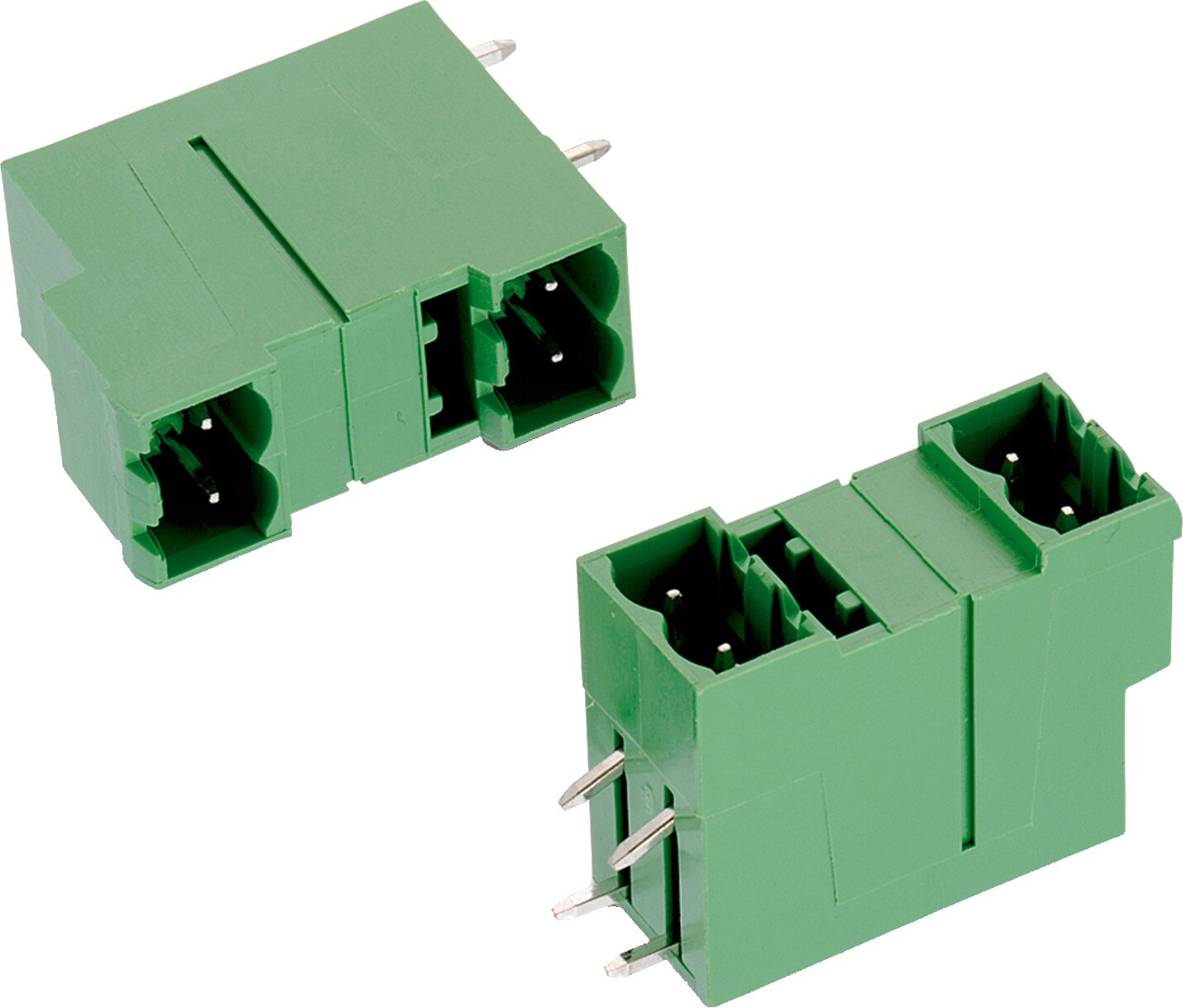

WR-TBL Series 3315 - 5.08 mm Double Level Horizontal Male PCB Header w. Flanges

General Information
Operating Temperature-40 °C up to +105 °C
Pitch5.08 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorGreen
Contact MaterialBrass
Contact PlatingTin
Electrical Properties
IR20 A
IR cULus20 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityType Samples
691331510004SPEC
6 files 4 Pluggable PCB No Horizontal
691331510006SPEC
6 files 6 Pluggable PCB No Horizontal
691331510008SPEC
6 files 8 Pluggable PCB No Horizontal
691331510010SPEC
6 files 10 Pluggable PCB No Horizontal
691331510012SPEC
7 files 12 Pluggable PCB No Horizontal
691331510016SPEC
6 files 16 Pluggable PCB No Horizontal
Order Code Data­sheet
691331510004SPEC
691331510006SPEC
691331510008SPEC
691331510010SPEC
691331510012SPEC
691331510016SPEC
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityType Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.

  • Highly customized products
  • Over 2000 standard articles
  • Available from stock without MOQ
  • Personalized modifications of standard parts for small quantities
  • Color & printing possibilities with MOQ for mass production

Personalized Modifications of Standard Terminal Blocks

Ink Jet

Printing for your terminal blocks (e.g. coding, personalization)

Coding

Installation of coding pins according to keying specification

Color Coding

For selected series according to your specifications (412B / 412MB / 413B)

Assembly

Rapid assembly of pin numbers according to your needs
