OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyTerminal BlocksProduct sub-familyRising Cage ClampPitchPitch 5.08 mmProduct seriesWR-TBL Series 2325 - 5.08 mm Double Level Horiz. Entry Modular w. Rising Cage, H=25.3 mm

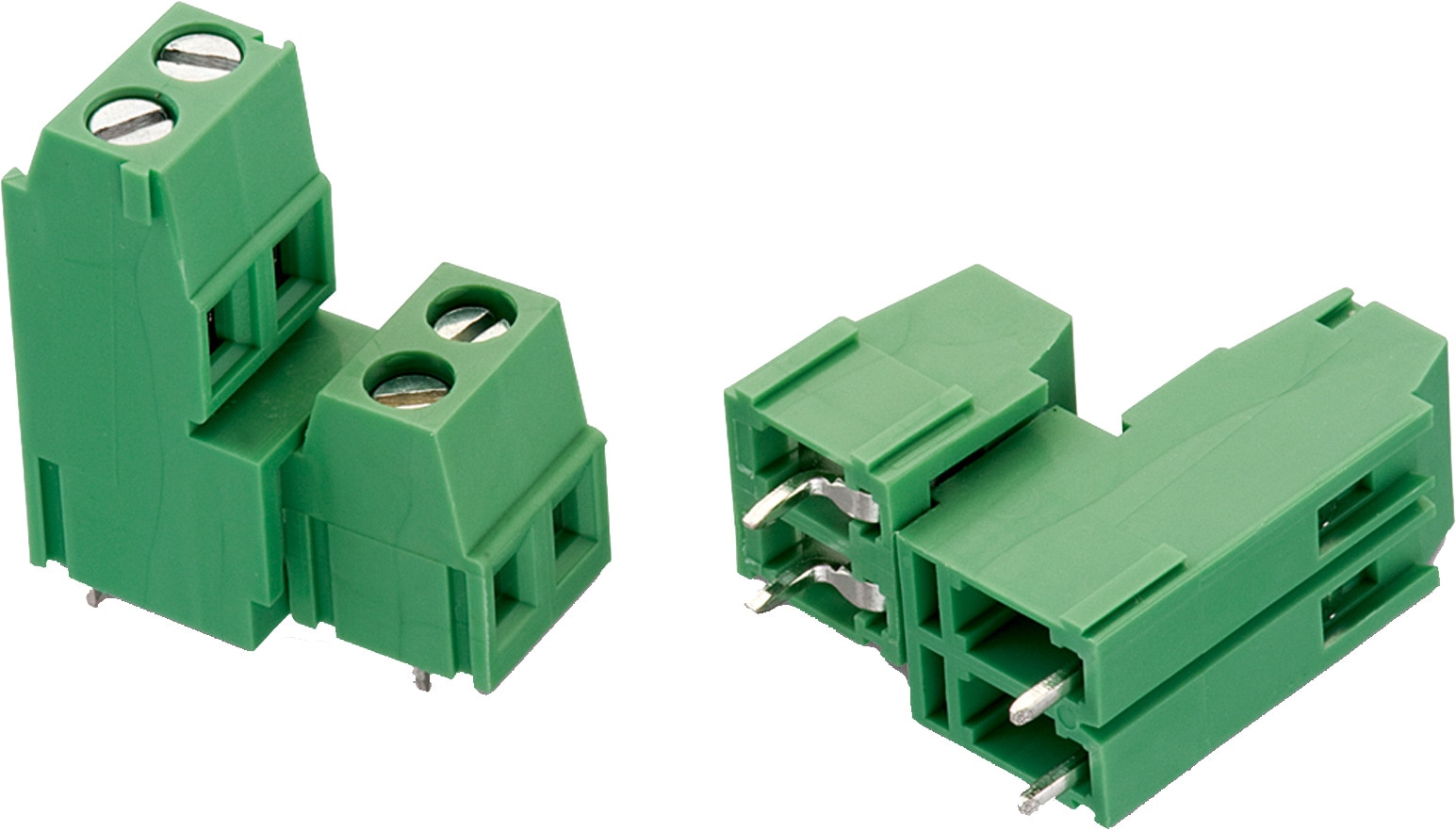

WR-TBL Series 2325 - 5.08 mm Double Level Horiz. Entry Modular w. Rising Cage, H=25.3 mm

General Information
Operating Temperature-40 °C up to +105 °C
ComplianceRoHS
Pitch5.08 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Contact PlatingTin
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialStainless Steel
Electrical Properties
IR cULus20 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Mechanical Properties
Wire Strip Length6 up to 7 (mm)
ScrewM2.5
Certification
cULus ApprovalE315414
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691232510004SPEC
6 files 4 Rising Cage Clamp PCB Yes Horizontal 12 to 22 (AWG) 3.31 to 0.326 (mm²)691001
691232510006SPEC
6 files 6 Rising Cage Clamp PCB Yes Horizontal 12 to 22 (AWG) 3.31 to 0.326 (mm²)
Order Code Data­sheet
691232510004SPEC
691232510006SPEC
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
