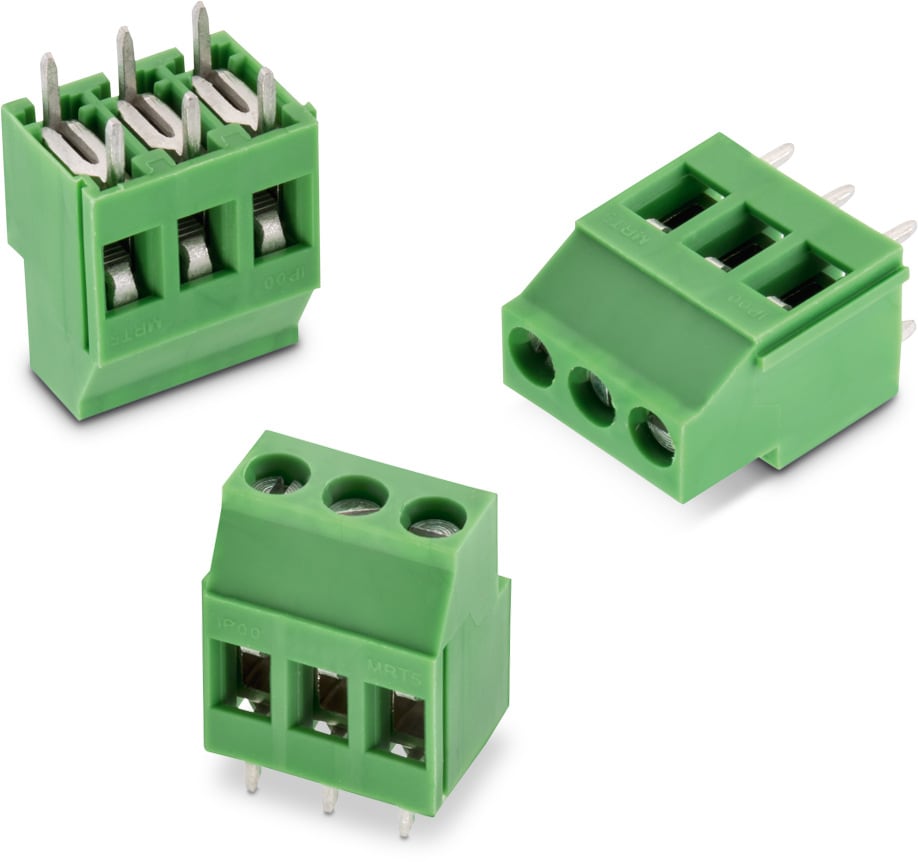

WR-TBL Serie 2547 - 5.00 mm Horizontal Cable Entry Rising Cage

Kind Properties
Pitch 5 mm
Material Properties
Insulator Material PA6/66
Insulator Flammability Rating UL94 V-0
Insulator Color Green
Contact Material Copper Alloy
Contact Plating Nickel; Zinc
Terminal Screw Material Steel
Terminal Screw Plating Nickel; Zinc
Wire Guard Material Copper Alloy
General Information
Operating Temperature -30 up to +120 °C
Compliance Lead free / RoHS
Electrical Properties
IR UL 16 A
IR VDE 24 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 450 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [VDE] 2500 V (AC)
Contact Resistance 20 mΩ
Mechanical Properties
Wire Strip Length 6 (mm)
Screw M3
Certification
UL Approval E150931
VDE Approval 40021392
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Samples
691254710002
IGE STE 3D ALT EAG Rising Cage Clamp PCB Yes Vertical 2 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
691254710003
IGE STE 3D ALT EAG Rising Cage Clamp PCB Yes Vertical 3 16 to 30 (AWG) 1.31 to 0.0509 (mm²)
Order Code SPEC
691254710002
691254710003
