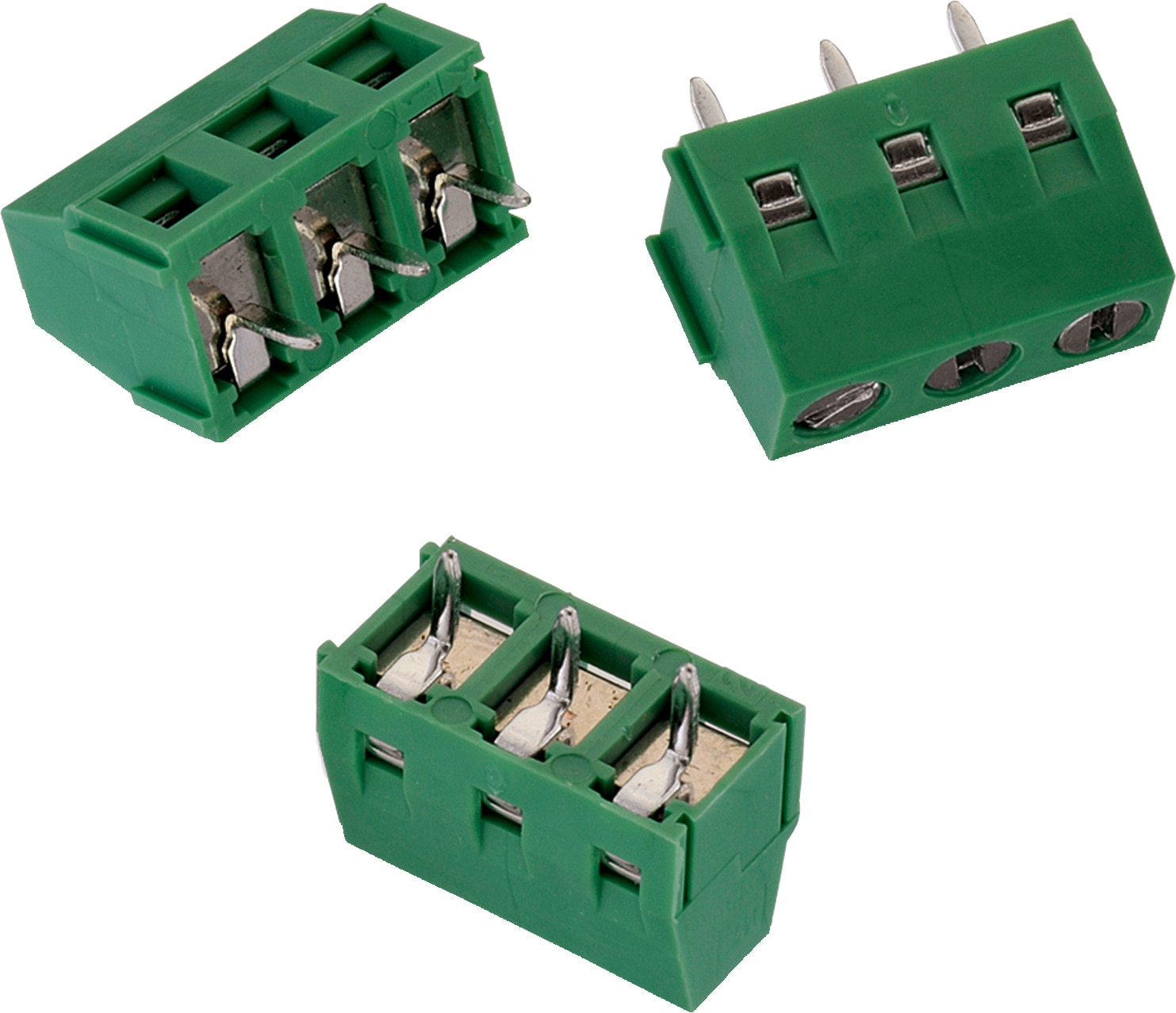

WR-TBL Series 213 - 5.00 mm Horiz.l Entry Modular

Kind Properties
Pitch 5 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Insulator Color Green
Contact Material Brass
Contact Plating Copper over Zinc
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Brass
General Information
Operating Temperature -40 up to +105 °C
Compliance Lead free / RoHS
Electrical Properties
IR UL 10 A
IR VDE 10 A
Working Voltage 250 V (AC); 300 V (AC)
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 250 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Withstanding Voltage [VDE] 2000 V (AC)
Contact Resistance [UL] 20 mΩ
Contact Resistance [cULus] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Mechanical Properties
Wire Strip Length 5 up to 6 (mm)
Screw M2.5
Certification
UL Approval E315414
VDE Approval 40024437
VDE Approval 40024437
Packaging Properties
Packaging Box

Products

Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples
691213710002
STE 3D ALT EAG IGS CAD Rising Cage Clamp PCB Yes Horizontal 2 26 to 16 (AWG) 0.129 to 1.31 (mm²) 612690
691213710003
STE 3D ALT EAG IGS CAD Rising Cage Clamp PCB Yes Horizontal 3 26 to 16 (AWG) 0.129 to 1.31 (mm²)
Order Code Data­sheet
691213710002
691213710003
Samples
Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
