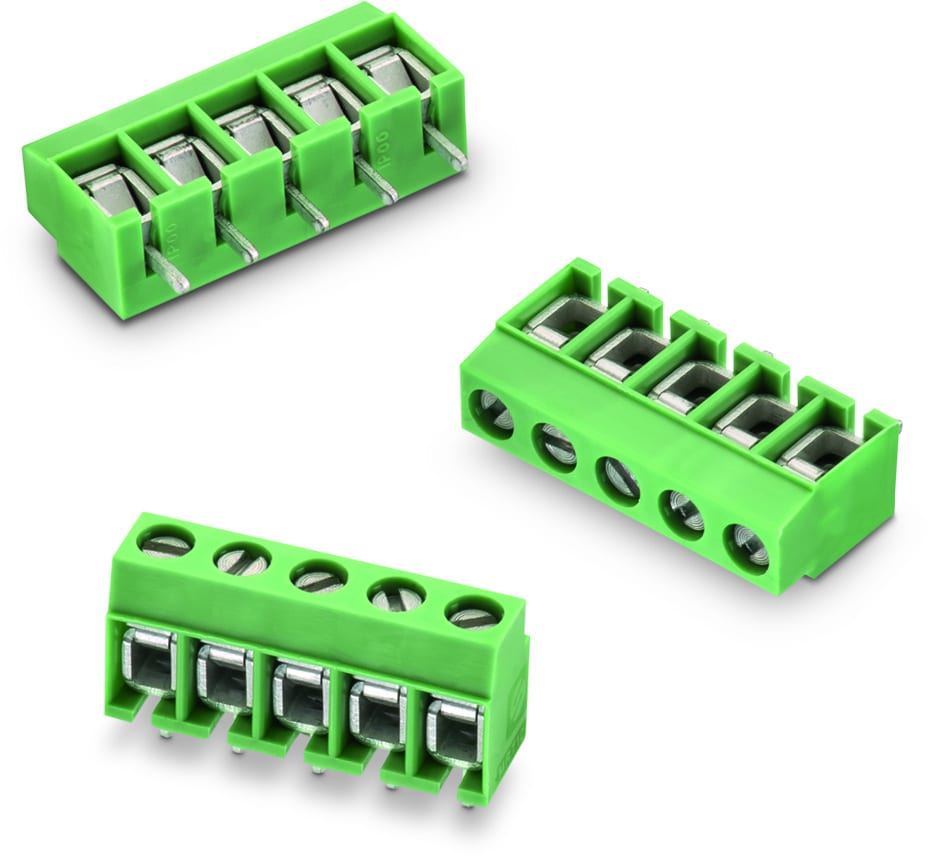

WR-TBL Series 1377 - Wire Protector 5.00mm pitch - Horizontal cable entry - THT

General Information
Operating Temperature-30 °C up to +110 °C
Pitch5 mm
Material Properties
Insulator MaterialPA6/66
Insulator Flammability RatingUL94 V-0
Insulator ColorGreen
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialCopper Alloy with Tin
Electrical Properties
IR cULus16 A
IR VDE24 A
Working Voltage250 V (AC); 300 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]250 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2000 V (AC)
Contact Resistance [cULus]20 mΩ
Contact Resistance [VDE]20 mΩ
Mechanical Properties
Wire Strip Length6 (mm)
ScrewM2.5
Certification
cULus ApprovalE150931
VDE Approval40021397
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691137710002SPEC
6 files 2 Wire Protector PCB No Horizontal 12 to 30 (AWG) 0.5 to 2.5 (mm²)612690
691001
691137710003SPEC
6 files 3 Wire Protector PCB No Horizontal 12 to 30 (AWG) 0.5 to 2.5 (mm²)
691137710004SPEC
6 files 4 Wire Protector PCB No Horizontal 12 to 30 (AWG) 0.5 to 2.5 (mm²)
691137710005SPEC
6 files 5 Wire Protector PCB No Horizontal 12 to 30 (AWG) 0.5 to 2.5 (mm²)
691137710006SPEC
6 files 6 Wire Protector PCB No Horizontal 12 to 30 (AWG) 0.5 to 2.5 (mm²)
691137710008SPEC
6 files 8 Wire Protector PCB No Horizontal 12 to 30 (AWG) 0.5 to 2.5 (mm²)
Order Code Data­sheet
691137710002SPEC
691137710003SPEC
691137710004SPEC
691137710005SPEC
691137710006SPEC
691137710008SPEC
Samples
