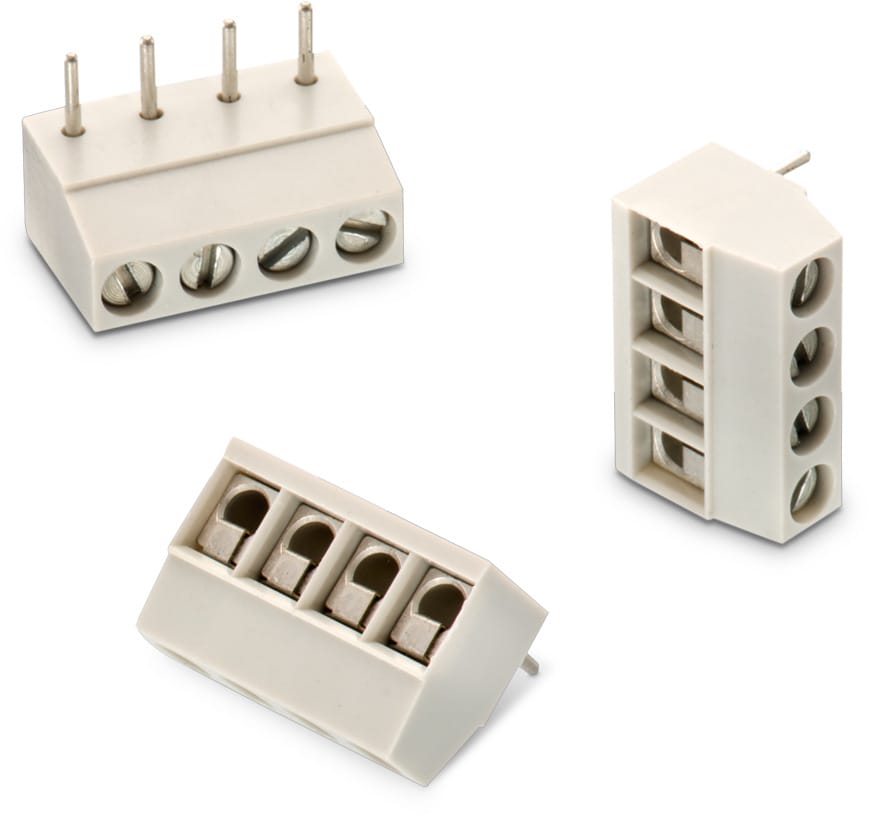

WR-TBL Series 1367- 5.00 mm Vertical Cable Entry w. Pressure Clamp

Kind Properties
Pitch5 mm
Material Properties
Insulator MaterialPC
Insulator Flammability RatingUL94 V-0
Insulator ColorGrey
Contact MaterialCopper Alloy
Contact PlatingNickel over Tin
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialCopper Alloy
General Information
Operating Temperature-30 up to +120 °C
ComplianceLead free / RoHS
Electrical Properties
IR VDE24 A
Working Voltage450 V (AC)
Working Voltage [VDE]450 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2500 V (AC)
Contact Resistance [cULus]20 mΩ
Contact Resistance [VDE]20 mΩ
Mechanical Properties
Wire Strip Length7 (mm)
ScrewM3
Certification
cULus ApprovalE315414
VDE Approval40023402
VDE Approval40021377 TYPE: CZZ
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionIR VDE
(A)
Samples
691136700004SPEC
6 files 4 Pressure Clamp PCB No Vertical 30 to 14 (AWG) 0.05 to 2.08 (mm²) 24
691136700005SPEC
6 files 5 Pressure Clamp PCB No Vertical 30 to 14 (AWG) 0.05 to 2.08 (mm²) 24
691136700006SPEC
6 files 6 Pressure Clamp PCB No Vertical 30 to 14 (AWG) 0.05 to 2.08 (mm²) 24
691136700007SPEC
6 files 7 Pressure Clamp PCB No Vertical 30 to 14 (AWG) 0.05 to 2.08 (mm²) 24
691136700008SPEC
6 files 8 Pressure Clamp PCB No Vertical 30 to 14 (AWG) 0.05 to 2.08 (mm²) 24
691136700009SPEC
6 files 9 Pressure Clamp PCB No Vertical 30 to 14 (AWG) 0.05 to 2.08 (mm²) 24
691136700010SPEC
6 files 10 Pressure Clamp PCB No Vertical 30 to 14 (AWG) 0.05 to 2.08 (mm²) 24
Order Code Data­sheet
691136700004SPEC
691136700005SPEC
691136700006SPEC
691136700007SPEC
691136700008SPEC
691136700009SPEC
691136700010SPEC
