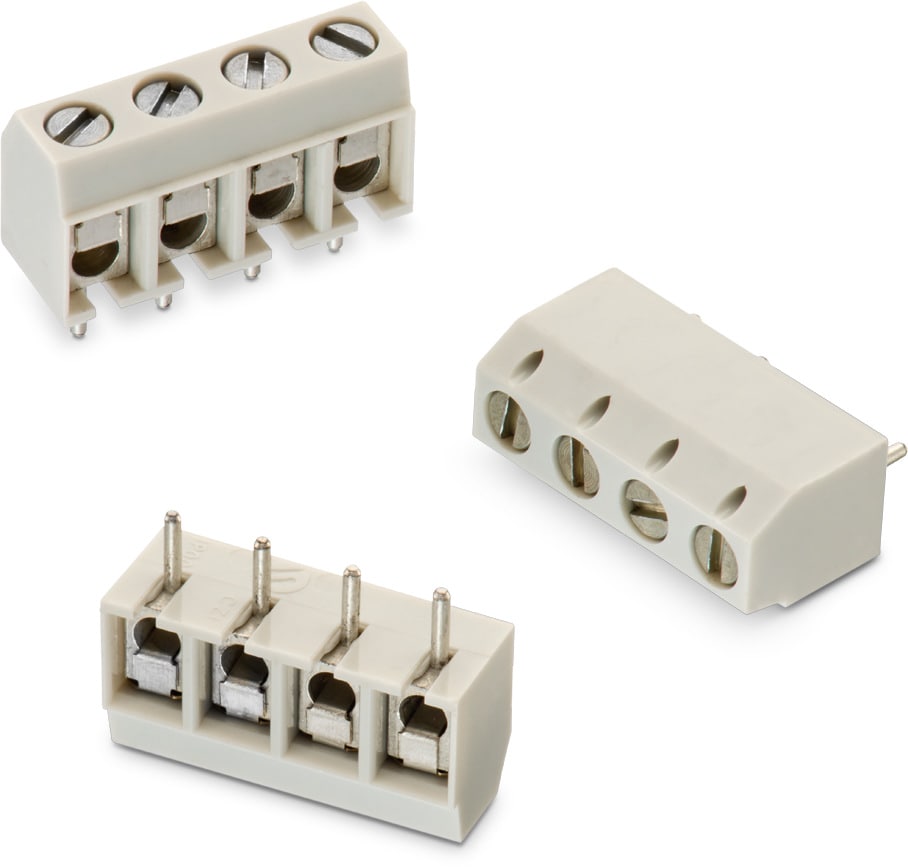

WR-TBL Series 1357- 5.00 mm Horizontal Cable Entry w. Pressure Clamp | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyTerminal Blocks Product sub-familyWire Protector PitchPitch 5.00 mm Product seriesWR-TBL Series 1357- 5.00 mm Horizontal Cable Entry w. Pressure Clamp

Kind Properties
Pitch	5 mm

Material Properties
Insulator Material	PC
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Contact Material	Copper Alloy
Contact Plating	Nickel over Tin
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Copper Alloy

General Information
Operating Temperature	-30 up to +120 °C
Compliance	Lead free / RoHS

Electrical Properties
I_{R VDE}	13.5 A
Working Voltage	250 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	2000 V (AC)
Withstanding Voltage [VDE]	2000 V (AC)
Contact Resistance	20 mΩ
Contact Resistance [VDE]	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M2.5

Certification
VDE Approval	40021362
VDE Approval	40021362 TYPE: CZI

Packaging Properties
Packaging	Box

Application Notes

ANE006 Derating Of Connectors
PDF

Products

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	I_{R VDE} (A)	Design Kit	Samples
691135710004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev21a).IntLib \| 154 MB CDS CADENCE_WR-TBL (rev21a).zip \| 221.4 MB EAG Eagle_WR-TBL Wire Protector (rev20a).lbr \| 739.1 KB CAD files ZIP 3D 3D_691135710004 (rev1).pdf \| 167.6 KB IGS Download_IGES_691135710004 (rev1).iges \| 1.9 MB STP Download_STP_691135710004 (rev1).stp \| 649.1 KB	4	Pressure Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.05 to 2.08 (mm²)	13.5	691001
691135710005	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev21a).IntLib \| 154 MB CDS CADENCE_WR-TBL (rev21a).zip \| 221.4 MB EAG Eagle_WR-TBL Wire Protector (rev20a).lbr \| 739.1 KB CAD files ZIP 3D 3D_691135710005 (rev1).pdf \| 196.7 KB IGS Download_IGES_691135710005 (rev1).iges \| 2.2 MB STP Download_STP_691135710005 (rev1).stp \| 754.1 KB	5	Pressure Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.05 to 2.08 (mm²)	13.5	–
691135710006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev21a).IntLib \| 154 MB CDS CADENCE_WR-TBL (rev21a).zip \| 221.4 MB EAG Eagle_WR-TBL Wire Protector (rev20a).lbr \| 739.1 KB CAD files ZIP 3D 3D_691135710006 (rev1).pdf \| 223.4 KB IGS Download_IGES_691135710006 (rev1).iges \| 2.6 MB STP Download_STP_691135710006 (rev1).stp \| 859.3 KB	6	Pressure Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.05 to 2.08 (mm²)	13.5	–
691135710007	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev21a).IntLib \| 154 MB CDS CADENCE_WR-TBL (rev21a).zip \| 221.4 MB EAG Eagle_WR-TBL Wire Protector (rev20a).lbr \| 739.1 KB CAD files ZIP 3D 3D_691135710007 (rev1).pdf \| 251.6 KB IGS Download_IGES_691135710007 (rev1).iges \| 2.9 MB STP Download_STP_691135710007 (rev1).stp \| 965.2 KB	7	Pressure Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.05 to 2.08 (mm²)	13.5	–
691135710008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev21a).IntLib \| 154 MB CDS CADENCE_WR-TBL (rev21a).zip \| 221.4 MB EAG Eagle_WR-TBL Wire Protector (rev20a).lbr \| 739.1 KB CAD files ZIP 3D 3D_691135710008 (rev1).pdf \| 285.1 KB IGS Download_IGES_691135710008 (rev1).iges \| 3.2 MB STP Download_STP_691135710008 (rev1).stp \| 1 MB	8	Pressure Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.05 to 2.08 (mm²)	13.5	–
691135710009	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev21a).IntLib \| 154 MB CDS CADENCE_WR-TBL (rev21a).zip \| 221.4 MB EAG Eagle_WR-TBL Wire Protector (rev20a).lbr \| 739.1 KB CAD files ZIP 3D 3D_691135710009 (rev1).pdf \| 304.7 KB IGS Download_IGES_691135710009 (rev1).iges \| 3.6 MB STP Download_STP_691135710009 (rev1).stp \| 1.1 MB	9	Pressure Clamp	PCB	No	Horizontal	30 to 14 (AWG) 0.05 to 2.08 (mm²)	13.5	–

Order Code	Datasheet
691135710004	SPEC
691135710005	SPEC
691135710006	SPEC
691135710007	SPEC
691135710008	SPEC
691135710009	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	I_{R VDE} (A)	Design Kit	Samples

Use with

WR-TBL Adhesive Marker Card Horizontally Printed

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-TBL Terminal Blocks
