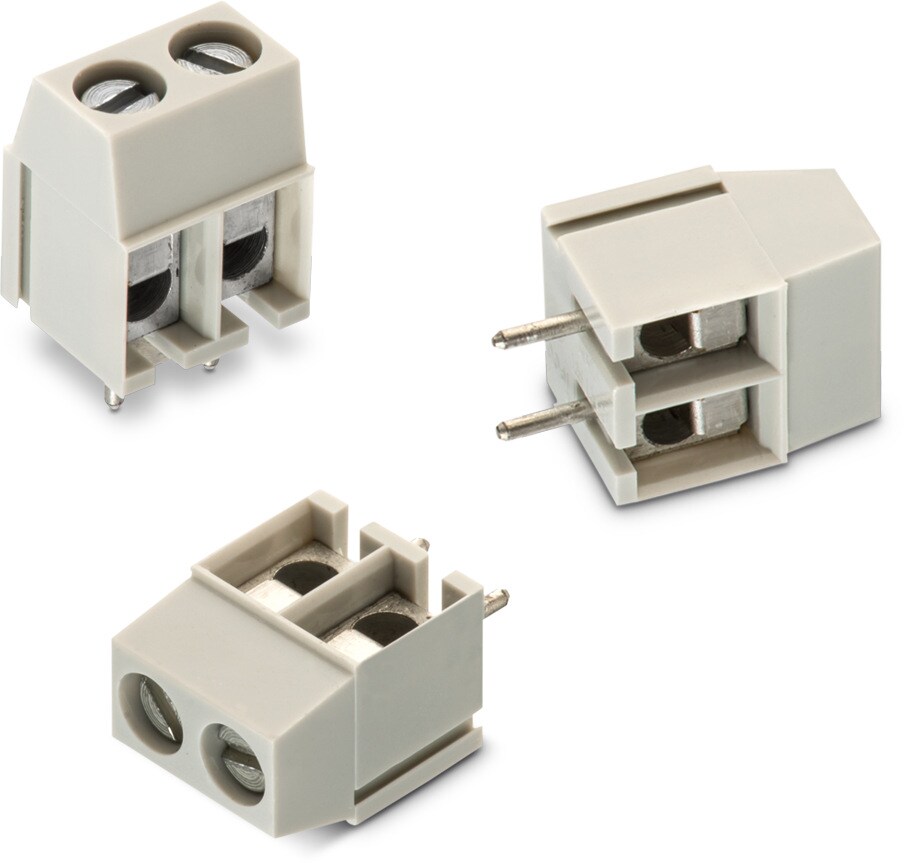

WR-TBL Series 1347- 5.00 mm Horizontal Cable Entry w. Pressure Clamp

Kind Properties
Pitch5 mm
Material Properties
Insulator MaterialPC
Insulator Flammability RatingUL94 V-0
Insulator ColorGrey
Contact MaterialCopper Alloy
Contact PlatingNickel over Tin
Contact TypeStamped
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialCopper Alloy
General Information
Operating Temperature-30 up to +120 °C
ComplianceLead free / RoHS
Electrical Properties
IR cULus16 A
IR VDE24 A
Working Voltage300 V (AC); 450 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]450 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2500 V (AC)
Contact Resistance20 mΩ
Contact Resistance [cULus]20 mΩ
Contact Resistance [VDE]20 mΩ
Mechanical Properties
Wire Strip Length7 (mm)
ScrewM3
Certification
VDE Approval40021362
VDE Approval40021375 TYPE: CMM
Packaging Properties
PackagingBox

Alternative Product Series Recommended

This product series will still be available for existing designs in the long term. Please use the offered alternative for new designs, which show a better performance. If you have any questions, please do not hesitate to contact us personally or via our contact form.

Products

Order Code Data­sheet Replacement Order Code DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691134710002iSPEC
691101710002 2 Pressure Clamp PCB Yes Horizontal 30 to 14 (AWG) 0.05 to 2.08 (mm²)744998
691134710003iSPEC
691101710003 3 Pressure Clamp PCB Yes Horizontal 30 to 14 (AWG) 0.05 to 2.08 (mm²)
Order Code Data­sheet Replacement Order Code
691134710002iSPEC
691101710002
691134710003iSPEC
691101710003
Samples
Order Code Data­sheet Replacement Order Code DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
