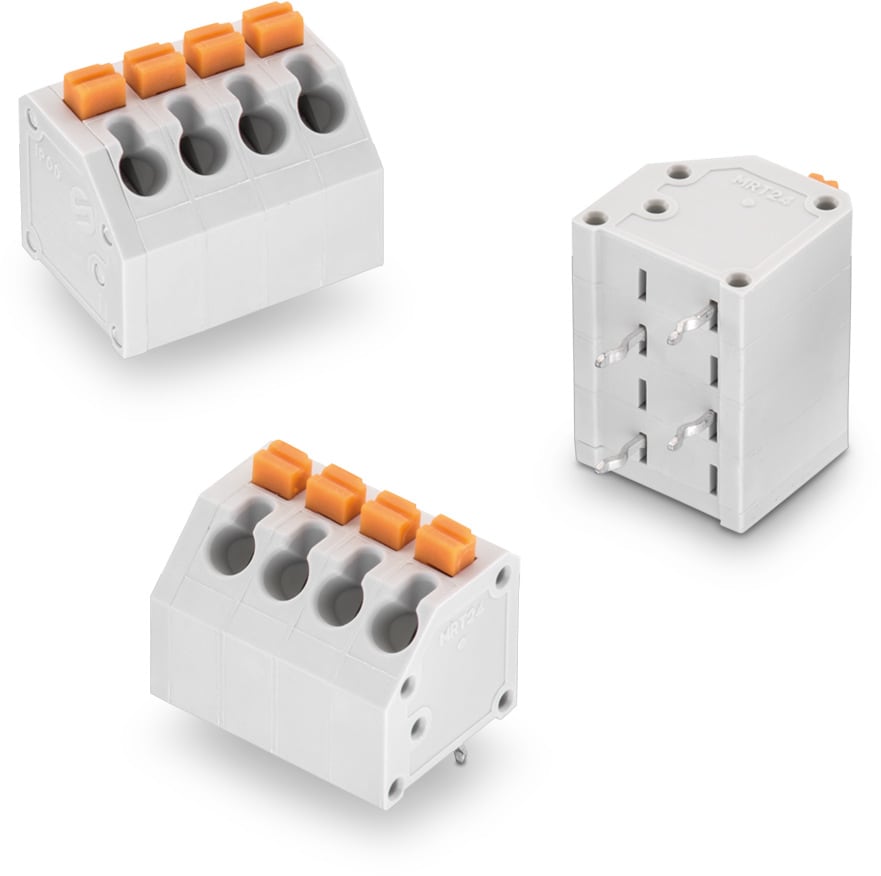

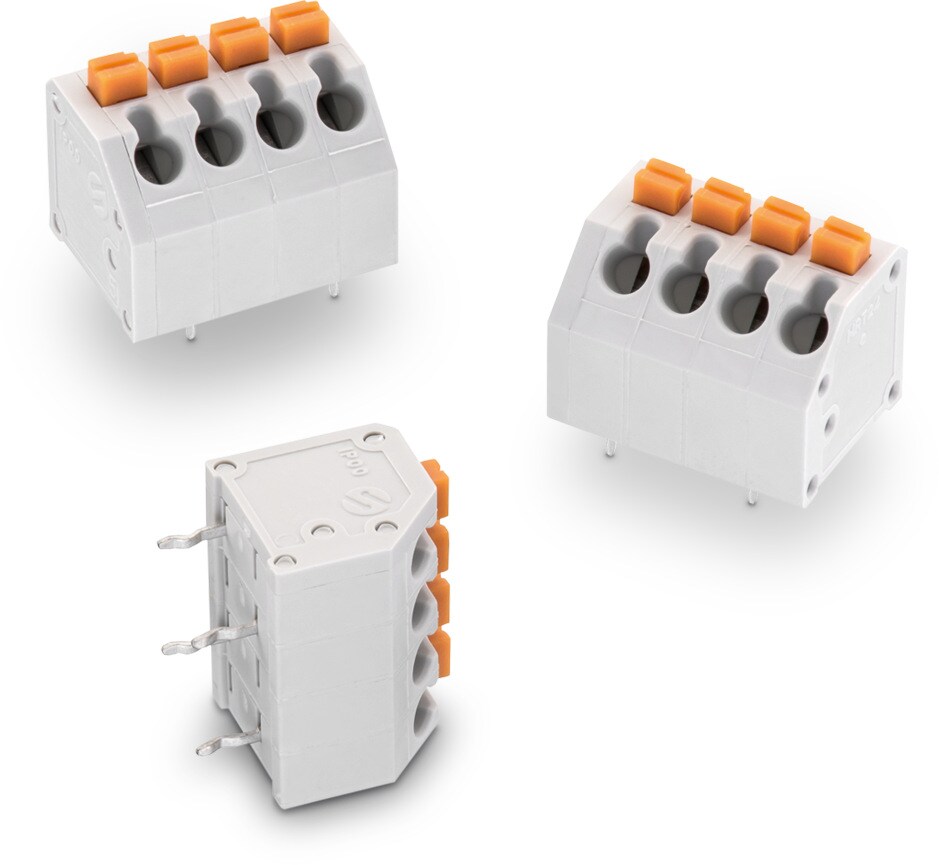

WR-TBL Serie 4123 - 3.81 mm Screwless 45° Entry

Kind Properties
Pitch 3.81 mm
Material Properties
Insulator Material PA6/66
Insulator Flammability Rating UL94 V-0
Insulator Color Grey
Contact Material Phosphor Bronze
Contact Plating Tin
Wire Guard Material Phosphor Bronze with Tin
General Information
Operating Temperature -30 up to +120 °C
Compliance Lead free / RoHS
Electrical Properties
IR UL 4 A
IR VDE 4 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 450 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [VDE] 2500 V (AC)
Contact Resistance 20 mΩ
Mechanical Properties
Wire Strip Length 7 (mm)
Wire Properties
Solid Wire Section (AWG) 16 to 30 (AWG)
Solid Wire Section (Metric) 1.31 to 0.05 (mm²)
Stranded Wire Section (AWG) 16 to 30 (AWG)
Stranded Wire Section (Metric) 1.31 to 0.05 (mm²)
Certification
UL Approval E150931
VDE Approval 40013441
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Samples
691412320003
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 3 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412320005
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 5 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412320007
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 7 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412320009
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 9 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412320010
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 10 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412320011
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 11 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412320002
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 2 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412320004
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 4 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412320006
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 6 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412320008
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 8 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412320012
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 12 16 to 30 (AWG) 1.31 to 0.05 (mm²)
Order Code SPEC
691412320003
691412320005
691412320007
691412320009
691412320010
691412320011
691412320002
691412320004
691412320006
691412320008
691412320012
