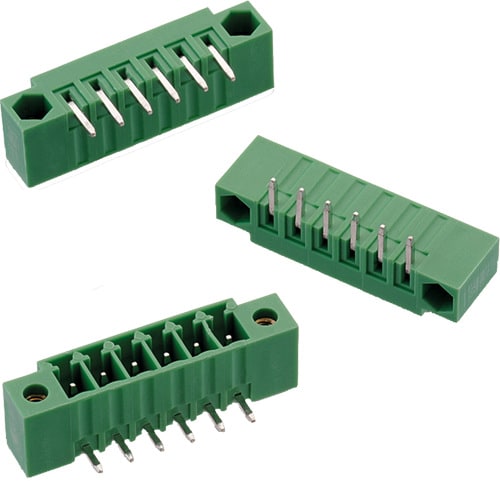

WR-TBL Series 3251 - 3.50 mm Horizontal PCB Header with Flanges

Kind Properties
Pitch 3.5 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Contact Material Brass
Contact Plating Tin
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Electrical Properties
IR cULus 10 A
IR VDE 10.5 A
Working Voltage 300 V (AC)
Working Voltage [cULus] 300 V (AC)
Working Voltage [VDE] 300 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Withstanding Voltage [VDE] 2500 V (AC)
Contact Resistance [cULus] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Certification
cULus Approval E315414
VDE Approval 40023195

Products

Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins Design Kit Samples
691325110002
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 2
691325110003
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 3
691325110004
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 4 691001
691325110005
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 5
691325110006
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 6
691325110008
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 8
691325110007
IGE STE 3D ALT EAG CAD Pluggable PCB No Horizontal 7
691325110012
IGE STE 3D ALT EAG CAD Pluggable PCB No Horizontal 12
Order Code Data­sheet
691325110002
691325110003
691325110004
691325110005
691325110006
691325110008
691325110007
691325110012
Samples
Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
