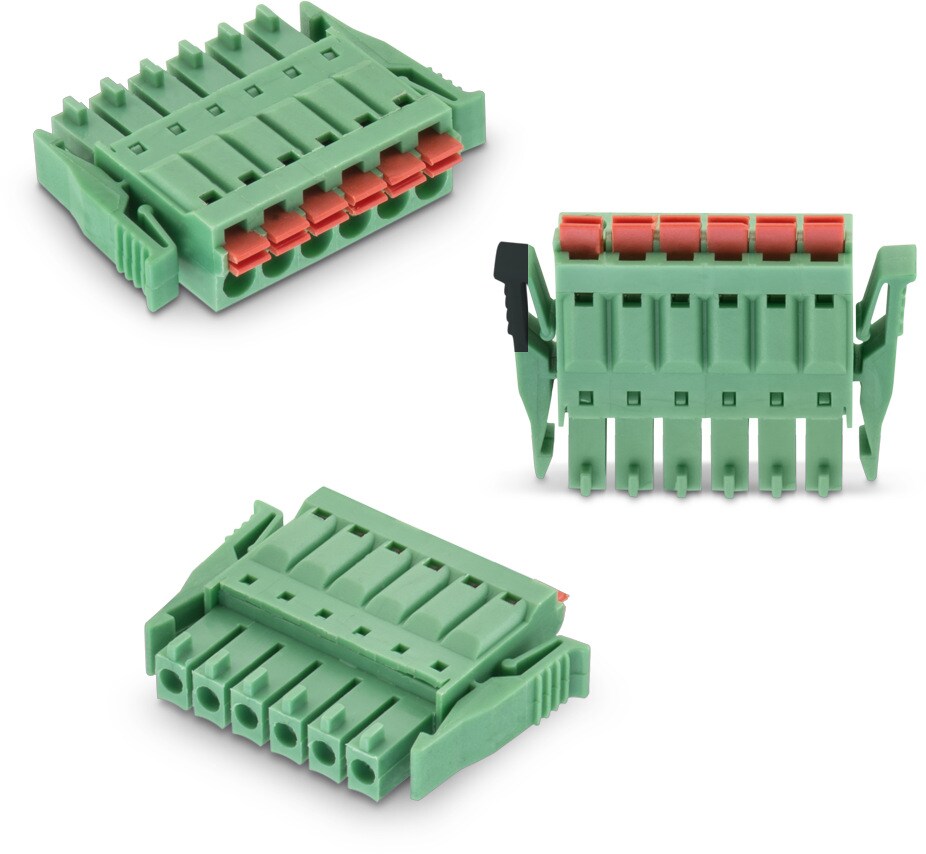

WR-TBL Series 3041 - 3.50 mm Screwless Vertical Entry Plug 1.3 mm 2 Wires

General Information
Operating Temperature-40 °C up to +105 °C
ComplianceLead free / RoHS
Pitch3.5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorGreen
Contact MaterialCopper Alloy
Contact PlatingTin
Wire Guard MaterialCopper Alloy with Tin over Nickel
Spring MaterialStainless Steel
Electrical Properties
IR12 A
IR cULus12 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]2500 V (AC)
Contact Resistance20 mΩ
Contact Resistance [cULus]20 mΩ
Mechanical Properties
Wire Strip Length7 up to 9 (mm)
Wire Properties
Solid Wire Section (AWG)16 to 24 (AWG)
Solid Wire Section (Metric)0.205 to 1.3 (mm²)
Stranded Wire Section (AWG)16 to 24 (AWG)
Stranded Wire Section (Metric)0.205 to 1.3 (mm²)
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire Section Samples
691304130002SPEC
3 files 2 Pluggable Cable No Vertical 16 to 24 (AWG) 0.205 to 1.3 (mm²)
691304130003SPEC
3 files 3 Pluggable Cable No Vertical 16 to 24 (AWG) 0.205 to 1.3 (mm²)
691304130004SPEC
3 files 4 Pluggable Cable No Vertical 16 to 24 (AWG) 0.205 to 1.3 (mm²)
691304130005SPEC
3 files 5 Pluggable Cable No Vertical 16 to 24 (AWG) 0.205 to 1.3 (mm²)
691304130006SPEC
3 files 6 Pluggable Cable No Vertical 16 to 24 (AWG) 0.205 to 1.3 (mm²)
691304130007SPEC
3 files 7 Pluggable Cable No Vertical 16 to 24 (AWG) 0.205 to 1.3 (mm²)
691304130008SPEC
3 files 8 Pluggable Cable No Vertical 16 to 24 (AWG) 0.205 to 1.3 (mm²)
691304130012SPEC
3 files 12 Pluggable Cable No Vertical 16 to 24 (AWG) 0.205 to 1.3 (mm²)
Order Code Data­sheet
691304130002SPEC
691304130003SPEC
691304130004SPEC
691304130005SPEC
691304130006SPEC
691304130007SPEC
691304130008SPEC
691304130012SPEC
