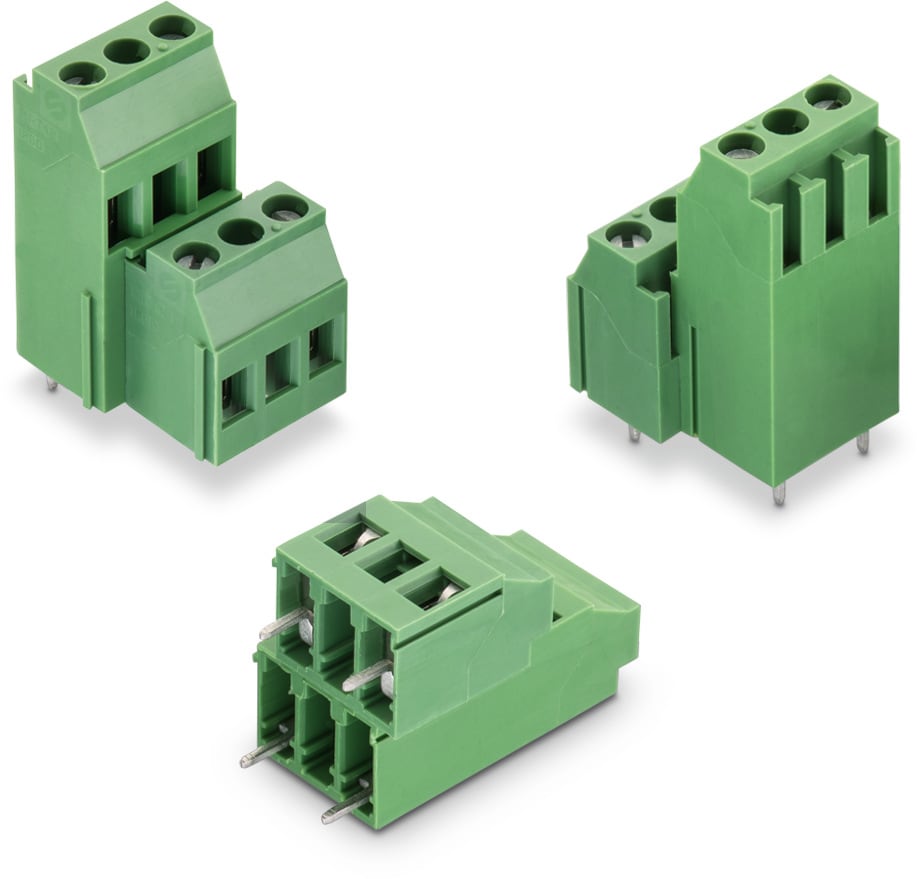

WR-TBL Serie 2336 - 10.16 mm Horiz. Entry Rising Cage Clamp

Kind Properties
Pitch 10.16 mm
Material Properties
Insulator Material PA6/66
Insulator Flammability Rating UL94 V-0
Insulator Color Green
Contact Material Copper Alloy
Contact Plating Nickel tin-plated surface
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Copper Alloy with Tin over Nickel
General Information
Operating Temperature -30 up to +120 °C
Compliance Lead free / RoHS
Electrical Properties
IR UL 20 A
IR VDE 20 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 750 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [VDE] 3000 V (AC)
Contact Resistance 20 mΩ
Mechanical Properties
Wire Strip Length 6 (mm)
Screw M3
Certification
UL Approval E150931 Cat No. MRT18 (5)
VDE Approval 40022114 Type MRT18
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Samples
691233610002
IGE STE 3D ALT EAG Rising Cage Clamp PCB Yes Dual Level Horizontal 2 12 to 30 (AWG) 3.31 to 0.05 (mm²)
691233610004
IGE STE 3D ALT EAG Rising Cage Clamp PCB Yes Dual Level Horizontal 4 12 to 30 (AWG) 3.31 to 0.05 (mm²)
691233610102
IGE STE 3D ALT EAG Rising Cage Clamp PCB Yes Dual Level Horizontal 2 12 to 30 (AWG) 3.31 to 0.05 (mm²)
Order Code SPEC
691233610002
691233610004
691233610102
