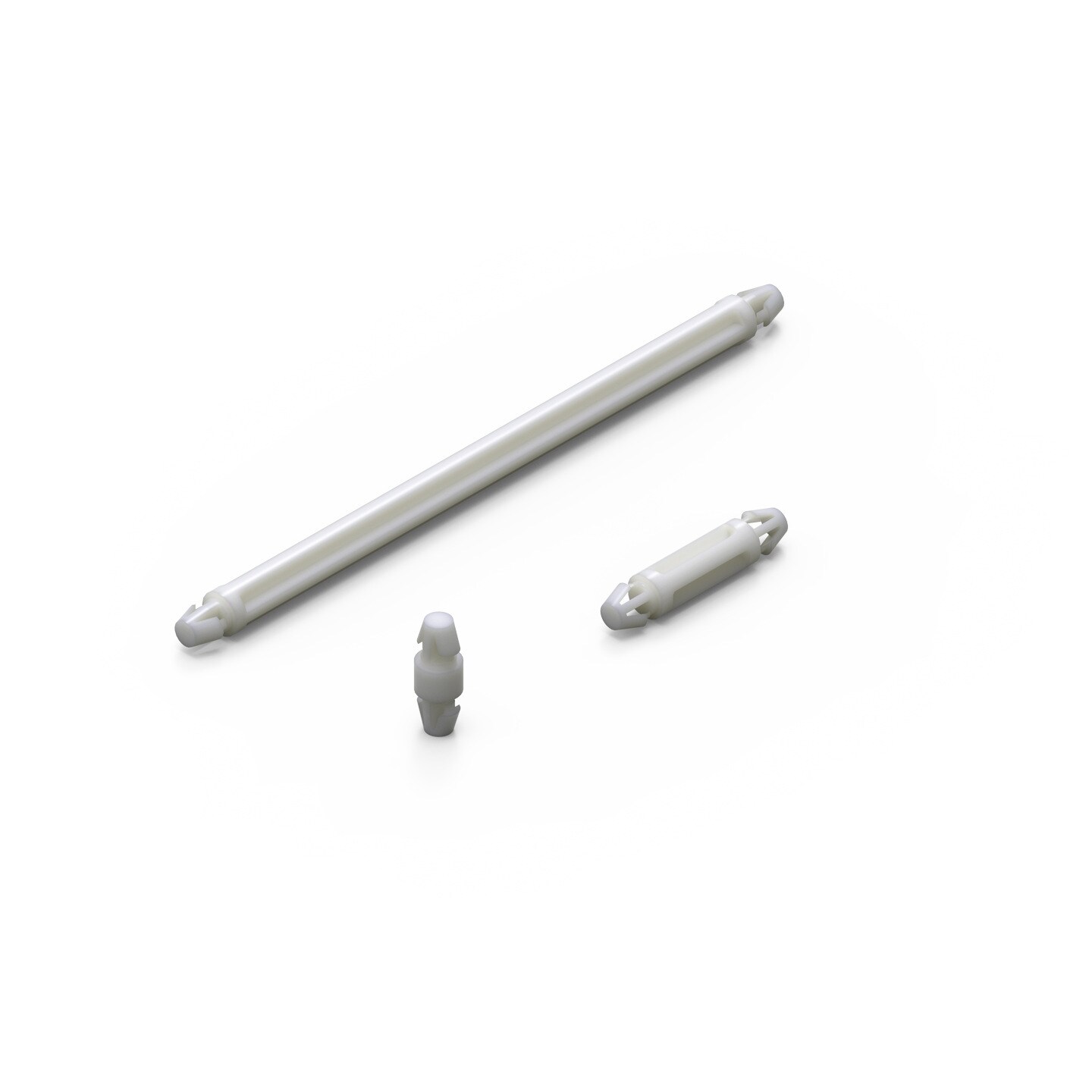

WA-SNSN Snap-In Spacer Snap Locking on both ends

Applications

  • Spacer for circuit board assembly
  • No installation tool necessary
General Information
MaterialPA66
ColorNatural
Flammability RatingUL94 V-2
Operating Temperature-30 °C up to +85 °C

Products

Order Code Data­sheet DownloadsL
(mm)
f
(mm)
Board Samples
709620200SPEC
3 files 3 4700990
709620400SPEC
3 files 3.5 4
709620600SPEC
3 files 4 4
709620800SPEC
3 files 5 4
709621000SPEC
3 files 6 4
709621200SPEC
3 files 6.4 4
709621400SPEC
3 files 8 4
709621600SPEC
3 files 10 4700990
709621800SPEC
3 files 10.5 4
709622000SPEC
3 files 11.5 4
709622200SPEC
3 files 12 4
709622400SPEC
3 files 12.7 4
709622600SPEC
3 files 14 4
709622800SPEC
3 files 15.9 4
709623000SPEC
3 files 18 4
709623200SPEC
3 files 19 4
709623400SPEC
3 files 20 4
709623600SPEC
3 files 25 4700990
709623800SPEC
3 files 27 4
709624000SPEC
3 files 30 4
709624200SPEC
3 files 34 4
709624400SPEC
3 files 69 4
709624600SPEC
3 files 71.2 4
709624800SPEC
3 files 72 4
709625000SPEC
3 files 74.2 4
709625200SPEC
2 files 80 4
Order Code Data­sheet
709620200SPEC
709620400SPEC
709620600SPEC
709620800SPEC
709621000SPEC
709621200SPEC
709621400SPEC
709621600SPEC
709621800SPEC
709622000SPEC
709622200SPEC
709622400SPEC
709622600SPEC
709622800SPEC
709623000SPEC
709623200SPEC
709623400SPEC
709623600SPEC
709623800SPEC
709624000SPEC
709624200SPEC
709624400SPEC
709624600SPEC
709624800SPEC
709625000SPEC
709625200SPEC
Samples
Order Code Data­sheet DownloadsL
(mm)
f
(mm)
Board Samples

Assortments

Articles from this product series can be found in the following assortments:
