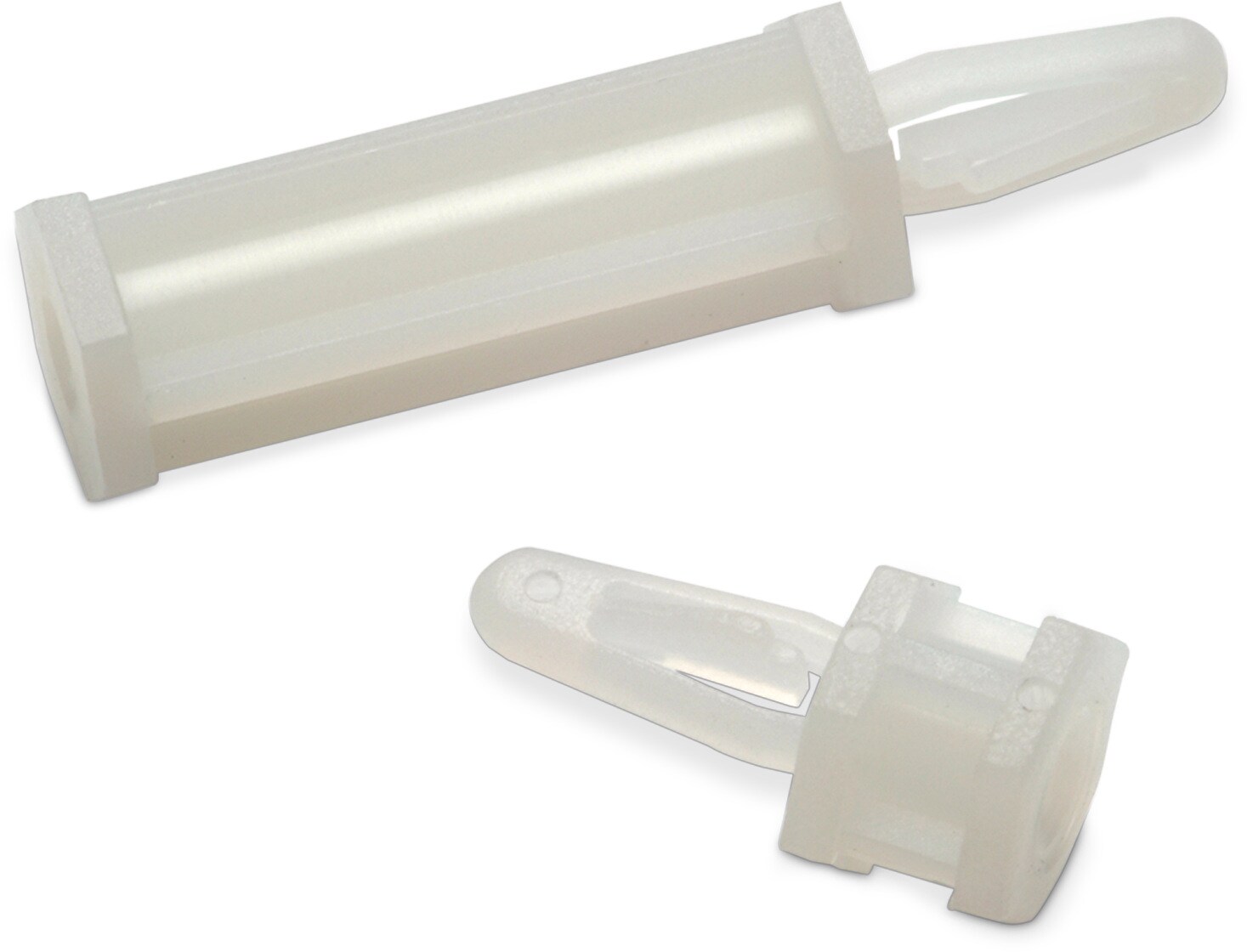

WA-SNSH Snap-In Spacer Screw Mount

Applications

Fix the panel with a self-tapping screw (Order Code 70995ST33) to the spacer.
Snap-in side for a 4 mm bore hole to assemble the mating board.

General Information
Operating Temperature	-30 °C up to +85 °C; -55 °C up to +150 °C
Storage Conditions (in original packaging)	< 40 °C ; < 75 % RH
Material	PA66; Steel
Color	Natural
Flammability Rating	UL94 V-2

Packaging Properties
Packaging	Bag; Carton

Products

	Order Code	Datasheet	Downloads	L (mm)	f (mm)	Board	Samples
	709951000	SPEC	3 files CAD files ZIP 3D 3D_709951000 (rev1).pdf \| 56.3 KB IGS Downloads_IGS_709951000 (rev1).igs \| 396.8 KB STP Downloads_STEP_709951000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	6.4	4	700990
	709952000	SPEC	3 files CAD files ZIP 3D 3D_709952000 (rev1).pdf \| 48.6 KB IGS Downloads_IGS_709952000 (rev1).igs \| 409.3 KB STP Downloads_STEP_709952000 (rev1).stp \| 78.3 KB Download all 3 files as zip archive ZIP	9.6	4	–
	709953000	SPEC	3 files CAD files ZIP 3D 3D_709953000 (rev1).pdf \| 51.3 KB IGS Downloads_IGS_709953000 (rev1).igs \| 397.7 KB STP Downloads_STEP_709953000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	12.7	4	–
	709954000	SPEC	3 files CAD files ZIP 3D 3D_709954000 (rev1).pdf \| 51.3 KB IGS Downloads_IGS_709954000 (rev1).igs \| 396.5 KB STP Downloads_STEP_709954000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	14	4	700990
	709955000	SPEC	3 files CAD files ZIP 3D 3D_709955000 (rev1).pdf \| 48 KB IGS Downloads_IGS_709955000 (rev1).igs \| 395.7 KB STP Downloads_STEP_709955000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	16	4	–
	709956000	SPEC	3 files CAD files ZIP 3D 3D_709956000 (rev1).pdf \| 47.3 KB IGS Downloads_IGS_709956000 (rev1).igs \| 397.4 KB STP Downloads_STEP_709956000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	19.2	4	–
	709957000	SPEC	3 files CAD files ZIP 3D 3D_709957000 (rev1).pdf \| 47.3 KB IGS Downloads_IGS_709957000 (rev1).igs \| 396.8 KB STP Downloads_STEP_709957000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	22.4	4	–
	709958000	SPEC	3 files CAD files ZIP 3D 3D_709958000 (rev1).pdf \| 44.3 KB IGS Downloads_IGS_709958000 (rev1).igs \| 397.3 KB STP Downloads_STEP_709958000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	25.6	4	–
	709959000	SPEC	3 files CAD files ZIP 3D 3D_709959000 (rev1).pdf \| 44.3 KB IGS Downloads_IGS_709959000 (rev1).igs \| 396.6 KB STP Downloads_STEP_709959000 (rev1).stp \| 139.5 KB Download all 3 files as zip archive ZIP	29	4	–
	70995ST33	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 61 KB IGS Download_IGS (rev1).igs \| 165.4 KB STP Download_STP (rev1).stp \| 36.5 KB Download all 3 files as zip archive ZIP	–	–	–

	Order Code	Datasheet
	709951000	SPEC
	709952000	SPEC
	709953000	SPEC
	709954000	SPEC
	709955000	SPEC
	709956000	SPEC
	709957000	SPEC
	709958000	SPEC
	709959000	SPEC
	70995ST33	SPEC

Samples

	Order Code	Datasheet	Downloads	L (mm)	f (mm)	Board	Samples

Assortments

Articles from this product series can be found in the following assortments:

Board ASSEMBLY Spacer
