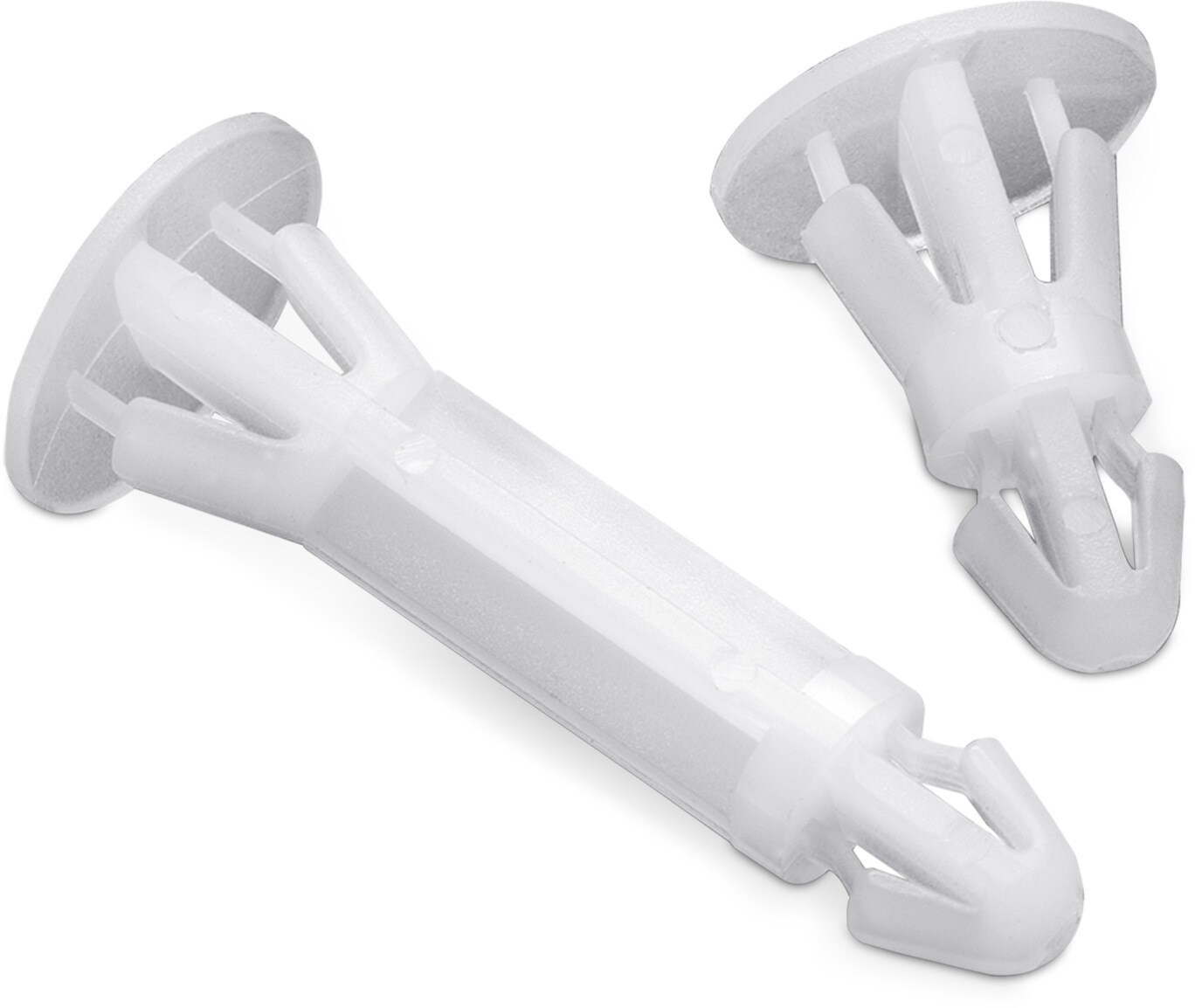

WA-SNFR Snap-In Spacer Reverse Mount

Applications

Spacer and fixing for panels in extremely flat or slim designs
Front panels can be assembled without tension (isolated).
No tooling, screws and rivets required for assembly
To fix just snap-in
Due to the very flat cap the back side of the panel is almost plane

General Information
Material	PA66
Color	Natural
Flammability Rating	UL94 V-2
Operating Temperature	-30 °C up to +85 °C

Products

Order Code	Datasheet	Downloads	L (mm)	Board
709440200	SPEC	3 files CAD files ZIP 3D 3D_WA-SNFR_SNAP-IN_SPACER_REVERSE_MOUNT_709440200 (rev1).pdf \| 141.3 KB IGS IGS_WA-SNFR_SNAP-IN_SPACER_REVERSE_MOUNT_709440200 (rev1).igs \| 416.5 KB STP STP_WA-SNFR_SNAP-IN_SPACER_REVERSE_MOUNT_709440200 (rev1).stp \| 151.6 KB Download all 3 files as zip archive ZIP	2.5	–
709440400	SPEC	3 files CAD files ZIP 3D 3D_WA-SNFR_SNAP-IN_SPACER_REVERSE_MOUNT_709440400 (rev1).pdf \| 139.1 KB IGS IGS_WA-SNFR_SNAP-IN_SPACER_REVERSE_MOUNT_709440400 (rev1).igs \| 415.9 KB STP STP_WA-SNFR_SNAP-IN_SPACER_REVERSE_MOUNT_709440400 (rev1).stp \| 151.6 KB Download all 3 files as zip archive ZIP	3.2	–
709440600	SPEC	3 files CAD files ZIP 3D 3D_WA-SNFR_SNAP-IN_SPACER_REVERSE_MOUNT_709440600 (rev1).pdf \| 136.5 KB IGS IGS_WA-SNFR_SNAP-IN_SPACER_REVERSE_MOUNT_709440600 (rev1).igs \| 415.7 KB STP STP_WA-SNFR_SNAP-IN_SPACER_REVERSE_MOUNT_709440600 (rev1).stp \| 151.6 KB Download all 3 files as zip archive ZIP	4	–
709440800	SPEC	3 files CAD files ZIP 3D 3D_709440800 (rev1).pdf \| 133.5 KB IGS Downloads_IGS_709440800 (rev1).igs \| 416.7 KB STP Downloads_STEP_709440800 (rev1).stp \| 151.6 KB Download all 3 files as zip archive ZIP	5	–
709445100	SPEC	3 files CAD files ZIP 3D 3D_709445100 (rev1).pdf \| 137.7 KB IGS Downloads_IGS_709445100 (rev1).igs \| 576.3 KB STP Downloads_STEP_709445100 (rev1).stp \| 218.1 KB Download all 3 files as zip archive ZIP	5	–
709441000	SPEC	3 files CAD files ZIP 3D 3D_709441000 (rev1).pdf \| 137.3 KB IGS Downloads_IGS_709441000 (rev1).igs \| 509.4 KB STP downloads_STEP_709441000 (rev1).stp \| 185 KB Download all 3 files as zip archive ZIP	6	–
709445200	SPEC	3 files CAD files ZIP 3D 3D_709445200 (rev1).pdf \| 137.1 KB IGS Downloads_IGS_709445200 (rev1).igs \| 576.3 KB STP Downloads_STEP_709445200 (rev1).stp \| 218.1 KB Download all 3 files as zip archive ZIP	6	–
709441200	SPEC	3 files CAD files ZIP 3D 3D_709441200 (rev1).pdf \| 127.3 KB IGS Downloads_IGS_709441200 (rev1).igs \| 509.2 KB STP Downloads_STEP_709441200 (rev1).stp \| 185 KB Download all 3 files as zip archive ZIP	7	–
709445400	SPEC	3 files CAD files ZIP 3D 3D_709445400 (rev1).pdf \| 115 KB IGS Downloads_IGS_709445400 (rev1).igs \| 575.8 KB STP Downloads_STEP_709445400 (rev1).stp \| 217.3 KB Download all 3 files as zip archive ZIP	7	–
709441400	SPEC	3 files CAD files ZIP 3D 3D_709441400 (rev1).pdf \| 127 KB IGS Downloads_IGS_709441400 (rev1).igs \| 508.1 KB STP Downloads_STEP_709441400 (rev1).stp \| 185 KB Download all 3 files as zip archive ZIP	8	700990
709445600	SPEC	3 files CAD files ZIP 3D 3D_709445600 (rev1).pdf \| 127.8 KB IGS Download_IGS_709445600 (rev1).igs \| 562.4 KB STP Download_STP_709445600 (rev1).stp \| 127.2 KB Download all 3 files as zip archive ZIP	8	–
709441600	SPEC	3 files CAD files ZIP 3D 3D_709441600 (rev1).pdf \| 127.1 KB IGS Downloads_IGS_709441600 (rev1).igs \| 510 KB STP Downloads_STEP_709441600 (rev1).stp \| 185 KB Download all 3 files as zip archive ZIP	9	–
709441800	SPEC	3 files CAD files ZIP 3D 3D_709441800 (rev1).pdf \| 122.6 KB IGS Downloads_IGS_709441800 (rev1).igs \| 510.4 KB STP Downloads_STEP_709441800 (rev1).stp \| 185 KB Download all 3 files as zip archive ZIP	10	–
709446000	SPEC	3 files CAD files ZIP 3D 3D_709445600 (rev1).pdf \| 115.1 KB IGS Downloads_IGS_709446000 (rev1).igs \| 595.9 KB STP Downloads_STEP_709446000 (rev1).stp \| 234.3 KB Download all 3 files as zip archive ZIP	10	–
709446200	SPEC	3 files CAD files ZIP 3D 3D_709446200 (rev1).pdf \| 131 KB IGS Download_IGS_709446200 (rev1).igs \| 614.1 KB STP Download_STP_709446200 (rev1).stp \| 129.6 KB Download all 3 files as zip archive ZIP	11	–
709442000	SPEC	3 files CAD files ZIP 3D 3D_709442000 (rev1).pdf \| 118 KB IGS Downloads_IGS_709442000 (rev1).igs \| 509 KB STP Downloads_STEP_709442000 (rev1).stp \| 185 KB Download all 3 files as zip archive ZIP	12	–
709446400	SPEC	3 files CAD files ZIP 3D 3D_709446400 (rev1).pdf \| 131.9 KB IGS Download_IGS_709446400 (rev1).igs \| 614 KB STP Download_STP_709446400 (rev1).stp \| 129.5 KB Download all 3 files as zip archive ZIP	12	–
709442200	SPEC	3 files CAD files ZIP 3D 3D_709442200 (rev1).pdf \| 112.1 KB IGS Downloads_IGS_709442200 (rev1).igs \| 509.6 KB STP Downloads_STEP_709442200 (rev1).stp \| 185 KB Download all 3 files as zip archive ZIP	14	–
709446800	SPEC	3 files CAD files ZIP 3D 3D_709446800 (rev1).pdf \| 112.5 KB IGS Download _IGS_709446800 (rev1).igs \| 550.1 KB STP Download_STP_709446800 (rev1).stp \| 117.6 KB Download all 3 files as zip archive ZIP	14	700990
709442400	SPEC	3 files CAD files ZIP 3D 3D_709442400 (rev1).pdf \| 110.4 KB IGS Downloads_IGS_709442400 (rev1).igs \| 509.8 KB STP Downloads_STEP_709442400 (rev1).stp \| 185 KB Download all 3 files as zip archive ZIP	16	–
709447600	SPEC	3 files CAD files ZIP 3D 3D_709447600 (rev1).pdf \| 109.5 KB IGS Download_IGS_709447600 (rev1).igs \| 615.2 KB STP Download_STP_709447600 (rev1).stp \| 129.8 KB Download all 3 files as zip archive ZIP	18	–
