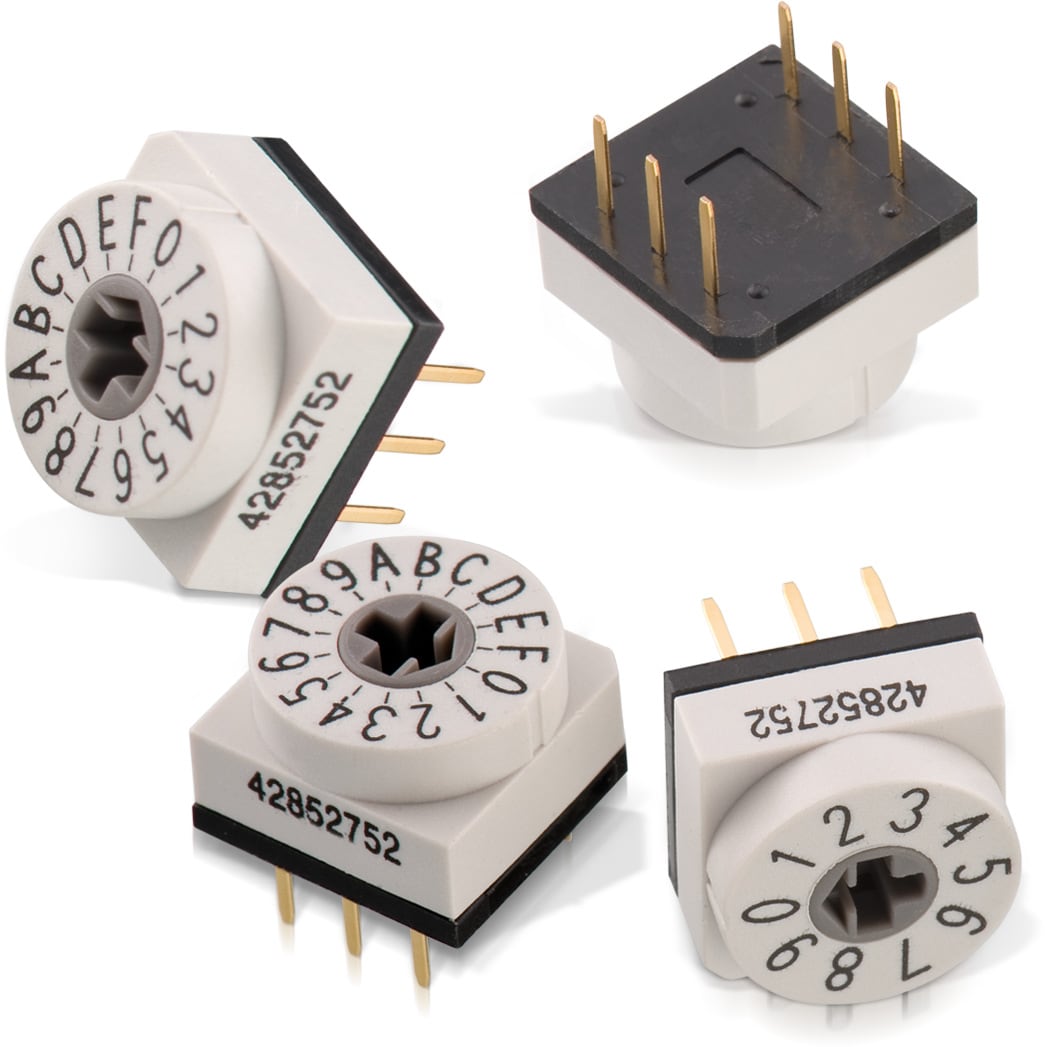

WS-ROTV THT IP67 Rotary Switch with Cross Type Actuator 10x10 mm

Material Properties
Cover Material	PA66
Cover Flammability Rating	UL94 V-0
Base Material	PA66
Base Flammability Rating	UL94 V-0
Actuator Material	POM
Actuator Flammability Rating	UL94 HB
Terminal Material	Copper Alloy
Terminal Plating	Gold

Electrical Properties
I_R	400 mA
V_R	24 V (DC)
Contact Resistance Initial	80 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Electrical Life	10000 Steps
Actuator Type	Cross Type

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes
Ingress Protection Code	IP67

Packaging Properties
Packaging	Tube

Products

Order Code	Datasheet	Downloads	Number of Position (Value)	Code	Ingress Protection Code	Vaporphase process	Actuator Color	Design Kit
428527520908	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROTV (rev24a).IntLib \| 1.6 MB CDS Cadence_WS-ROTV (rev24a).zip \| 6.6 MB EAG Eagle_WS-ROTV (rev24a).lbr \| 118.2 KB CAD files ZIP IGS 428527520908 (rev1).igs \| 1.1 MB STP 428527520908 (rev1).stp \| 434.9 KB Download all 5 files as zip archive ZIP	8	Real Code	IP67	not specified	Dark Grey	499001
428527520909	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROTV (rev24a).IntLib \| 1.6 MB CDS Cadence_WS-ROTV (rev24a).zip \| 6.6 MB EAG Eagle_WS-ROTV (rev24a).lbr \| 118.2 KB CAD files ZIP IGS 428527520909 (rev1).igs \| 1.1 MB STP 428527520909 (rev1).stp \| 434.9 KB Download all 5 files as zip archive ZIP	8	Complement Code	IP67	not specified	Ivory	499001
428527520910	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROTV (rev24a).IntLib \| 1.6 MB CDS Cadence_WS-ROTV (rev24a).zip \| 6.6 MB EAG Eagle_WS-ROTV (rev24a).lbr \| 118.2 KB CAD files ZIP IGS 428527520910 (rev1).igs \| 1.4 MB STP 428527520910 (rev1).stp \| 508.3 KB Download all 5 files as zip archive ZIP	10	Real Code	IP67	not specified	Dark Grey	499001
428527520911	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROTV (rev24a).IntLib \| 1.6 MB CDS Cadence_WS-ROTV (rev24a).zip \| 6.6 MB EAG Eagle_WS-ROTV (rev24a).lbr \| 118.2 KB CAD files ZIP IGS 428527520911 (rev1).igs \| 1.4 MB STP 428527520911 (rev1).stp \| 508.3 KB Download all 5 files as zip archive ZIP	10	Complement Code	IP67	not specified	Ivory	499001
428527520916	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROTV (rev24a).IntLib \| 1.6 MB CDS Cadence_WS-ROTV (rev24a).zip \| 6.6 MB EAG Eagle_WS-ROTV (rev24a).lbr \| 118.2 KB CAD files ZIP IGS 428527520916 (rev1).igs \| 1.9 MB STP 428527520916 (rev1).stp \| 696 KB Download all 5 files as zip archive ZIP	16	Real Code	IP67	not specified	Dark Grey	499001
428527520917	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-ROTV (rev24a).IntLib \| 1.6 MB CDS Cadence_WS-ROTV (rev24a).zip \| 6.6 MB EAG Eagle_WS-ROTV (rev24a).lbr \| 118.2 KB CAD files ZIP IGS 428527520917 (rev1).igs \| 1.9 MB STP 428527520917 (rev1).stp \| 696 KB Download all 5 files as zip archive ZIP	16	Complement Code	IP67	not specified	Ivory	499001

	Order Code	Datasheet
	428527520908	SPEC
	428527520909	SPEC
	428527520910	SPEC
	428527520911	SPEC
	428527520916	SPEC
	428527520917	SPEC

Samples

	Order Code	Datasheet	Downloads	Number of Position (Value)	Code	Ingress Protection Code	Vaporphase process	Actuator Color	Design Kit	Samples

Switch IP Product Portfolio

Switches for IP applications

Würth Elektronik offers IP67 classified rotary switches as well as tact switches. Tested according to IEC61058 and IEC60068, these components are ideally designed for use in harsh industrial environments.If you would like to know more about the IP certified products, your Würth Elektronik field sales will be happy to provide you with advice and support.
