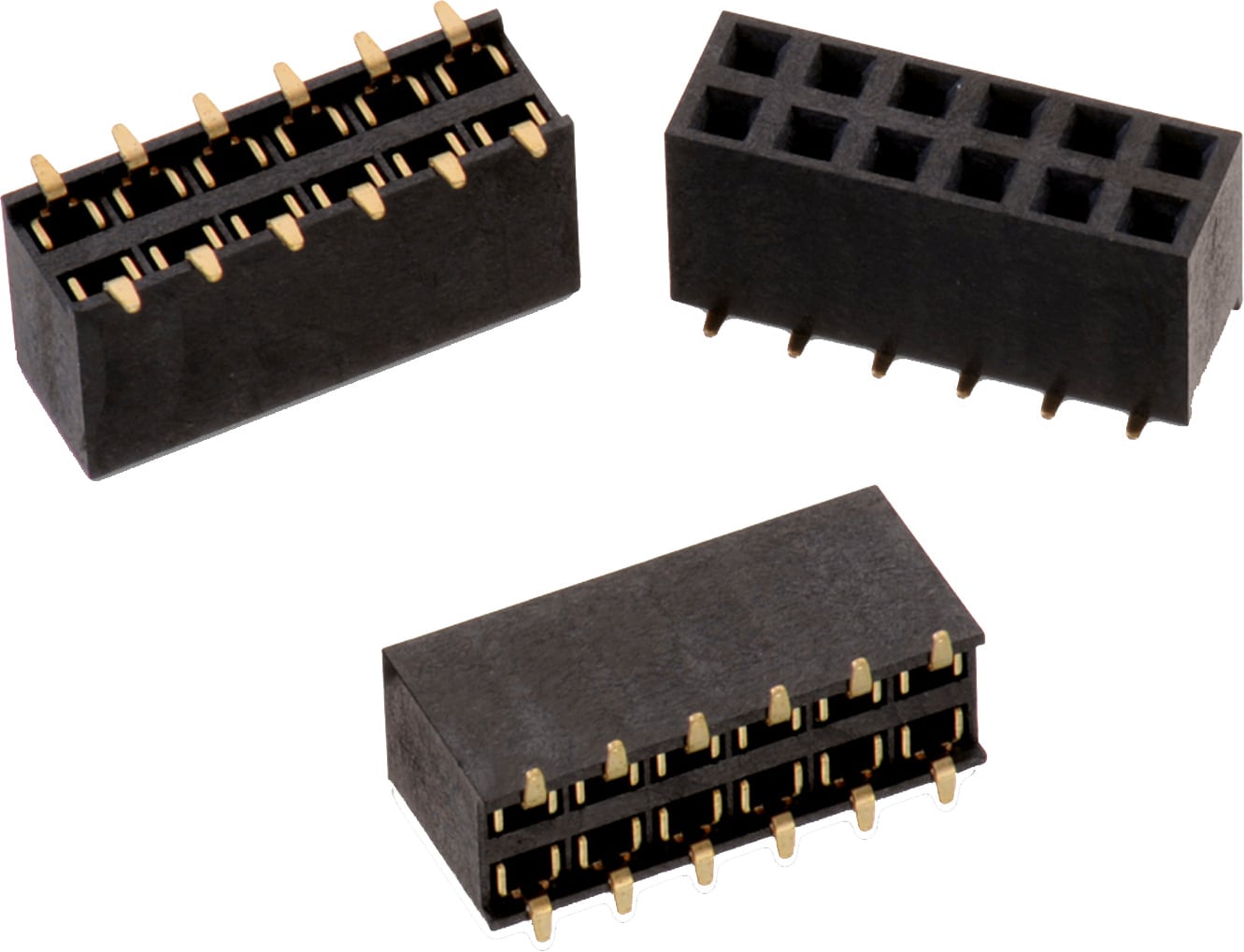

WR-PHD 2.54 mm SMT Dual Socket Header (Reel) | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyBoard-to-Board Connectors Product sub-familyWR-PHD Pin Header & Socket Header Pitch2.54 mm TypeSocket Header Product seriesWR-PHD 2.54 mm SMT Dual Socket Header (Reel)

Article Properties
Pins	4 mm; 6 mm; 8 mm; 10 mm; 12 mm; 14 mm; 16 mm; 18 mm; 20 mm; 22 mm; 24 mm; 26 mm

Kind Properties
Pitch	2.54 mm
Rows	Dual
Gender	Socket Header
Type	Straight Type 2

Material Properties
Insulator Material	Nylon 9T; PA46
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 up to +105 °C

Electrical Properties
I_R	3 A
Withstanding Voltage	600 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Cap

Products

Order Code	Datasheet	Downloads	Pins (mm)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
61030421821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61030421821_1 (rev1).pdf \| 56.9 KB IGS 61030421821 (rev1).igs \| 775 KB STP 61030421821 (rev1).stp \| 301.1 KB Download all 6 files as zip archive ZIP	4	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	–
61030621821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61030621821_1 (rev1).pdf \| 65.6 KB IGS 61030621821 (rev1).igs \| 908.6 KB STP 61030621821 (rev1).stp \| 354.8 KB Download all 6 files as zip archive ZIP	6	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	–
61030821821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61030821821_1 (rev1).pdf \| 71.4 KB IGS 61030821821 (rev1).igs \| 1 MB STP 61030821821 (rev1).stp \| 408.6 KB Download all 6 files as zip archive ZIP	8	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	613001
61031021821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61031021821_1 (rev1).pdf \| 78.1 KB IGS 61031021821 (rev1).igs \| 1.2 MB STP 61031021821 (rev1).stp \| 462.3 KB Download all 6 files as zip archive ZIP	10	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	613001
61031221821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61031221821_1 (rev1).pdf \| 84.9 KB IGS 61031221821 (rev1).igs \| 1.3 MB STP 61031221821 (rev1).stp \| 516.1 KB Download all 6 files as zip archive ZIP	12	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	–
61031421821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61031421821_1 (rev1).pdf \| 91.7 KB IGS 61031421821 (rev1).igs \| 1.4 MB STP 61031421821 (rev1).stp \| 569.8 KB Download all 6 files as zip archive ZIP	14	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	–
61031621821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61031621821_1 (rev1).pdf \| 98.5 KB IGS 61031621821 (rev1).igs \| 1.5 MB STP 61031621821 (rev1).stp \| 625 KB Download all 6 files as zip archive ZIP	16	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	–
61031821821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61031821821_1 (rev1).pdf \| 105.4 KB IGS 61031821821 (rev1).igs \| 1.7 MB STP 61031821821 (rev1).stp \| 680.5 KB Download all 6 files as zip archive ZIP	18	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	–
61032021821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61032021821_1 (rev1).pdf \| 111.9 KB IGS 61032021821 (rev1).igs \| 1.8 MB STP 61032021821 (rev1).stp \| 736.1 KB Download all 6 files as zip archive ZIP	20	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	613001
61032221821	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP IGS 61032221821 (rev1).igs \| 1.9 MB STP 61032221821 (rev1).stp \| 791.7 KB Download all 5 files as zip archive ZIP	22	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	–
61032421821	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP IGS 61032421821 (rev1).igs \| 2.1 MB STP 61032421821 (rev1).stp \| 847.5 KB Download all 5 files as zip archive ZIP	24	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	–
61032621821	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP IGS 61032621821 (rev1).igs \| 2.2 MB STP 61032621821 (rev1).stp \| 903.5 KB Download all 5 files as zip archive ZIP	26	Dual	Socket Header	Straight Type 2	3	Tape and Reel with Cap	–
