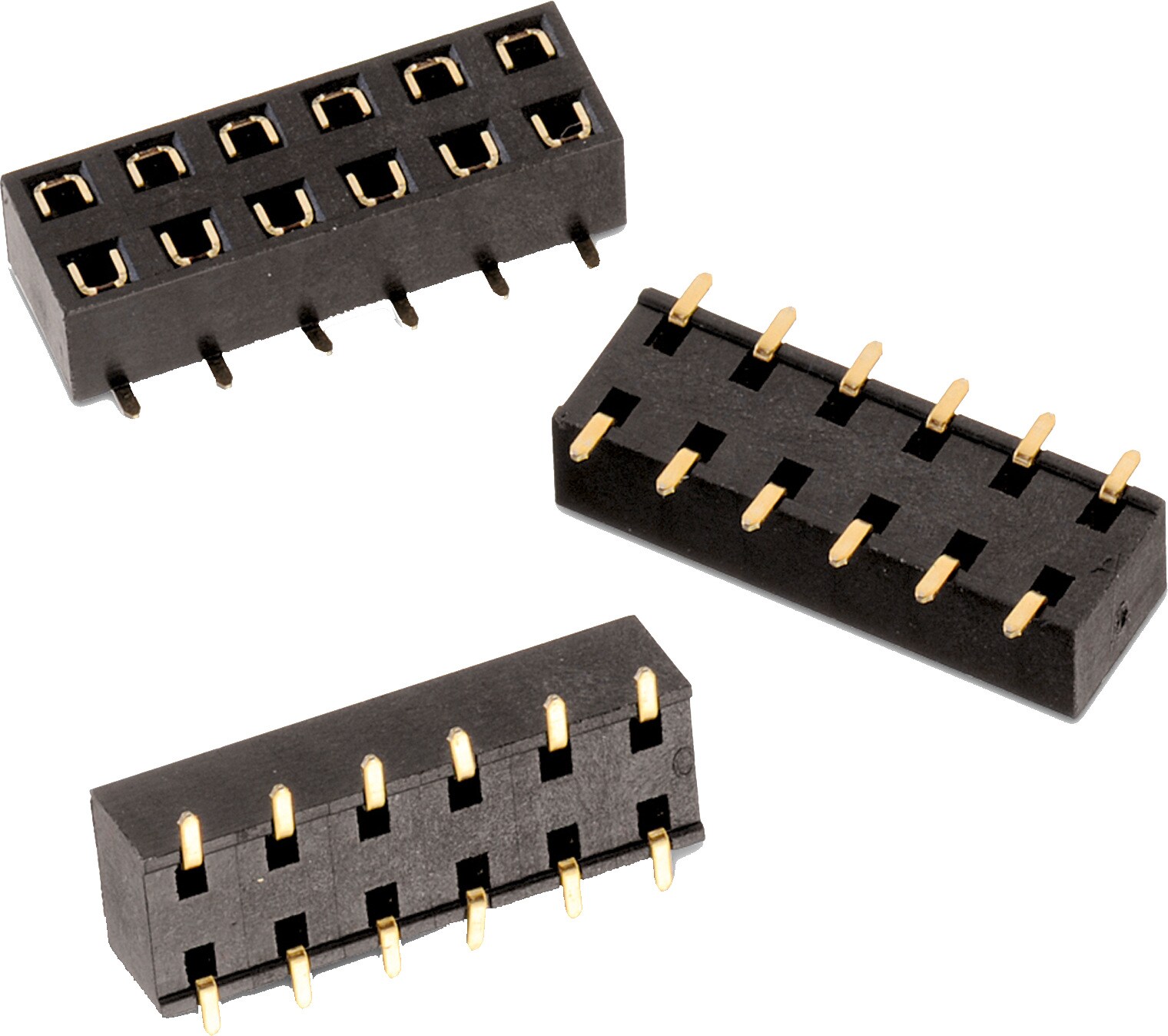

WR-PHD 2.54 mm SMT Dual Socket Header Bottom Entry (Reel)

Article Properties
Pins 4 mm; 6 mm; 8 mm; 10 mm; 12 mm; 16 mm; 18 mm; 20 mm
Kind Properties
Pitch 2.54 mm
Quality Class 3 as per CECC 75 301-802
Rows Dual
Gender Socket Header
Type Bottom Entry Large
Material Properties
Insulator Material PA6T
Insulator Flammability Rating UL94 V-0
Contact Material Copper Alloy
Contact Plating Gold
Contact Type Stamped
General Information
Operating Temperature -40 up to +125 °C
Compliance Lead free / RoHS
Electrical Properties
Rated Current 3 A
IR 1 3 A
Withstanding Voltage 500 V (AC)
Contact Resistance 20 mΩ
RISO 1000 MΩ
Certification
UL Approval E323964
Packaging Properties
Packaging Tape and Reel with Cap

Products

Order Code Data­sheet Downloads Pins
(mm)
Rows Gender Type IR
(A)
Packaging Samples
610304243021
IGE STE 3D ALT EAG CAD 4 Dual Socket Header Bottom Entry Large 3 Tape and Reel with Cap
610306243021
IGE STE 3D ALT EAG CAD 6 Dual Socket Header Bottom Entry Large 3 Tape and Reel with Cap
610308243021
IGE STE 3D ALT EAG CAD 8 Dual Socket Header Bottom Entry Large 3 Tape and Reel with Cap
610310243021
IGE STE 3D ALT EAG CAD 10 Dual Socket Header Bottom Entry Large 3 Tape and Reel with Cap
610312243021
IGE STE 3D ALT EAG CAD 12 Dual Socket Header Bottom Entry Large 3 Tape and Reel with Cap
610316243021
IGE STE 3D ALT EAG CAD 16 Dual Socket Header Bottom Entry Large 3 Tape and Reel with Cap
610318243021
IGE STE 3D ALT EAG CAD 18 Dual Socket Header Bottom Entry Large 3 Tape and Reel with Cap
610320243021
IGE STE 3D ALT EAG CAD 20 Dual Socket Header Bottom Entry Large 3 Tape and Reel with Cap
Order Code Data­sheet
610304243021
610306243021
610308243021
610310243021
610312243021
610316243021
610318243021
610320243021
