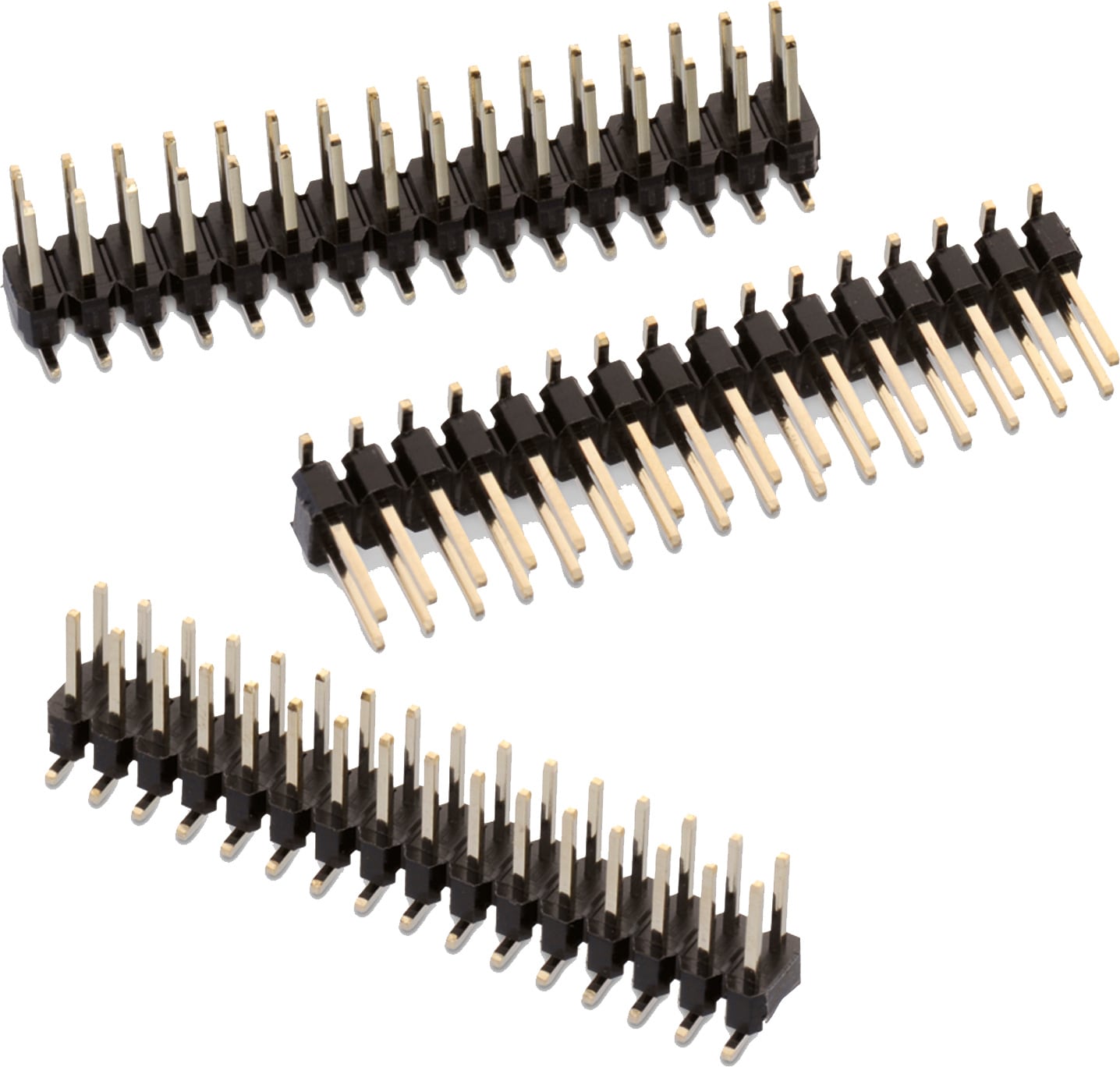

WR-PHD 2.54 mm SMT Dual Pin Header (Reel) | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyBoard-to-Board Connectors Product sub-familyWR-PHD Pin Header & Socket Header Pitch2.54 mm TypePin Header Product seriesWR-PHD 2.54 mm SMT Dual Pin Header (Reel)

Article Properties
Pins	4 mm; 6 mm; 8 mm; 10 mm; 12 mm; 14 mm; 16 mm; 20 mm

Kind Properties
Pitch	2.54 mm
Rows	Dual
Gender	Pin Header
Type	Straight

Material Properties
Insulator Material	Nylon 6T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 up to +105 °C

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Cap

Products

Order Code	Datasheet	Downloads	Pins (mm)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
61030421121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61030421121_1 (rev1).pdf \| 25.7 KB IGS 61030421121 (rev1).igs \| 324.8 KB STP 61030421121 (rev1).stp \| 132.8 KB Download all 6 files as zip archive ZIP	4	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–
61030621121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61030621121_1 (rev1).pdf \| 35.2 KB IGS 61030621121 (rev1).igs \| 451.8 KB STP 61030621121 (rev1).stp \| 176.7 KB Download all 6 files as zip archive ZIP	6	Dual	Pin Header	Straight	3	Tape and Reel with Cap	613001
61030821121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61030821121_1 (rev1).pdf \| 39.1 KB IGS 61030821121 (rev1).igs \| 566.2 KB STP 61030821121 (rev1).stp \| 220.6 KB Download all 6 files as zip archive ZIP	8	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–
61031021121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61031021121_1 (rev1).pdf \| 45 KB IGS 61031021121 (rev1).igs \| 680.8 KB STP 61031021121 (rev1).stp \| 264.5 KB Download all 6 files as zip archive ZIP	10	Dual	Pin Header	Straight	3	Tape and Reel with Cap	613001
61031221121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61031221121_1 (rev1).pdf \| 50.9 KB IGS 61031221121 (rev1).igs \| 795.4 KB STP 61031221121 (rev1).stp \| 308.5 KB Download all 6 files as zip archive ZIP	12	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–
61031421121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61031421121_1 (rev1).pdf \| 56.9 KB IGS 61031421121 (rev1).igs \| 909.9 KB STP 61031421121 (rev1).stp \| 352.3 KB Download all 6 files as zip archive ZIP	14	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–
61031621121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61031621121_1 (rev1).pdf \| 62.9 KB IGS 61031621121 (rev1).igs \| 1 MB STP 61031621121 (rev1).stp \| 396.3 KB Download all 6 files as zip archive ZIP	16	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–
61032021121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev20a).IntLib \| 33 MB CDS Cadence_WR-PHD (rev19a).zip \| 45.1 MB EAG Eagle_WR-PHD (rev19a).lbr \| 5 MB CAD files ZIP 3D 61032021121_1 (rev1).pdf \| 74.7 KB IGS 61032021121 (rev1).igs \| 1.2 MB STP 61032021121 (rev1).stp \| 484.1 KB Download all 6 files as zip archive ZIP	20	Dual	Pin Header	Straight	3	Tape and Reel with Cap	–

Order Code	Datasheet
61030421121	SPEC
61030621121	SPEC
61030821121	SPEC
61031021121	SPEC
61031221121	SPEC
61031421121	SPEC
61031621121	SPEC
61032021121	SPEC

Samples

Order Code	Datasheet	Downloads	Pins (mm)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.54 mm Angled Dual Socket Header

WR-PHD 2.54 mm Dual Socket Header Bottom Entry Large

WR-PHD 2.54 mm Dual Socket Header Bottom Entry

WR-PHD 2.54 mm Dual Socket Header

WR-PHD 2.54 mm Jumper with Test Point & Pullback

WR-PHD 2.54 mm Multi-Jumper Jumper with Test Point

WR-PHD 2.54 mm PCB Socket Header - SMT Type - Double Row - Right Angle

WR-PHD 2.54 mm SMT Dual Socket Header (Reel)

WR-PHD 2.54 mm SMT Dual Socket Header Bottom Entry (Reel)

WR-PHD 2.54 mm SMT Dual Socket Header Bottom Entry

WR-PHD 2.54 mm SMT Socket Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
