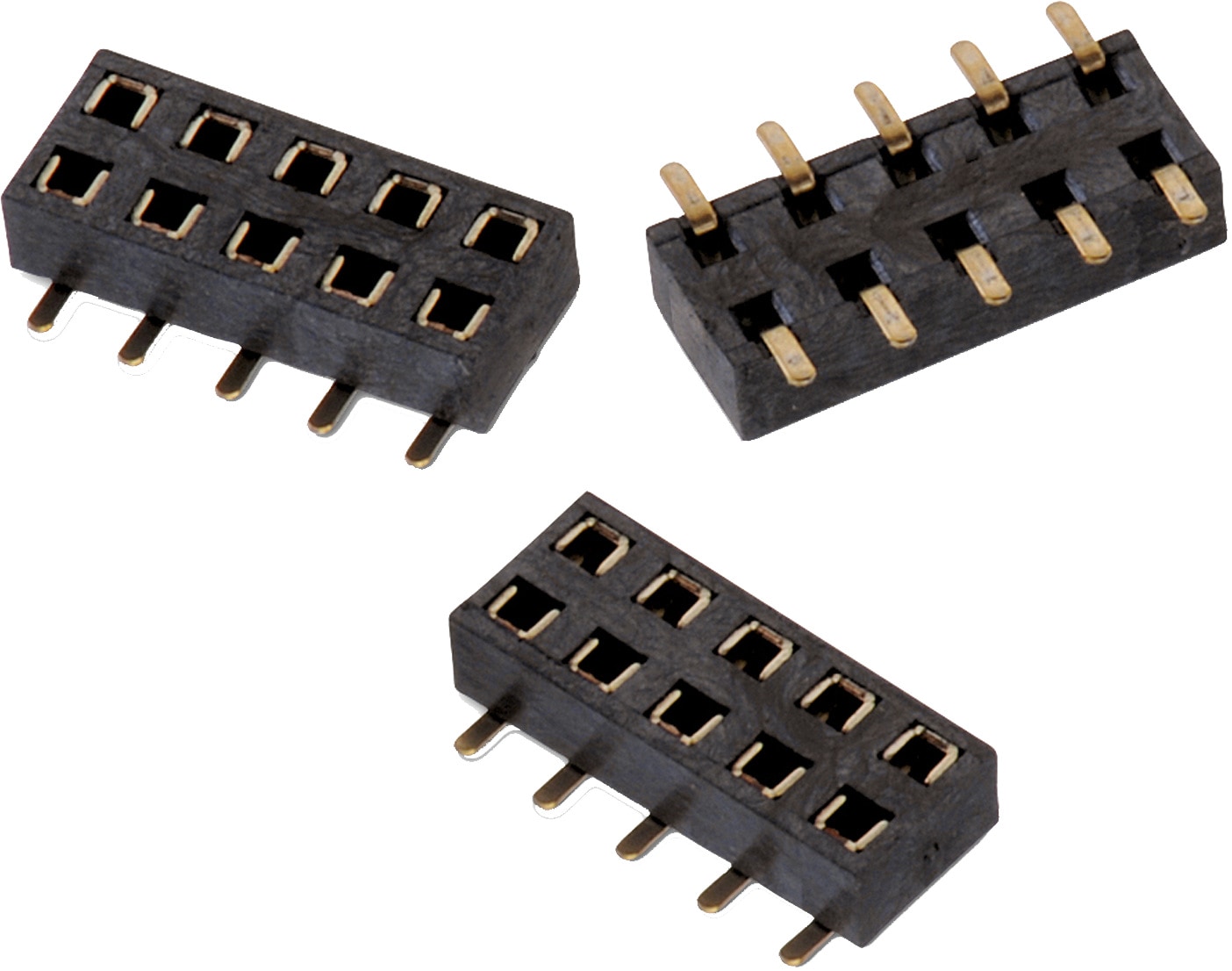

WR-PHD 2.00 mm Dual SMT Socket Header Low Profile Bottom Entry | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyBoard-to-Board Connectors Product sub-familyWR-PHD Pin Header & Socket Header Pitch2.00 mm TypeSocket Header Product seriesWR-PHD 2.00 mm Dual SMT Socket Header Low Profile Bottom Entry

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4; 6; 8; 10; 14; 16; 20; 24

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	2 mm
Durability	50 Cycles
Rows	Dual
Gender	Socket Header
Type	Straight

Electrical Properties
I_R	2 A
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Cap; Tube

Products

Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
62100421821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62100421821_1 (rev1).pdf \| 59 KB IGS Download_IGES_62100421821 (rev1).iges \| 719 KB STP 62100421821 (rev1).stp \| 162.7 KB	4	Dual	Socket Header	Straight	2	Tube	–
62130421821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62130421821_1 (rev1).pdf \| 67.4 KB IGS Download_IGES_62130421821 (rev1).iges \| 840 KB STP 62130421821 (rev1).stp \| 190 KB	4	Dual	Socket Header	Straight	2	Tape and Reel with Cap	613001
62100621821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62100621821_1 (rev1).pdf \| 68.2 KB IGS Download_IGES_62100621821 (rev1).iges \| 853 KB STP 62100621821 (rev1).stp \| 195.1 KB	6	Dual	Socket Header	Straight	2	Tube	–
62130621821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62130621821_1 (rev1).pdf \| 76.6 KB IGS Download_IGES_62130621821 (rev1).iges \| 973.9 KB STP 62130621821 (rev1).stp \| 222.3 KB	6	Dual	Socket Header	Straight	2	Tape and Reel with Cap	613001
62100821821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62100821821_1 (rev1).pdf \| 74.5 KB IGS Download_IGES_62100821821 (rev1).iges \| 983.9 KB STP 62100821821 (rev1).stp \| 228.1 KB	8	Dual	Socket Header	Straight	2	Tube	–
62130821821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62130821821_1 (rev1).pdf \| 82.9 KB IGS Download_IGES_62130821821 (rev1).iges \| 1.1 MB STP 62130821821 (rev1).stp \| 255.3 KB	8	Dual	Socket Header	Straight	2	Tape and Reel with Cap	–
62101021821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62101021821_1 (rev1).pdf \| 81.8 KB IGS Download_IGES_62101021821 (rev1).iges \| 1.1 MB STP 62101021821 (rev1).stp \| 261.8 KB	10	Dual	Socket Header	Straight	2	Tube	–
62131021821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62131021821_1 (rev1).pdf \| 90.2 KB IGS Download_STP_62131021821 (rev1).iges \| 1.2 MB STP 62131021821 (rev1).stp \| 289 KB	10	Dual	Socket Header	Straight	2	Tape and Reel with Cap	613001
62101421821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62101421821_1 (rev1).pdf \| 96.5 KB IGS Download_IGES_62101421821 (rev1).iges \| 1.4 MB STP 62101421821 (rev1).stp \| 326.8 KB	14	Dual	Socket Header	Straight	2	Tube	–
62131421821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62131421821_1 (rev1).pdf \| 104.9 KB IGS Download_IGES_62131421821 (rev1).iges \| 1.5 MB STP 62131421821 (rev1).stp \| 354 KB	14	Dual	Socket Header	Straight	2	Tape and Reel with Cap	–
62101621821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62101621821_1 (rev1).pdf \| 103.9 KB IGS Download_IGES_62101621821 (rev1).iges \| 1.5 MB STP 62101621821 (rev1).stp \| 351.3 KB	16	Dual	Socket Header	Straight	2	Tube	–
62131621821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62131621821_1 (rev1).pdf \| 112.3 KB IGS Download_IGES_62131621821 (rev1).iges \| 1.6 MB STP 62131621821 (rev1).stp \| 378.5 KB	16	Dual	Socket Header	Straight	2	Tape and Reel with Cap	613001
62102021821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62102021821_1 (rev1).pdf \| 118.4 KB IGS Download_IGES_62102021821 (rev1).iges \| 1.7 MB STP 62102021821 (rev1).stp \| 415.3 KB	20	Dual	Socket Header	Straight	2	Tube	–
62132021821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62132021821_1 (rev1).pdf \| 126.8 KB IGS Download_IGES_62132021821 (rev1).iges \| 1.9 MB STP 62132021821 (rev1).stp \| 443.8 KB	20	Dual	Socket Header	Straight	2	Tape and Reel with Cap	–
62102421821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62102421821_1 (rev1).pdf \| 133.3 KB IGS Download_IGES_62102421821 (rev1).iges \| 2 MB STP 62102421821 (rev1).stp \| 481.8 KB	24	Dual	Socket Header	Straight	2	Tube	–
62132421821	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 62132421821_1 (rev1).pdf \| 141.7 KB IGS Download_IGES_62132421821 (rev1).iges \| 2.1 MB STP 62132421821 (rev1).stp \| 510.3 KB	24	Dual	Socket Header	Straight	2	Tape and Reel with Cap	–

Order Code	Datasheet
62100421821	SPEC
62130421821	SPEC
62100621821	SPEC
62130621821	SPEC
62100821821	SPEC
62130821821	SPEC
62101021821	SPEC
62131021821	SPEC
62101421821	SPEC
62131421821	SPEC
62101621821	SPEC
62131621821	SPEC
62102021821	SPEC
62132021821	SPEC
62102421821	SPEC
62132421821	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.00 mm THT Dual Pin Header

WR-PHD 2.00 mm SMT Dual Pin Header

WR-PHD 2.00 mm SMT Dual Pin Header Low Profile

WR-PHD 2.00 mm SMT Angled Dual Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
