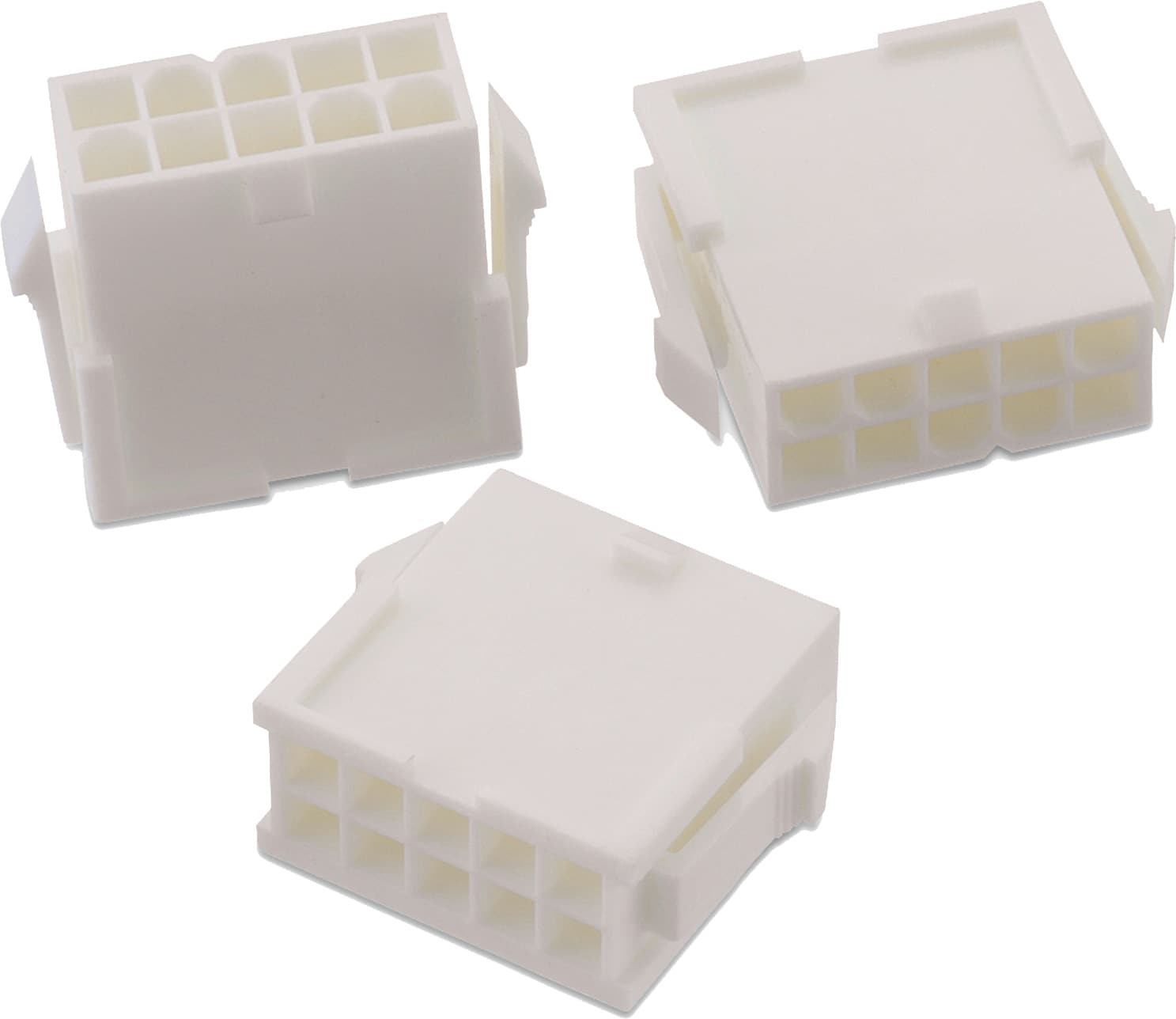

WR-MPC4 4.20 mm Male Dual Row Plug w. Panel Mounting Ears

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	White

General Information
Operating Temperature	-40 °C up to +105 °C
Withstanding Voltage	1500 V (AC)
R_ISO	1000 MΩ
Pitch	4.2 mm
Gender	Male

Certification
UL Approval	E323964

Wire Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Rows	PCB/Cable/Panel	Packaging	Design Kit	Samples
64900221822	SPEC	3 files CAD files ZIP 3D 64900221822_1 (rev1).pdf \| 53.8 KB IGS 64900221822 (rev1).iges \| 940.4 KB STP 64900221822 (rev1).stp \| 215.2 KB Download all 3 files as zip archive ZIP	2	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	649001
64900421822	SPEC	3 files CAD files ZIP 3D 64900421822_1 (rev1).pdf \| 89.2 KB IGS 64900421822 (rev1).iges \| 1.6 MB STP 64900421822 (rev1).stp \| 368.1 KB Download all 3 files as zip archive ZIP	4	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	649001
64900621822	SPEC	3 files CAD files ZIP 3D 64900621822_1 (rev1).pdf \| 127.9 KB IGS 64900621822 (rev1).iges \| 2.2 MB STP 64900621822 (rev1).stp \| 514.7 KB Download all 3 files as zip archive ZIP	6	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	649001
64900821822	SPEC	3 files CAD files ZIP 3D 64900821822_1 (rev1).pdf \| 154.8 KB IGS 64900821822 (rev1).iges \| 2.8 MB STP 64900821822 (rev1).stp \| 652.2 KB Download all 3 files as zip archive ZIP	8	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	649001
64901021822	SPEC	3 files CAD files ZIP 3D 64901021822_1 (rev1).pdf \| 183.5 KB IGS 64901021822 (rev1).iges \| 3.4 MB STP 64901021822 (rev1).stp \| 787 KB Download all 3 files as zip archive ZIP	10	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	649001
64901221822	SPEC	3 files CAD files ZIP 3D 64901221822_1 (rev1).pdf \| 212.3 KB IGS 64901221822 (rev1).iges \| 3.9 MB STP 64901221822 (rev1).stp \| 929.7 KB Download all 3 files as zip archive ZIP	12	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	649001
64901421822	SPEC	3 files CAD files ZIP 3D 64901421822_1 (rev1).pdf \| 242.2 KB IGS 64901421822 (rev1).iges \| 4.5 MB STP 64901421822 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	14	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	649001
64901621822	SPEC	3 files CAD files ZIP 3D 64901621822_1 (rev1).pdf \| 264 KB IGS 64901621822 (rev1).iges \| 5.1 MB STP 64901621822 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	16	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	649001
64901821822	SPEC	3 files CAD files ZIP 3D 64901821822_1 (rev1).pdf \| 300.3 KB IGS 64901821822 (rev1).iges \| 5.7 MB STP 64901821822 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	18	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	649001
64902021822	SPEC	3 files CAD files ZIP 3D 64902021822_1 (rev1).pdf \| 329 KB IGS 64902021822 (rev1).iges \| 6.3 MB STP 64902021822 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	20	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	649001
64902221822	SPEC	3 files CAD files ZIP 3D 64902221822_1 (rev1).pdf \| 359 KB IGS 64902221822 (rev1).iges \| 6.8 MB STP 64902221822 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	22	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	–
64902421822	SPEC	3 files CAD files ZIP 3D 64902421822_1 (rev1).pdf \| 388.4 KB IGS 64902421822 (rev1).iges \| 7.4 MB STP 64902421822 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	24	4.2	Male	Plug Housing	Dual	Cable/Panel	Bag	–
