OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyBoard-to-Board ConnectorsProduct sub-familyWR-MM MiniModuleGenderWR-MM Female Connector w/o Latch & w/o Polarization

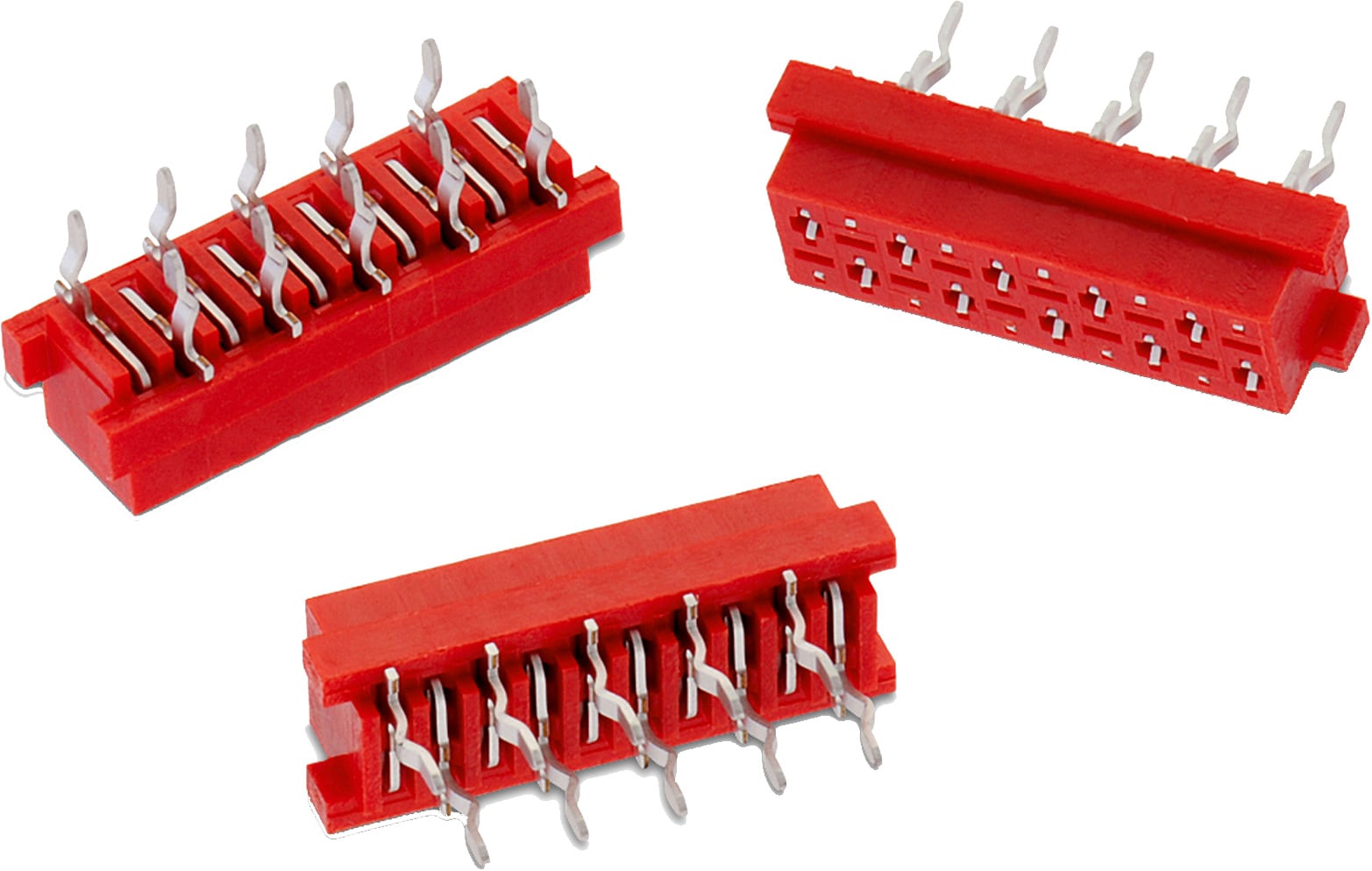

WR-MM Female Connector w/o Latch & w/o Polarization

Material Properties
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorRed
Contact MaterialPhosphor Bronze
Contact PlatingMatte Tin over Nickel
Contact TypeStamped
General Information
Operating Temperature-40 °C up to +105 °C
Pitch2.54 mm
GenderFemale
Electrical Properties
Working Voltage250 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance10 mΩ
RISO1000 MΩ
Packaging Properties
cULus ApprovalE323964
PackagingTube

Products

Order Code Data­sheet DownloadsPinsTest Condition PGenderTypeIR
(A)
PackagingDesign Kit Samples
690367180472SPEC
6 files 4 per Row Female Straight 1.5 Tube690001
690367180672SPEC
6 files 6 per Row Female Straight 1.5 Tube690001
690367180872SPEC
6 files 8 per Row Female Straight 1.5 Tube690001
690367181072SPEC
6 files 10 per Row Female Straight 1.5 Tube612690
690001
690367181272SPEC
6 files 12 per Row Female Straight 1.5 Tube690001
690367181472SPEC
6 files 14 per Row Female Straight 1.5 Tube690001
690367181672SPEC
6 files 16 per Row Female Straight 1.5 Tube690001
690367181872SPEC
6 files 18 per Row Female Straight 1.5 Tube690001
690367182072SPEC
6 files 20 per Row Female Straight 1.5 Tube690001
690367182272SPEC
6 files 22 per Row Female Straight 1.5 Tube690001
690367182472SPEC
6 files 24 per Row Female Straight 1.5 Tube690001
690367182672SPEC
6 files 26 per Row Female Straight 1.5 Tube690001
Order Code Data­sheet
690367180472SPEC
690367180672SPEC
690367180872SPEC
690367181072SPEC
690367181272SPEC
690367181472SPEC
690367181672SPEC
690367181872SPEC
690367182072SPEC
690367182272SPEC
690367182472SPEC
690367182672SPEC
Samples
Order Code Data­sheet DownloadsPinsTest Condition PGenderTypeIR
(A)
PackagingDesign Kit Samples
