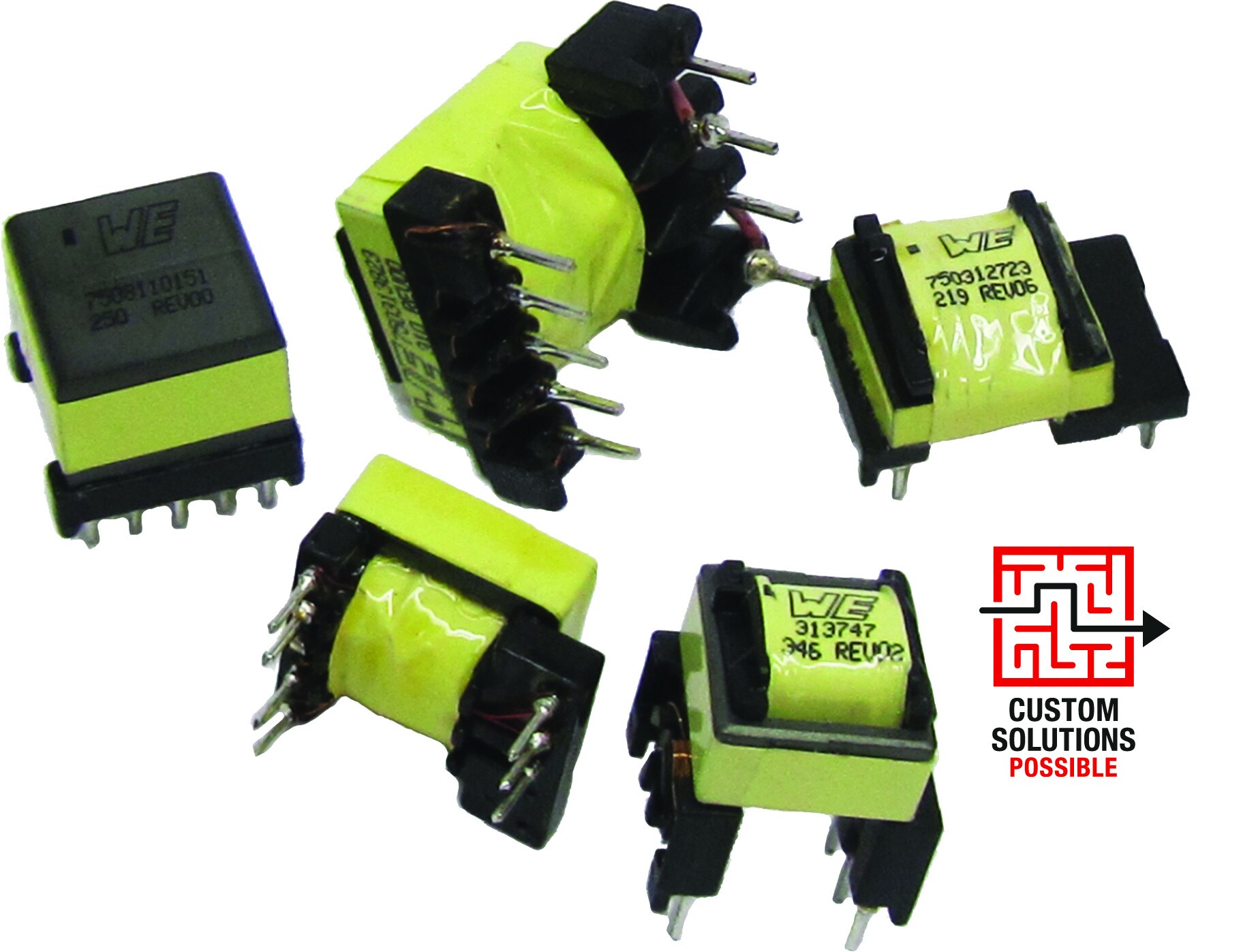

MID-OLTI Offline Flyback Transformers for Texas Instruments

Characteristics

  • Universal, US or European offline input voltage
  • Small size
  • Low leakage inductance
  • Multiple-output options

Applications

  • Industrial controls
  • USB chargers
  • Metering
  • Process controls
  • Factory automation
  • Security systems
  • Garage door opener auxiliary supplies

Products

All
EE13/6/6
EE13/7/4
EE16/7/5
EE16/8/5
EE20/10/6
EE25/13/7
EFD20
EFD25
EP7
EP13
EPC13
EPC17
EPW15
ER9.5
ER28/14
ER28/17
ERL35
ETD29
ETD39
PQ2625
PQ3220
PQ3230
RM6
RM8
RM10
Order Code Data­sheet Simu­lation DownloadsVINVOut1
(V)
IOut1
(mA)
VOut2
(V)
IOut2
(mA)
VOut3
(V)
IOut3
(A)
VOut4
(V)
IOut4
(A)
Vaux
(V)
Vaux 1
(V)
Vaux 2
(V)
Vaux 3
(V)
fswitch
(kHz)
L
(mH)
NPRI : NSEC : NAUXISAT
(mA)
VT
(V (AC))
L
(mm)
W
(mm)
H
(mm)
MountSize Samples
750370271SPEC
4 files 19 - 265 V (AC) 12 55 15 130 4 3.59:1:1.25 150 2500 13.8 23.9 11 SMT EE13/7/4
750314307SPEC
4 files 20 - 265 V (AC) 24 30 28 160 15 130 0.5 2.33:1.17:1:0.62 680 3000 17.78 26.1 13.8 SMT EE16/8/5
750316908SPEC
5 files 24 - 375 V (DC) 24 35 5 35 8 60 0.45 13.5 : 4 : 1 : 1.5 500 3000 13.72 18.2 10.5 SMT EE13/7/4
750318119SPEC
3 files 40 - 380 V (DC) 5 1400 10 60 0.3 6:1:2 1700 3750 17.78 26.9 13.8 SMT EE16/8/5
750816130SPEC
4 files 42 - 318 V (AC) 15 250 15 110 0.4 3.4:1:1 1200 2000 13.72 20.45 10.16 THT EE13/7/4
750342851SPEC
7 files 43 - 318 V (AC) 24 1000 15 70 15 0.065 15 0.065 15 75 0.15 3.75:1.5:1:1:1:1 2780 3125 27.05 32.25 22.86 THT EE25/13/7
750314940SPEC
4 files 50 - 283 V (AC) 15 25 100 4 2.75:1 110 625 9.78 9.5 10.54 SMT EP7
750315315SPEC
4 files 57 - 452 V (AC) 24 500 6 1500 15.5 110 0.4 12:4:1:2.67 1600 9200 26.3 33 14.75 THT EFD25
7508110127SPEC
5 files 58 - 265 V (AC) 5 1000 15 120 1.05 14.16:1:3.17 500 4000 13.97 14.22 12.7 THT EP13
750343068SPEC
4 files 60 - 283 V (AC) 24 2500 18 65 0.23 3.89:1:0.83 4400 3750 29.2 30.35 29.3 THT PQ2625
750343466SPEC
4 files 60 - 282 V (AC) 24 1500 16.5 100 0.28 4.29 : 1 : 0.72 1880 3000 22.2 25 16.5 THT EE20/10/6
7508113417SPEC
5 files 64 - 265 V (AC) 19 3850 11 30 - 130 0.14 3.25:1:0.583 9100 3750 32 39 26 THT ER28/17
7508110325SPEC
4 files 64 - 265 V (AC) 12 500 18 100 1.5 7.82:1:1.45 330 4000 20.32 24.38 16 THT EE16/8/5
750811227SPEC
4 files 64 - 265 V (AC) 10.5 2000 21 120 0.3 7:1:2 1500 3750 22.2 25 16 THT EE20/10/6
7508110347SPEC
4 files 64 - 283 V (AC) 12 670 15 10 110 1.2 8.75:1:1.25:0.875 625 4600 22.2 25 16 THT EE20/10/6
7508112328SPEC
5 files 69 - 264 V (AC) 12 2000 12 30 - 130 0.6 7:1:2.36 2600 3750 27.05 32.25 22.86 THT EE25/13/7
7508110329SPEC
5 files 70 - 265 V (AC) 15 340 15 130 0.7 5.5:1:1 575 4000 16.9 18.8 13.31 THT EE16/7/5
750343306SPEC
4 files 70 - 300 V (AC) 12 250 12 3000 100 0.36 9.5:1:1 1550 3750 22.2 26 16.76 THT EE20/10/6
750343332SPEC
5 files 70 - 283 V (AC) 5 100 62 20.18 12.61:1 1500 10.16 8.26 9.78 THT EP7
750343661SPEC
4 files 70 - 300 V (AC) 15 250 5 2000 85 0.5 16 : 2.75 : 1 : 2.75 3000 22.2 25.8 16 THT EE20/10/6
750312170SPEC
4 files 71 - 262 V (AC) 5 5000 16 130 0.4 22:1:3.33 1250 1500 21.59 24.38 16 THT EE16/8/5
750342279SPEC
5 files 71 - 283 V (AC) 12 2000 -2 250 8 0.625 15 50 - 130 0.45 12.25:1.75:2:1:2 4000 30.51 24 33 THT ER28/14
750342792SPEC
4 files 71 - 601 V (AC) 250 25 250 25 15 70 0.736 1:2.88:2.88:0.18 2500 17.96 20.3 14.3 THT EE16/8/5
750314878SPEC
4 files 71 - 440 V (AC) 18.7 100 13 50 4.7 0.2 74 1.5 25.67:4.54:2.66:1 1875 13.97 13.97 12.7 THT EP13
750315313SPEC
4 files 71 - 265 V (AC) 5 400 50 10 20:1 150 1875 13.46 17.75 12.7 SMT EP13
750315314SPEC
4 files 71 - 265 V (AC) 12 30 3.3 400 50 10 30:2.38:1 150 1875 13.46 17.75 12.7 SMT EP13
750817930SPEC
5 files 71 - 481 V (AC) 12 700 12 700 12 0.7 18 100 0.35 7:1:1:1:1.5 1800 3750 22.2 25 16 THT EE20/10/6
750343140SPEC
4 files 71 - 301 V (AC) 12 100 12 4 52 2.5 8:1:0.64:0.36 3000 14.2 20.45 15 THT EE13/6/6
750315942SPEC
4 files 71 - 254 V (AC) 18 350 5 350 85 1 23.33:2.33:1 450 625 17.96 20.3 14.3 THT EE16/8/5
750811438SPEC
4 files 78 - 269 V (AC) 12 125 6 130 12 80 0.75 14:2:1:2 1800 3750 22.2 25 16 THT EE20/10/6
750316711SPEC
4 files 78 - 325 V (AC) 13 100 13 90 1.5 7 : 1 : 1 640 3000 13.72 20.45 10.16 THT EE13/7/4
750315783SPEC
4 files 80 - 291 V (AC) 9 4220 15 100 0.1 7:1:2 3300 4400 22.2 25 16 THT EE20/10/6
750344701SPEC
3 files 80 - 276 V (DC) 5 850 24 350 17.6 80 0.76 13:1:3.57:3.14 3000 20.32 24.38 16 THT EE16/8/5
750813046SPEC
5 files 85 - 135 V (AC) 26.6 250 12 72 1.44 3.94:1:0.47 600 4500 16.9 18.8 13.31 THT EE16/7/5
750310787SPEC
4 files 85 - 130 V (AC) 12 420 14.5 100 2.8 11.57:1:1.21 2000 17.96 20.3 14.3 THT EE16/8/5
750811146SPEC
4 files 85 - 265 V (AC) 38 350 17 130 0.43 2.91:1:0.45 1600 3750 22.25 14.4 22.86 THT EE20/10/6
750811148SPEC
4 files 85 - 265 V (AC) 30 230 16.2 130 0.43 2.91:1:0.54 3750 22.25 14.4 22.86 THT EE20/10/6
750311959SPEC
4 files 85 - 130 V (AC) 20 1430 20 80 0.54 5:1:0.833 2200 1875 26.04 26.67 13.59 THT EFD25
750313747SPEC
4 files 85 - 265 V (AC) 5 1200 20 92 - 106 0.96 14.66:1:3.66 560 3000 15 15.75 18.5 THT EE13/6/6
750313959SPEC
4 files 85 - 265 V (AC) 12 250 18 100 1.8 8:1:1.47 290 4500 13.72 20.45 10.41 THT EE13/7/4
750811445SPEC
4 files 85 - 265 V (AC) 24 200 5 500 18 100 1.5 4:1:0.76 520 4500 20.32 24.38 16 THT EE16/8/5
750312723SPEC
4 files 85 - 265 V (AC) 5 1000 20 130 0.925 15.33:1:4 440 4500 14.22 20.45 10.41 THT EE13/7/4
7508110151SPEC
5 files 85 - 265 V (AC) 5 1000 15 70 1.5 15.42:1:3.14 425 4000 13.97 13.97 12.7 THT EP13
750342104SPEC
5 files 85 - 265 V (AC) 12 500 12 80 1.35 6.68:1:1 3000 16.9 18.8 13.31 THT EE16/7/5
750313823SPEC
4 files 85 - 265 V (AC) 5.3 2550 25 80 0.367 13:1:4.37 2200 4500 20.32 24.38 16.51 THT EE16/8/5
750811434SPEC
4 files 85 - 265 V (AC) 16.5 300 5 1000 16.5 140 - 500 0.77 18:6:1:6 800 3000 20.32 24.38 16 THT EE16/8/5
750370140SPEC
4 files 85 - 265 V (AC) 15 200 15 132 6 6.2:1:1 310 5000 22.2 25 16 THT EE20/10/6
750315092SPEC
5 files 85 - 265 V (AC) 20 3300 12 130 0.2 5.5:1:0.5 3200 2000 32.4 40 20.5 THT RM10
750313417SPEC
5 files 85 - 265 V (AC) 19 3430 10 70 - 130 0.4 6:1:0.55 3300 1875 27.03 32.31 13.97 SMT EFD25
750341603SPEC
5 files 85 - 264 V (AC) 22 350 22 70 1.8 5:1:1 4500 16.9 18.8 13.31 THT EE16/7/5
750313684SPEC
4 files 85 - 265 V (AC) 3.3 1500 12 100 0.95 20:1:4 475 4500 14.22 20.45 10.41 THT EE13/7/4
750341591SPEC
4 files 85 - 264 V (AC) 5 2000 21 65 1 15:1:4.3 3750 19 18.5 12.5 THT EPC17
750341448SPEC
4 files 85 - 265 V (AC) 12 1000 28 100 0.45 7:1:2.33 3000 23 22 17.53 THT EE20/10/6
750811647SPEC
4 files 85 - 265 V (AC) 17.4 1000 6.6 1000 18 100 0.25 10:1:2.5:2.75 1700 4375 22.2 26 16 THT EE20/10/6
750341657SPEC
4 files 85 - 265 V (AC) 5 1200 22 10 0.72 13:1:4.58 3000 10 15.62 2.75 THT EPC13
750342752SPEC
5 files 85 - 264 V (AC) 5.5 3000 12 50 0.515 15.5:1:2 3000 21.5 29 12 THT EFD20
750341872SPEC
4 files 85 - 265 V (AC) 5 1200 15 10 1.5 16.67:1:3 3000 10 15.62 14.1 THT EPC13
750341914SPEC
5 files 85 - 264 V (AC) 5 1500 15 70 1.47 16.875:1:2.25 3000 17.8 18.8 13.5 THT EE16/7/5
750341928SPEC
4 files 85 - 265 V (AC) 5 1000 18 70 1.35 15.66:1:3.67 3750 14.73 14.73 15.24 THT EE13/6/6
750314178SPEC
4 files 85 - 132 V (AC) 5 200 18 100 2.5 12:1:3 625 10 12.07 5.97 SMT ER9.5
750314445SPEC
4 files 85 - 132 V (AC) 5 200 18 100 2.5 12:1:3 135 2000 9.14 9.78 10.54 SMT EP7
7508111120SPEC
4 files 85 - 265 V (AC) 5 2000 19 65 0.667 12.28:1:3.27 940 3000 18.5 16.5 18.8 THT EE16/7/5
7508111111SPEC
5 files 85 - 265 V (AC) 5 2000 19 73 - 100 0.56 13.66:1:3.5 3000 14.73 14.73 15.24 THT EE13/6/6
750314727SPEC
4 files 85 - 265 V (AC) 12 2000 3.3 500 18 100 0.25 20:3.5:1:5.5 1800 4375 22.2 26 16 THT EE20/10/6
7508112339SPEC
4 files 85 - 265 V (AC) 12 3000 18 6 100 0.22 7:1:1.5:0.5 2200 4500 22.2 25 16.5 THT EE20/10/6
750313739SPEC
4 files 85 - 265 V (AC) 5 1200 17 115 1.1 16.5:1:3.5 650 4500 20.32 24.38 16 THT EE16/8/5
7508110331SPEC
4 files 85 - 265 V (AC) 15 250 15 130 0.5 3.25:1:1 500 3000 13.72 20.45 10.54 THT EE13/7/4
750841012SPEC
5 files 85 - 265 V (AC) 5 1200 12 70 1.66 16.875:1:2.25 3000 16.9 19.5 13.31 THT EE16/7/5
750841034SPEC
5 files 85 - 264 V (AC) 12 500 12 60 1.1 6:1:1 3000 16.9 18.8 13.31 SMT EE16/7/5
750315146SPEC
4 files 85 - 265 V (AC) 5 500 7 500 17 115 0.75 15.83:1.17:1:3 1000 2750 19 18.5 13 THT EPC17
7508110155SPEC
5 files 85 - 265 V (AC) 5 1600 16.2 30 - 130 0.5 15:1:3 4500 16.9 18.8 13.31 THT EE16/7/5
7508111323SPEC
4 files 85 - 265 V (AC) 12 1000 12 50 - 102 2 8:1:1 500 4000 17.78 26.9 13.8 SMT EE16/8/5
7508111329SPEC
4 files 85 - 265 V (AC) 12 900 22 15 100 0.4 6:1:1.83:0.5 700 3750 22.2 25 16 THT EE20/10/6
750315369SPEC
4 files 85 - 265 V (AC) 5 1500 16 47 - 64 0.825 16.5:1:3.5 850 4500 20.32 24.38 16 THT EE16/8/5
750315526SPEC
5 files 85 - 265 V (AC) 5 2000 20 100 0.435 13.2:1:3.8 1250 3900 17.5 18.8 13.8 THT EE16/7/5
750342288SPEC
4 files 85 - 264 V (AC) 5 2000 25 300 12 60 0.48 12.14:1:5.44:2 3750 23 22 17.53 THT EE20/10/6
750342946SPEC
4 files 85 - 265 V (AC) 24 6000 12.5 500 15 60 - 120 0.3 11:1.25:1:1.5 3750 35.56 37.34 34.29 THT PQ3230
7508112341SPEC
4 files 85 - 265 V (AC) 12 3000 12 60 - 120 0.38 7:1:1 3300 4500 26.3 33 14.76 THT EFD25
750343192SPEC
5 files 85 - 265 V (AC) 49 1000 16 70 0.16 1.67:1:0.33 3750 26.16 26.16 19.05 THT RM10
750811693SPEC
5 files 85 - 265 V (AC) 5 600 30 20 15 20 - 70 0.35 6.67:1.67:1:0.5 3700 3750 29.84 24 33 THT ER28/14
7508110338SPEC
4 files 85 - 265 V (AC) 12 500 24 100 1.5 7.82:1:2 325 4000 20.32 24.38 16 THT EE16/8/5
750315841SPEC
4 files 85 - 265 V (AC) 5 2000 11 16 60 0.75 13:1:2.25:3.25 3750 17.65 16.64 13.21 THT RM6
750343154SPEC
5 files 85 - 318 V (AC) 11 200 7.2 100 6 0.05 11.5 0.2 12.5 7.5 5 -7.2 65 0.41 14 : 1.5 : 1 : 1 : 1.75 3000 22.2 25 16.54 THT EE20/10/6
750343372SPEC
7 files 85 - 265 V (AC) 5 7000 15 70 0.15 14:1:3 3750 22.86 22.86 17.27 THT RM8
750316326SPEC
5 files 85 - 265 V (AC) 27 6000 12 120 0.25 4:1:0.5 7500 3600 36.5 44 28.5 THT ERL35
750316686SPEC
4 files 85 - 265 V (AC) 12 1000 12 70 0.5 6:1:1 925 3750 20.32 24.38 16 THT EE16/8/5
7508113423SPEC
5 files 85 - 265 V (AC) 23 2200 17 80 0.15 3.5 : 1 : 0.75 5800 3900 27.05 32.25 22.86 THT EE25/13/7
750343769SPEC
5 files 85 - 265 V (AC) 12 1125 3.3 300 12 50 0.62 16.8 : 2.4 : 1 : 2.4 3000 21.5 29 12.4 THT EFD20
750343920SPEC
5 files 85 - 300 V (AC) 7.2 60 7.2 150 7.2 0.03 16 0.25 13 80 2.3 17.6 : 1 : 1 : 1 : 2.2 : 1.8 4000 22.2 25 16 THT EE20/10/6
750343803SPEC
5 files 85 - 265 V (AC) 20 3250 70 450 0.075 5.5 : 1 : 3 3750 21.59 21.59 17.27 THT RM8
750811145SPEC
3 files 88 - 269 V (AC) 30 300 16 130 1.2 4.42:1:0.54 3750 22.25 14.4 22.86 THT EE20/10/6
750342415SPEC
4 files 88 - 275 V (AC) 15 800 25 66 0.856 6:1:1.5 4000 22.2 25 16 THT EE20/10/6
750311553SPEC
4 files 90 - 140 V (AC) 25 400 100 0.803 4:1 4500 20.32 24.38 16 THT EE16/8/5
750813045SPEC
4 files 90 - 130 V (AC) 19.5 350 12 30 - 140 2.4 10.72:1:0.818 400 5625 20.32 24.38 16 THT EE16/8/5
750813550SPEC
3 files 90 - 135 V (AC) 50 340 12.5 80 12.5 55 - 85 1.02 1.95:1:0.268 1500 3750 28.58 29.21 22.86 THT EE25/13/7
750811932SPEC
5 files 90 - 290 V (AC) 15 390 15 200 12 1.9 30 - 130 0.22 6.5:1.25:1.25:1 4000 22.2 25 16 THT EE20/10/6
750342999SPEC
4 files 90 - 270 V (AC) 9 750 15 5 50 0.97 8:1:0.54 3000 20.32 24.38 16 THT EE16/8/5
750813743SPEC
5 files 90 - 144 V (AC) 12 4050 12 4050 15 60 0.18 10:1:1:1 7300 3750 31 31 25 THT ER28/14
750343025SPEC
4 files 90 - 264 V (AC) 5 3000 10 50 0.65 15.4:1:2 1000 3750 21.84 29 13.46 THT EFD20
750317812SPEC
5 files 100 - 623 V (DC) 12 705 12 733 35 0.025 15 100 1.5 7:1:1:2.8:1.3 1600 4000 41.5 44.5 30 THT ERL35
750370833SPEC

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

5 files 102 - 440 V (AC) 12 1000 20 70 1.5 10.21 : 1 : 1.71 800 4000 21.24 20.78 16.8 THT EE20/10/6
750343004SPEC
5 files 106 - 286 V (AC) 24 3850 18 65 0.16 4:1:0.78 4700 3750 30.5 24 33 THT ER28/14
750316710SPEC
4 files 107 - 305 V (AC) 18 250 18 40 18 100 1.3 5 : 1 : 1 : 1 400 1610 20.32 24.38 16 THT EE16/8/5
750314848SPEC
4 files 108 - 305 V (AC) 3.6 100 10 100 4 10:1:3 100 500 9.78 9.14 10.54 SMT EP7
750343972SPEC
5 files 110 - 420 V (AC) 16 700 16 200 7.4 0.2 12.3 80 1 17.33 : 2.17 : 1 : 1.67 3000 22.2 25 16.5 THT EE20/10/6
750314382SPEC
4 files 113 - 707 V (AC) 12 1800 50 4.5 15:1 480 3300 22.25 14.4 23.24 THT EE20/10/6
750315727SPEC
4 files 120 - 265 V (AC) 3.5 120 26 60 4 20:1:6.67 105 3000 13.72 20.45 10.16 THT EE13/7/4
750317049SPEC
4 files 120 - 438 V (AC) 5 2000 8 300 19 70 1.1 15 : 1.5 : 1 : 3.5 950 4000 22.2 25 16 THT EE20/10/6
750317406SPEC
3 files 120 - 566 V (DC) 12 1100 4 10 25 100 0.6 21:3:1:6 600 4800 21.5 25 16 THT EE20/10/6
750316596SPEC
3 files 120 - 420 V (DC) 28 500 7 50 14 77 1 19.2:4:1:2 1100 4000 22.2 25 16 THT EE20/10/6
750318302SPEC
3 files 120 - 375 V (DC) 16.7 50 16.7 50 15 1 18 70 0.45 6:1:1.11:1.11:1.22 2500 3000 26.3 33 14.3 THT EFD25
750318383SPEC
3 files 120 - 375 V (DC) 12 300 7 2000 -15 0.3 15 66 0.68 17.6:1.6:1.12:1.12 1400 3750 21.5 29 12.45 THT EFD20
750316002SPEC
4 files 127 - 268 V (AC) 5 1000 12.5 800 20 100 0.85 20:1:2.25:4 1100 3750 22.2 25 16 THT EE20/10/6
750815330SPEC
5 files 134 - 265 V (AC) 12 4200 10.5 30 - 130 0.8 10:1:0.9 2600 3750 27.05 32.25 22.86 THT EE25/13/7
750315046SPEC
5 files 141 - 403 V (AC) 24 2100 24 60 1 8.67:1:1 2000 3750 27.05 32.25 22.86 THT EE25/13/7
750315241SPEC
4 files 141 - 283 V (AC) 36 1000 18 45 1.1 4:1:0.5 1300 3750 22.2 25 16 THT EE20/10/6
750315242SPEC
5 files 141 - 283 V (AC) 12 1800 12 1800 20 16 45 0.6 12:1:1:1.67:1.33 2300 3750 27.05 32.25 22.86 THT EE25/13/7
750370156SPEC
4 files 141 - 265 V (AC) 13 2500 26 5.2 90 0.52 12:1:2:0.5 3500 22.5 25 16 THT EE20/10/6
750315307SPEC
5 files 141 - 265 V (AC) 12 1000 12 1000 18 57 0.35 12:1:1:1.5 4000 3750 27.05 32.25 22.86 THT EE25/13/7
750315924SPEC
5 files 149 - 265 V (AC) 24 1900 24 14 60 0.73 4.74:1:1:0.58 3900 3750 31.1 24 36 THT ER28/17
750318431SPEC
3 files 150 - 420 V (DC) 24.35 2750 16.5 170 - 240 0.12 4:1:0.63 5300 3000 27.05 32.25 22.86 THT EE25/13/7
750313928SPEC
4 files 175 - 265 V (AC) 5.5 250 18 100 3.8 12:1:3 625 10 12.07 5.97 SMT ER9.5
750315289SPEC
4 files 176 - 265 V (AC) 285 350 15 10 22 62 - 84 0.4 11:20.8:1:1.5 6800 1875 35.56 37.34 24.13 THT PQ3220
750315290SPEC
4 files 176 - 265 V (AC) 285 350 22 62 - 84 0.4 1:1.89:0.14 6800 1875 35.56 37.34 24.13 THT PQ3220
750316585SPEC
4 files 177 - 473 V (AC) 12 1500 5 2000 17 30 0.6 11.64:2.18:1:3 2750 4000 22.2 25 16 THT EE20/10/6
7508110410SPEC
4 files 180 - 265 V (AC) 19.5 350 10 30 - 140 13.8 18.5:1:0.80 225 5625 20.32 24.38 16 THT EE16/8/5
7508151501SPEC
4 files 180 - 265 V (AC) 30 600 14 70 1.78 5.17:1:0.45 4500 22.2 25 16 THT EE20/10/6
750341599SPEC
5 files 180 - 264 V (AC) 36 275 14 70 2.18 6.2:1:0.396.2:1:0.39 3750 16.9 18.8 13.31 THT EE16/7/5
750341879SPEC
5 files 180 - 264 V (AC) 44 150 11 150 15 70 - 100 1 9.25:3.6:1 800 17.65 16.64 15 THT RM6
750341696SPEC
5 files 180 - 264 V (AC) 22 350 30 80 0.8 3.47:1:1.3 3000 16.9 18.8 13.31 THT EE16/7/5
750342275SPEC
4 files 180 - 264 V (AC) 42 2000 24 1600 15 80 0.24 6.67:1.67:1:0.5 3750 36.5 44 29 THT ERL35
750815039SPEC

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

5 files 184 - 265 V (AC) 12 300 12 40 - 136 6.6 18:1:1 225 4000 16.9 18.8 13.55 THT EE16/7/5
750313651SPEC
4 files 184 - 265 V (AC) 12 250 18 100 3 8:1:1.47 150 4500 13.72 20.45 10.16 THT EE13/7/4
750815047SPEC
5 files 185 - 265 V (AC) 30 280 15 70 3.2 5.6:1:0.5 520 3000 16.9 18.8 13.31 THT EE16/7/5
750316133SPEC
5 files 190 - 290 V (AC) 3.3 100 16 100 5 0.05 60 6 30:1:4.5:1.5 130000 3000 15.7 22.1 23.3 THT EPW15
750313829SPEC
4 files 195 - 265 V (AC) 12 420 100 1.59 6.25:1 600 1875 13.46 17.75 12.7 SMT EP13
750845150SPEC
5 files 196 - 264 V (AC) 34 400 22 100 2.7 7.6:1:0.67 3750 18.9 21.9 15.24 THT EE16/8/5
750341569SPEC
4 files 196 - 265 V (AC) 22 350 22 90 3.22 7.83:1:1 4500 14.73 14.73 15.24 THT EE13/6/6
750317031SPEC
4 files 198 - 276 V (AC) 12 850 20 60 1.7 10 : 1 : 1.6 360 3000 20.6 24.38 16 THT EE16/8/5
750315340SPEC
5 files 200 - 265 V (AC) 24 10000 12 60 0.2 4.5:1:0.5 15000 3750 49 41.9 31.75 THT ETD29
750317696SPEC
5 files 200 - 375 V (DC) 15 20 15 20 5 0.03 15 32 2.5 18:2.7:1:1.7:2.7 540 4000 17.78 26.9 13.8 SMT EE16/8/5
750815040SPEC
5 files 209 - 265 V (AC) 20 350 15 65 2.12 5.384:1:0.769 750 4500 22.2 25 16 THT EE20/10/6
750342671SPEC
4 files 248 - 283 V (AC) 6.5 100 13 40 4 10:1:2 100 3000 13.72 20.45 10.16 THT EE13/7/4
750314722SPEC
5 files 318 - 495 V (AC) 267 20 267 20 267 0.02 21 70 5.3 2:1:1:1:0.08 425 2100 23.11 29.65 11.43 SMT EFD20
750344367SPEC
3 files 380 - 400 V (DC) 18 100 6 900 12 110 1.6 16:2:1:2 300000 3750 17.5 20 14 THT EE16/7/5
750342585SPEC

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

5 files 400 - 690 V (AC) 24 2000 16 140 16 0.14 6 0.1 16 68 2.5 47.3:1:2.67:2.67:1.33:2.67 4500 35.56 24.38 44.2 THT ETD29
Order Code Data­sheet Simu­lation
750370271SPEC
750314307SPEC
750316908SPEC
750318119SPEC
750816130SPEC
750342851SPEC
750314940SPEC
750315315SPEC
7508110127SPEC
750343068SPEC
750343466SPEC
7508113417SPEC
7508110325SPEC
750811227SPEC
7508110347SPEC
7508112328SPEC
7508110329SPEC
750343306SPEC
750343332SPEC
750343661SPEC
750312170SPEC
750342279SPEC
750342792SPEC
750314878SPEC
750315313SPEC
750315314SPEC
750817930SPEC
750343140SPEC
750315942SPEC
750811438SPEC
750316711SPEC
750315783SPEC
750344701SPEC
750813046SPEC
750310787SPEC
750811146SPEC
750811148SPEC
750311959SPEC
750313747SPEC
750313959SPEC
750811445SPEC
750312723SPEC
7508110151SPEC
750342104SPEC
750313823SPEC
750811434SPEC
750370140SPEC
750315092SPEC
750313417SPEC
750341603SPEC
750313684SPEC
750341591SPEC
750341448SPEC
750811647SPEC
750341657SPEC
750342752SPEC
750341872SPEC
750341914SPEC
750341928SPEC
750314178SPEC
750314445SPEC
7508111120SPEC
7508111111SPEC
750314727SPEC
7508112339SPEC
750313739SPEC
7508110331SPEC
750841012SPEC
750841034SPEC
750315146SPEC
7508110155SPEC
7508111323SPEC
7508111329SPEC
750315369SPEC
750315526SPEC
750342288SPEC
750342946SPEC
7508112341SPEC
750343192SPEC
750811693SPEC
7508110338SPEC
750315841SPEC
750343154SPEC
750343372SPEC
750316326SPEC
750316686SPEC
7508113423SPEC
750343769SPEC
750343920SPEC
750343803SPEC
750811145SPEC
750342415SPEC
750311553SPEC
750813045SPEC
750813550SPEC
750811932SPEC
750342999SPEC
750813743SPEC
750343025SPEC
750317812SPEC
750370833SPEC

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

750343004SPEC
750316710SPEC
750314848SPEC
750343972SPEC
750314382SPEC
750315727SPEC
750317049SPEC
750317406SPEC
750316596SPEC
750318302SPEC
750318383SPEC
750316002SPEC
750815330SPEC
750315046SPEC
750315241SPEC
750315242SPEC
750370156SPEC
750315307SPEC
750315924SPEC
750318431SPEC
750313928SPEC
750315289SPEC
750315290SPEC
750316585SPEC
7508110410SPEC
7508151501SPEC
750341599SPEC
750341879SPEC
750341696SPEC
750342275SPEC
750815039SPEC

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

750313651SPEC
750815047SPEC
750316133SPEC
750313829SPEC
750845150SPEC
750341569SPEC
750317031SPEC
750315340SPEC
750317696SPEC
750815040SPEC
750342671SPEC
750314722SPEC
750344367SPEC
750342585SPEC

PCN pending

Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff.

Samples
Order Code Data­sheet Simu­lation DownloadsVINVOut1
(V)
IOut1
(mA)
VOut2
(V)
IOut2
(mA)
VOut3
(V)
IOut3
(A)
VOut4
(V)
IOut4
(A)
Vaux
(V)
Vaux 1
(V)
Vaux 2
(V)
Vaux 3
(V)
fswitch
(kHz)
L
(mH)
NPRI : NSEC : NAUXISAT
(mA)
VT
(V (AC))
L
(mm)
W
(mm)
H
(mm)
MountSize Samples
