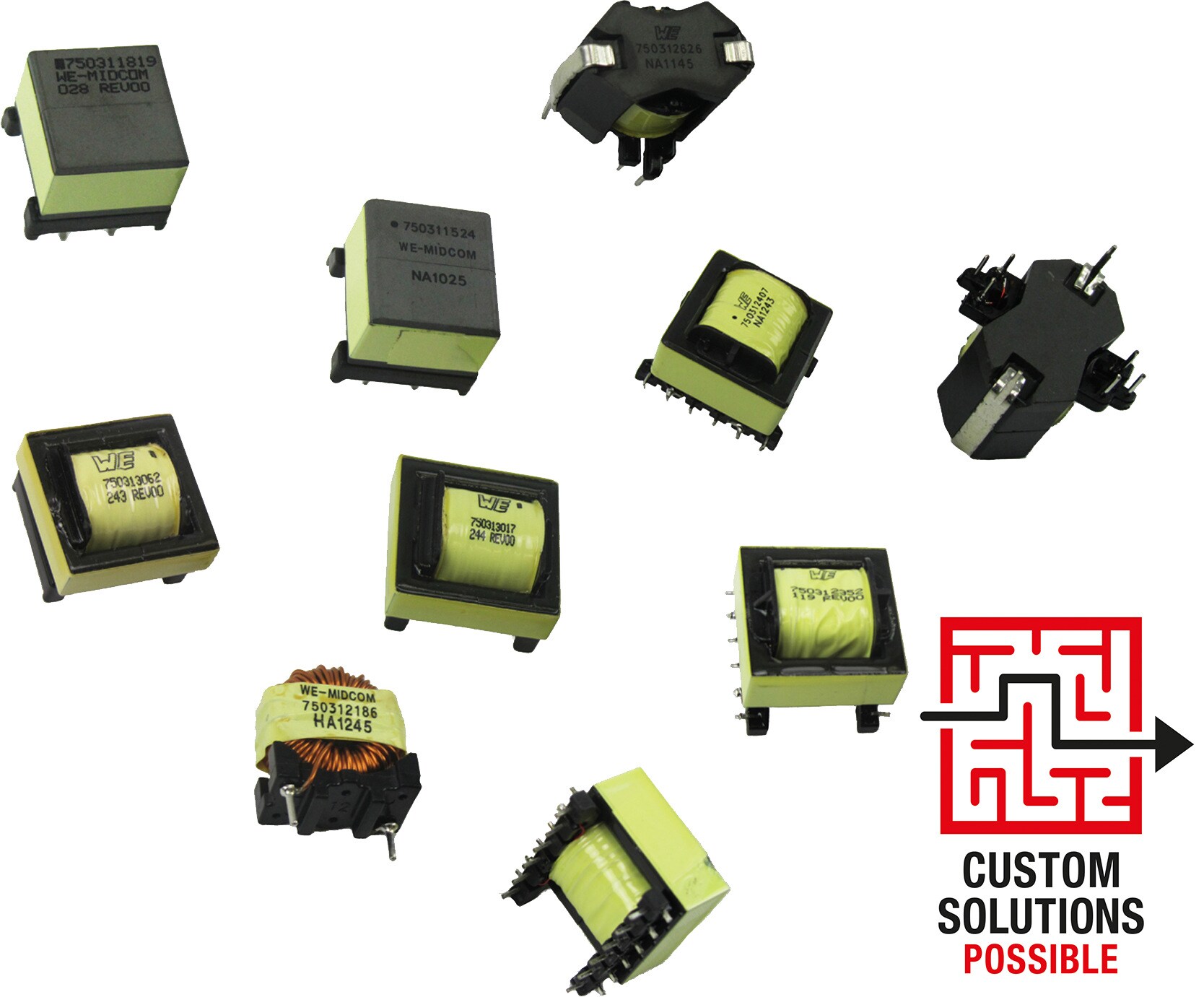

MID-LLIT Inductors for Lighting Applications

Characteristics

  • Inductance 52-3500µH
  • With and without auxiliary winding
  • Saturation current: up to 25A
  • Rated for up to 250VAC functional applications
  • Operating temp: -40°C to +125°

Applications

  • LED lamps
  • LED downlights
  • Power factor corrected LED drivers 
  • Buck LED drivers

Products

All
EE16/8/5
EE20/10/6
EE25/13/11
EP13
RM6
Toroid
Order Code Data­sheet Downloads L1
(µH)
ISAT1
(A)
RDC 1
(Ω)
IR 1
(A)
VR
(V (AC))
VT
(V (AC))
L
(mm)
W
(mm)
H
(mm)
Mount Samples
750315814
52 25 0.052 500 31.05 16.84 32.75 THT
750313017
125 3.3 0.2 500 17.15 17.15 13.34 THT
750313062
155 2.6 0.2 500 17.15 17.15 13.34 THT
750311524
STE LTS IGS WRL 180 0.11 1250 13.97 13.97 13.97 THT
750311819
STE LTS IGS WRL 270 0.135 1250 13.97 13.97 12.7 THT
750312186
696 0.128 2 90 20.83 24.64 11.43 THT
750312407
1100 4 1.35 90 1875 30.35 27.05 22.6 THT
750313755
1200 1 0.64 460 500 23 22 17.53 THT
750312626
2100 0.9 1.53 120 17.65 16.64 13.21 SMT
750312352
3500 2 2.15 120 30.35 27.05 22.6 THT
Order Code Data­sheet
750315814
750313017
750313062
750311524
750311819
750312186
750312407
750313755
750312626
750312352
