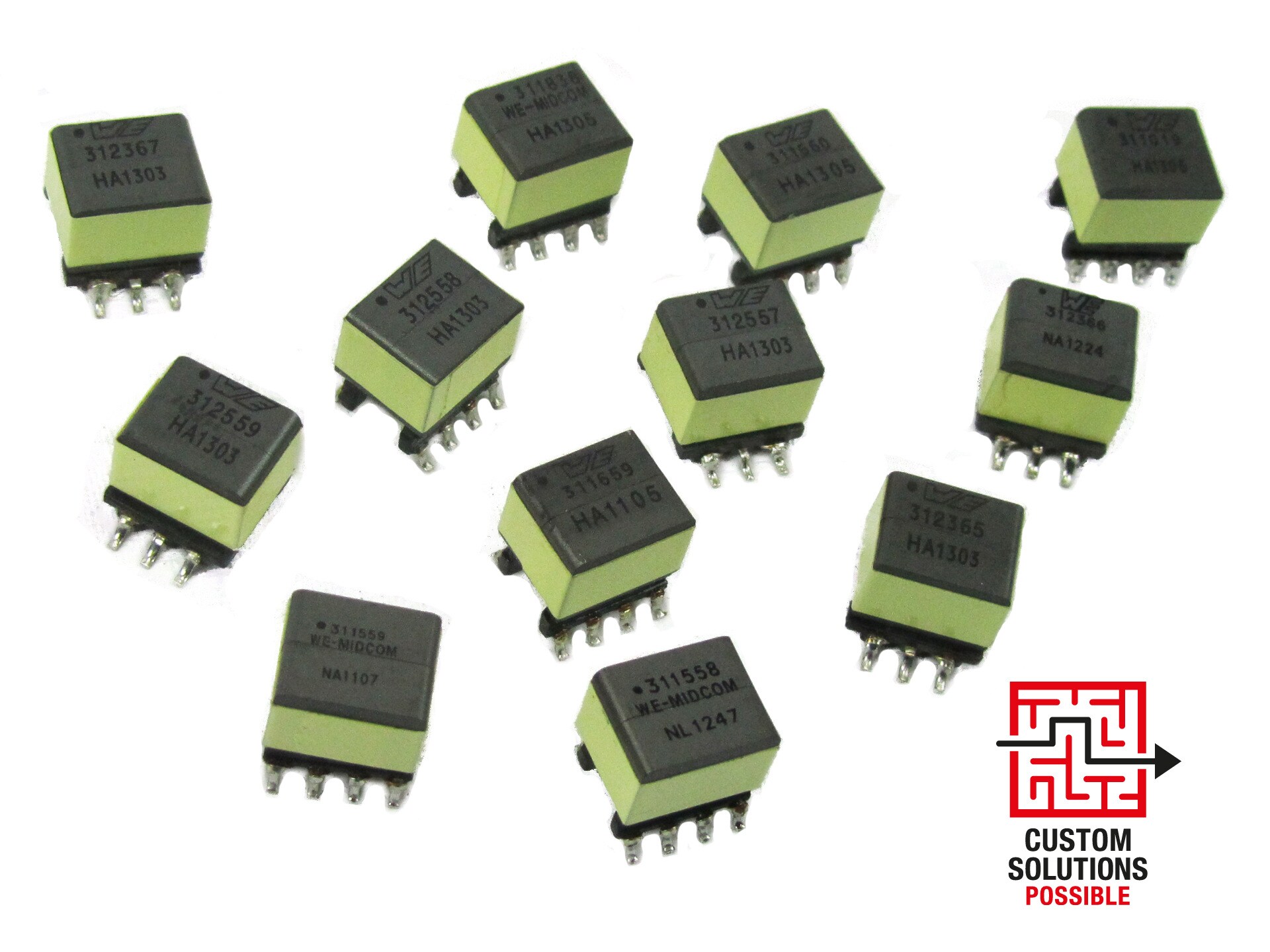

MID-FLYLT Flyback Transformers for Linear Technology

Characteristics

Low leakage inductance
High saturation current for low-power, DC/DC transformers
Self-shielding and space efficient
Functional insulation
Isolation voltage: Up to 1875VAC at 1 second
Lead free and RoHS compliant
Operating temp: -40°C to 125°C
Package sizes: EP7, EP10, EP13 and ETD34
Designed to meet IEC/UL/EN60950-1
LT8300 Product Spotlight
LT8301 Product Spotlight
LT8302 Product Spotlight
LT8303 Product Spotlight
LT8304 Product Spotlight

Applications

Industrial & medical power supplies
Isolated auxiliary/housekeeping power supplies
Isolated DC/DC supplies
Home automation

Telecom

Products

All

LT8300

LT8301

LT8302

LT8303

LT8304

LT3798

LTC3300

Order Code	Datasheet	Downloads	V_in (V)	V_Out1 (V)	I_Out1 (mA)	V_Out2 (V)	I_Out2 (mA)	V_aux (V)	f_switch (kHz)	L₁ (µH)	N_PRI : N_SEC : N_AUX	I_SAT1 (A)	V_T (V (DC))	L (mm)	W (mm)	H (mm)	Mount
750312504	SPEC	4 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB catalog.downloads.group_labels. ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 4 files as zip archive ZIP	2 - 5.5 V (DC)	20	250	–	–	–	130 - 300	3.46	1:1	10.2	500	13.46	17.75	12.7	SMT
750313460	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313460_LTspice (rev1).zip \| 6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	4 - 8 V (DC)	5	1200	–	–	–	–	12	4:1	7.75	1500	13.34	15.24	11.43	SMT
750315839	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Electric models ZIP LT Download_LTSPICE_750315839 (rev1).zip \| 6.5 KB catalog.downloads.group_labels. ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 5 files as zip archive ZIP	4 - 36 V (DC)	200	12	–	–	–	50 - 200	40	5:1	3.2	1500	13.46	17.75	12.7	SMT
750313973	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313973_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	8 - 32 V (DC)	3.3	500	3.3	500	–	200 - 300	40	4:1:1	2	1500	–	–	–	SMT
750313974	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313974_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	8 - 32 V (DC)	5	360	5	360	–	200 - 300	40	3:1:1	2	1500	–	–	–	SMT
750313975	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313975_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	8 - 32 V (DC)	24	70	24	70	–	200 - 300	40	1:2:2	2	1500	–	–	–	SMT
750313976	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313976_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	8 - 32 V (DC)	48	35	48	35	–	200 - 300	40	1:4:4	2	1500	–	–	–	SMT
750313441	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313441_LTspice (rev1).zip \| 6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	8 - 32 V (DC)	5	1750	–	–	–	–	9	2:1	8	1500	13.34	15.24	11.43	SMT
750313443	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313443_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	8 - 32 V (DC)	12	375	12	375	–	–	9	1:1:1	7.3	1500	13.34	15.24	11.43	SMT
750313445	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313445_LTspice (rev1).zip \| 6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	8 - 32 V (DC)	24	320	–	–	–	–	9	1:2	7.5	1500	13.34	15.24	11.43	SMT
750313457	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313457_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	8 - 32 V (DC)	48	180	–	–	–	–	9	1:4	7.5	1500	13.34	15.24	11.43	SMT
750313439	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313439_LTspice (rev1).zip \| 6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	8 - 40 V (DC)	3.3	2000	–	–	–	–	12	2:1	8	1500	13.34	15.24	11.43	SMT
750313442	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313442_LTspice (rev1).zip \| 6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	8 - 40 V (DC)	5	1500	–	–	–	–	12	3:2	7.3	1500	13.34	15.24	11.43	SMT
750315831	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750315831_LTspice (rev1).zip \| 7.4 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	9 - 36 V (DC)	5	350	–	–	–	50 - 200	150	10 : 1	0.8	1500	10.16	13.36	8.64	SMT
750315832	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750315832_LTspice (rev1).zip \| 6.3 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	9 - 36 V (DC)	100	15	–	–	–	50 - 200	150	1 : 4	0.8	1500	10.16	13.36	8.64	SMT
750312366	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750312366_LTspice (rev1).zip \| 7.4 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	18 - 75 V (DC)	5	300	–	–	–	100	400	7.11:1	0.58	1500	10.16	13.36	8.64	SMT
750313970	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313970_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	18 - 42 V (DC)	3.3	500	3.3	500	–	200 - 300	40	2:1:1	2	1500	–	–	–	SMT
750313972	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Electric models ZIP LT 750313972_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-6052 (rev1).wrl \| 123.9 KB Download all 5 files as zip archive ZIP	18 - 42 V (DC)	5	275	5	275	–	200 - 300	40	1:1:1	2	1500	–	–	–	SMT
750315125	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Electric models ZIP LT 750315125_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 5 files as zip archive ZIP	18 - 72 V (DC)	5	4500	–	–	–	150 - 300	40	6:1	3.8	1500	13.46	17.75	12.7	SMT
750312872	SPEC	4 files CAD files ZIP IGS 070-5455 (rev1).IGS \| 3.3 MB STP 070-5455 (rev1).STEP \| 1.5 MB Electric models ZIP LT 750312872_LTspice (rev1).zip \| 8.9 KB catalog.downloads.group_labels. ZIP WRL 070-5455 (rev1).wrl \| 237 KB Download all 4 files as zip archive ZIP	20 - 60	28	4000	–	–	24	50	14	1:1:0.8	25.9	1500	39.6	43.18	30.84	THT
750312367	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750312367_LTspice (rev1).zip \| 7.5 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	22 - 72 V (DC)	3.3	500	–	–	–	100	300	8.4:1	0.45	1500	10.16	13.36	8.64	SMT
750312365	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750312365_LTspice (rev1).zip \| 7.5 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	30 - 72 V (DC)	12	300	–	–	–	100	300	4:1	0.6	1500	10.16	13.36	8.64	SMT
750311019	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT 750311019_LTspice (rev1).zip \| 7.3 KB catalog.downloads.group_labels. ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 5 files as zip archive ZIP	35 - 75 V (DC)	3.3	600	–	–	6.6	200 - 300	400	6:1:2	0.75	1500	9.78	9.14	10.54	SMT
750311558	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT 750311558_LTspice (rev1).zip \| 7.3 KB catalog.downloads.group_labels. ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 5 files as zip archive ZIP	35 - 75 V (DC)	5	400	–	–	5	200 - 300	300	4:1:1	–	1500	9.78	9.14	10.54	SMT
750311559	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT 750311559_LTspice (rev1).zip \| 7.3 KB catalog.downloads.group_labels. ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 5 files as zip archive ZIP	35 - 75 V (DC)	5	400	–	–	5	200 - 300	175	4:1:1	0.8	1500	9.78	9.14	10.54	SMT
750312557	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750312557_LTspice (rev1).zip \| 7.4 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	5	380	–	–	–	70	300	6:1	0.45	1500	10.16	13.36	8.64	SMT
750312558	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT 750312558_LTspice (rev1).zip \| 8.1 KB catalog.downloads.group_labels. ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	12	70	12	70	–	70	300	2:1:1	0.54	1500	9.78	9.14	10.54	SMT
750312559	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750312559_LTspice (rev1).zip \| 7.4 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	24	70	–	–	–	70	300	1:1	0.45	1500	10.16	13.36	8.64	SMT
750311659	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT 750311659_LTspice (rev1).zip \| 7.2 KB catalog.downloads.group_labels. ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	24	80	–	–	5	180	300	5:5:1	0.56	1500	9.78	9.14	10.54	SMT
750311660	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT 750311660_LTspice (rev1).zip \| 7.2 KB catalog.downloads.group_labels. ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	15	140	–	–	5	190	350	6:3:1	0.52	1500	9.78	9.14	10.54	SMT
750311838	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT 750311838_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	15	70	15	70	–	190	350	2:1:1	0.52	1500	9.78	9.14	10.54	SMT
750315826	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750315826_LTspice (rev1).zip \| 7.4 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	5	720	–	–	–	50 - 200	150	6 : 1	0.9	1500	10.16	13.36	8.64	SMT
750315827	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750315827_LTspice (rev1).zip \| 7.5 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	5	580	–	–	–	50 - 200	150	4 : 1	0.8	1500	10.16	13.36	8.64	SMT
750315828	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750315828_LTspice (rev1).zip \| 7.5 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	12	260	–	–	–	50 - 200	150	2 : 1	0.8	1500	10.16	13.36	8.64	SMT
750315829	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750315829_LTspice (rev1).zip \| 7.5 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	24	130	–	–	–	50 - 200	150	1 : 1	0.8	1500	10.16	13.36	8.64	SMT
750315830	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750315830_LTspice (rev1).zip \| 6.5 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	48	60	–	–	–	50 - 200	150	1 : 2	0.8	1500	10.16	13.36	8.64	SMT
750315833	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750315833_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	12	130	12	130	–	50 - 200	150	2 : 1 : 1	0.8	1500	10.16	13.36	8.64	SMT
750315834	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750315834_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	5	350	5	350	–	50 - 200	150	6 : 1 : 1	0.8	1500	10.16	13.36	8.64	SMT
750315825	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Electric models ZIP LT 750315825_LTspice (rev1).zip \| 7.4 KB catalog.downloads.group_labels. ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	3.3	1000	–	–	–	50 - 200	150	8 : 1	0.9	1500	10.16	13.36	8.64	SMT
750315836	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Electric models ZIP LT 750315836_LTspice (rev1).zip \| 7.4 KB catalog.downloads.group_labels. ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 5 files as zip archive ZIP	36 - 75 V (DC)	24	600	–	–	–	50 - 200	40	1:1	3.2	1500	13.46	17.75	12.7	SMT
750315837	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Electric models ZIP LT 750315837_LTspice (rev1).zip \| 7.4 KB catalog.downloads.group_labels. ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 5 files as zip archive ZIP	36 - 75 V (DC)	48	300	–	–	–	50 - 200	40	1:2	3.2	1500	13.46	17.75	12.7	SMT
750315835	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Electric models ZIP LT Download_LTSPICE_750315835 (rev1).zip \| 8 KB catalog.downloads.group_labels. ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 5 files as zip archive ZIP	36 - 75 V (DC)	3.3	4800	–	–	–	50 - 200	40	8:1	3.2	1500	13.46	17.75	12.7	SMT
750315126	SPEC	5 files EDA models: Components ZIP CDS Cadence_MID-FLYLT (rev19a).zip \| 4.1 MB CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Electric models ZIP LT 750315126_LTspice (rev1).zip \| 6.6 KB catalog.downloads.group_labels. ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 5 files as zip archive ZIP	36 - 72 V (DC)	12	1250	–	–	–	150 - 300	40	2:1	3.8	1500	13.46	17.75	12.7	SMT
