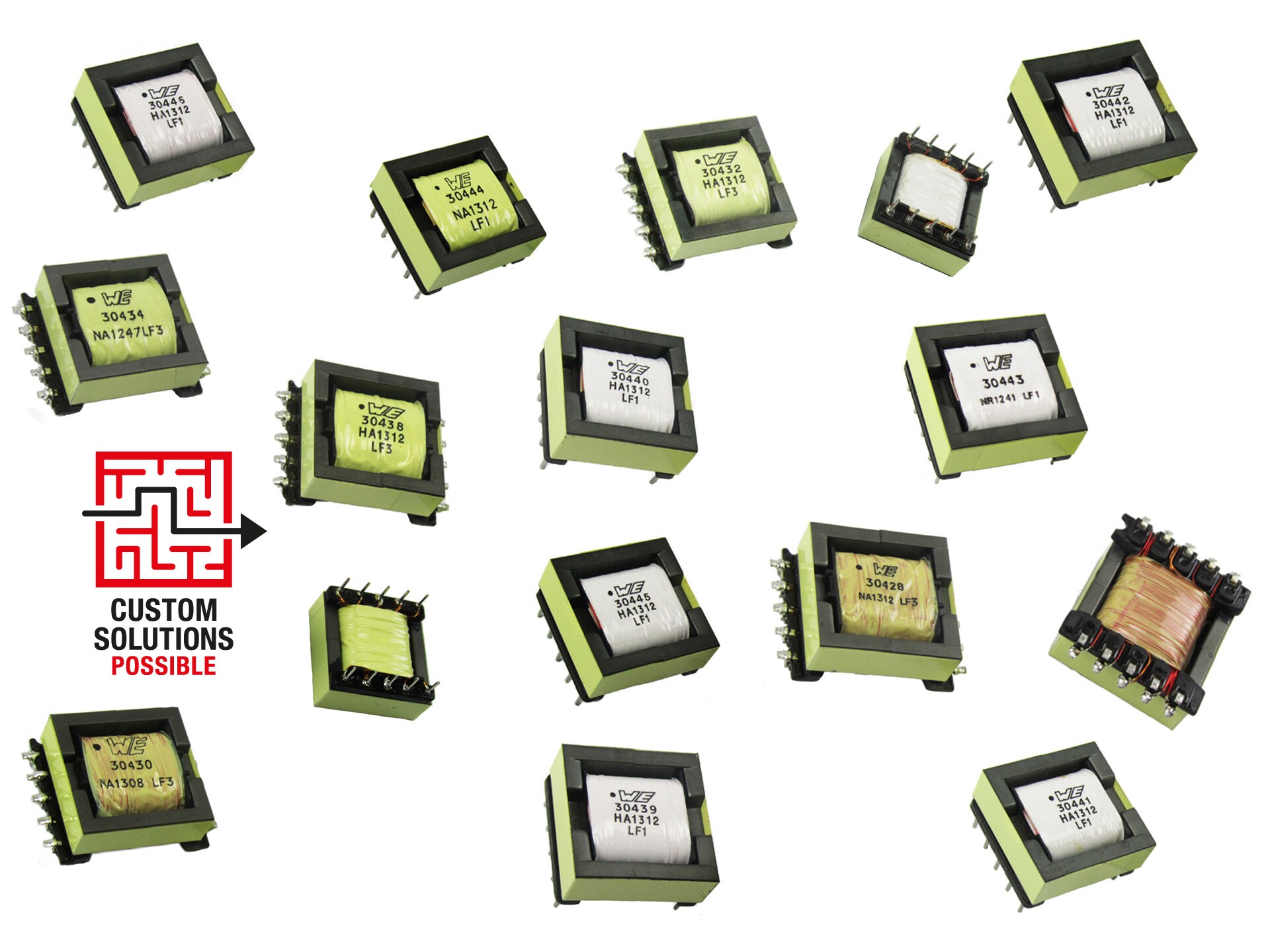

MID-FLY Flyback Transformers

Characteristics

  • Discontinuous mode flyback switching
  • 4.75-85 VDC input voltage
  • Secondary voltages of 5, 12, 15 and 24V
  • Switching frequency 40-250kHz
  • Operating Temperature: -40°C to +125°C
  • Low profile design

Applications

  • Isolated power design
  • Sensor interfaces
  • Isolated telecom converters
  • Power over Ethernet
  • White goods
  • Industrial control
  • Building automation

Products

All
EFD15
EFD20
EFD25
EP7
ETD34
Order Code Data­sheet Downloads Vin VOut1
(V)
IOut1
(mA)
VOut2
(V)
IOut2
(mA)
VOut3
(V)
IOut3
(mA)
fswitch
(kHz)
L1
(µH)
NPRI : NSEC : NAUX ISAT1
(A)
VT
(V (AC))
L
(mm)
W
(mm)
H
(mm)
Mount Samples
750030398
LTS 4.75 - 16 V (DC) 5 303 5 303 5 303 100 - 250 10.65 1 : 1.1 : 1.1 : 1.1 500 15.75 22.23 8.89 SMT
750030399
LTS 4.75 - 16 V (DC) 5 460 12 93 12 93 100 - 250 10.65 1:1.1:2.5:2.5 3.85 500 15.75 22.23 8.89 SMT
750030400
LTS 4.75 - 16 V (DC) 5 460 15 75 15 75 100 - 250 10.65 1:1.1:3.1:3.1 3.8 500 15.75 22.23 8.89 SMT
750030401
LTS 4.75 - 16 V (DC) 5 460 24 47 24 47 100 - 250 10.65 1:1.1:4.95:4.95 3.8 500 15.75 22.23 8.89 SMT
750030416
LTS 4.75 - 16 V (DC) 5 383 5 383 5 383 40 - 100 32.3 1:1:1:1 4.876 500 21.97 28.7 10.8 SMT
750030418
LTS 4.75 - 16 V (DC) 5 400 12 156 12 156 40 - 100 26.8 1:1:2.28:2.28 4.876 500 21.97 28.7 10.8 SMT
750030420
LTS 4.75 - 16 V (DC) 5 400 15 125 15 125 40 - 100 26.8 1:1:2.83:2.83 4.876 500 21.97 28.7 10.8 SMT
750030421
LTS 4.75 - 16 V (DC) 5 400 24 78 24 78 40 - 100 26.8 1:1:4.44:4.44 4.876 500 21.97 28.7 10.8 SMT
750030402
LTS 16 - 40 V (DC) 5 600 5 600 5 600 100 - 250 32.3 1.733:1:1:1 2.98 500 15.75 22.23 8.89 SMT
750030403
LTS 16 - 40 V (DC) 5 600 12 268 12 268 100 - 250 32.3 1.733:1:2.27:2.27 2.854 500 15.75 22.35 8.89 SMT
750030404
LTS 16 - 40 V (DC) 5 800 15 167 15 167 100 - 250 32.3 1.733:1:2.86:2.86 3.9 500 15.75 22.35 8.89 SMT
750030405
LTS 16 - 40 V (DC) 5 800 24 105 24 105 100 - 250 32.3 1.733 : 1 : 4.54 : 4.54 2.836 500 15.75 22.23 8.89 SMT
750030424
LTS 16 - 40 V (DC) 5 767 5 767 5 767 40 - 100 39.2 1.33:1:1:1 4.7 500 21.97 28.7 10.8 SMT
750030426
LTS 16 - 40 V (DC) 5 767 12 320 12 320 40 - 100 39.2 1.33:1:2.27:2.27 4.7 500 21.97 28.7 10.8 SMT
750030428
LTS 16 - 40 V (DC) 5 767 15 255 15 255 40 - 100 39.2 1.33:1:2.83:2.83 500 21.97 28.7 10.8 SMT
750030430
LTS 16 - 40 V (DC) 5 767 24 160 24 160 40 - 100 39.2 1.33:1:4.488:4.488 500 21.97 28.7 10.8 SMT
750030432
LTS 16 - 40 V (DC) 5 1000 5 1000 5 1000 100 - 250 26.8 1.636:1:1:1 500 21.97 28.7 10.8 SMT
750030434
LTS 16 - 40 V (DC) 5 1000 12 417 12 417 100 - 250 26.8 1.636:1:2.274:2.274 500 21.97 28.7 10.8 SMT
750030438
LTS 16 - 40 V (DC) 5 1000 24 208 24 208 100 - 250 26.8 1.636:1:4.548:4.548 500 21.97 28.7 10.8 SMT
750030440
LTS 16 - 40 V (DC) 5 1333 12 550 5 550 100 - 250 55.9 2.091:1:2.273:2.273 500 26.04 26.67 14.35 THT
750030439
LTS 16 - 40 V (DC) 5 1333 5 1333 5 1333 100 - 250 55.9 2.091:1:1:1 500 26.04 26.67 14.35 THT
750030441
LTS 16 - 40 V (DC) 5 1333 15 445 15 445 100 - 250 55.9 2.091:1:2.818:2.818 500 26.04 26.67 14.35 THT
750030442
LTS 16 - 40 V (DC) 5 1333 24 269 24 269 100 - 250 55.9 2.09:1:4.535:4.535 500 26.04 26.67 14.35 THT
750030444
LTS 30 - 85 V (DC) 5 2000 12 833 12 833 100 - 250 66 2.778:1:2.334:2.334 500 26.04 26.67 14.35 THT
750030446
LTS 30 - 85 V (DC) 5 2000 24 417 24 417 100 - 250 66 2.778:1:4.44:4.44 500 26.04 26.67 14.35 THT
750030443
LTS 30 - 85 V (DC) 5 2000 5 2000 5 2000 100 - 250 66 2.778:1:7.717:7.717 500 26.04 26.67 14.35 THT
750030445
LTS 30 - 85 V (DC) 5 2000 15 667 15 667 100 - 250 66 2.78:1:2.89:2.89 500 26.04 26.67 14.35 THT
