| Size | Dimensions | L (mm) | W (mm) | H (mm) | |
|---|---|---|---|---|---|
| Radio Module | 17 | 27 | 3.8 | ||
| USB radio stick | 74 | 23.65 | 12 |
Characteristics
- Low-cost high power radio module 868 MHz
- Wireless M-BUS EN13757-4: 2013 standard
- OMS (Open Metering System) supported
- Range up to 1000 m line of sight
- Small size: 17 x 27 x 4.0 mm
- RF output power 14 dBm
- Low-power functions (Wake-On-Radio)
- Easy switching between operating modes S, T, C
- Adjustable RF data rates
- Communication via UART/SPI Interface
- Encryption AES-128
- Available on Tape & Reel for SMT mounting
- ACC Software - PC Tool to configure and update the module
- Wireless Connectivity SDK
Products
| Order Code | Datasheet | Simulation | Manual | Downloads | Description | Frequency Range (MHz) | Line of Sight Range Bluetooth® (m) | PTx, 50 Ω (dBm) | Rxsens, 50 Ω (dBm) | VDD min. (V) | VDD max. (V) | Rb max. (kbps) | L (mm) | W (mm) | H (mm) | Antenna | USB Radio Stick | Evaluation Kit | Radio Module | Offer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

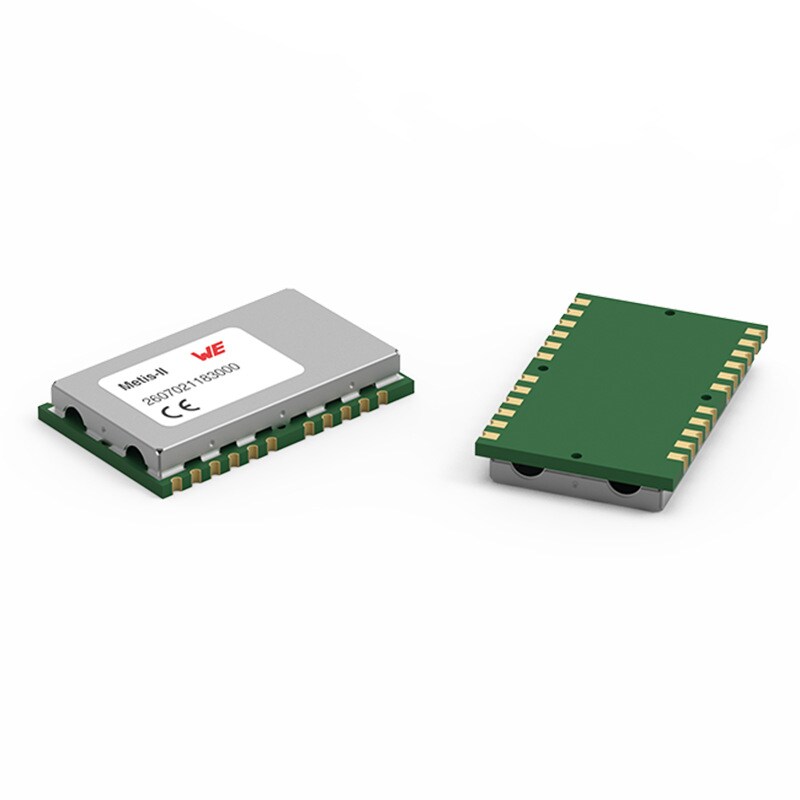

| 2607021183000 | SPEC | 5 files | Metis-II | 868.3 MHz - 869.525 | 1000 | 14 | -106 | 2 | 3.6 | 100 | 17 | 27 | 3.8 | Hyperion-I Hyperion-II | 2607056283001 | 2607029283001 | – | |||
| 2607056283001 | SPEC | 4 files | Metis-II USB radio stick | 868.3 MHz - 869.525 | 800 | 14 | -106 | – | – | 100 | 74 | 23.65 | 12 | Hyperion-I Hyperion-II | – | – | 2607021183000 |
| Offer |
|---|
| Order Code | Datasheet | Simulation | Manual | Downloads | Description | Frequency Range (MHz) | Line of Sight Range Bluetooth® (m) | PTx, 50 Ω (dBm) | Rxsens, 50 Ω (dBm) | VDD min. (V) | VDD max. (V) | Rb max. (kbps) | L (mm) | W (mm) | H (mm) | Antenna | USB Radio Stick | Evaluation Kit | Radio Module | Offer |
|---|
Software Downloads
The aim of the Wireless Connectivity Software Development Kit (SDK) is to minimize the effort required on customer side to enable his host MCU to communicate with Würth Elektronik eiSos radio modules. It contains the implementation of all available commands in pure C-code. In order to integrate any Würth Elektronik eiSos wireless module, the user has to simply port the corresponding C-code to his host processor. This significantly reduces the time needed for developing the software interface to the radio module.
Download now on GitHub
The "ACC V3" is a tool to update and configure certain Würth Elektronik eiSos modules. The supported features will include the search and upload of new firmwares as well as the modification of the available configuration parameters. It allows full user control over all supported products, as in the range of the producer’s intentions, always referring to the respective manual of the connected module.
