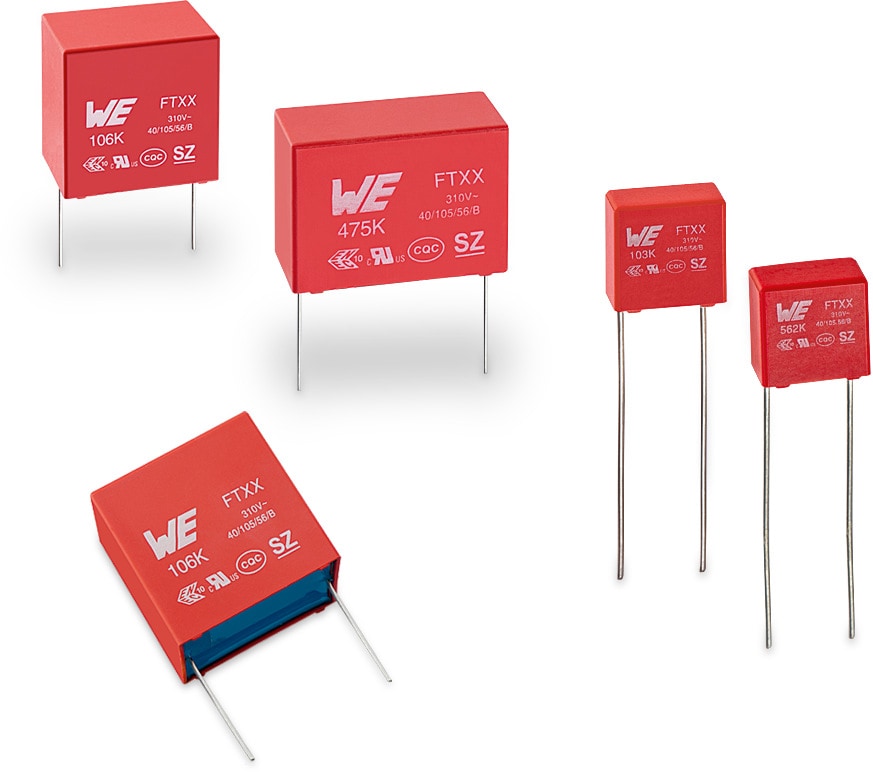

WCAP-FTXX Film Capacitors

X2-Capacitors

SizeL
(mm)
W
(mm)
H
(mm)
Mount
7.5 mm - 6 - -
10 mm 13 - - -
12.5 mm 15 - - -
15 mm 18 - - -
22.5 mm 26 - - -
27.5 mm 31 - - THT
37.5 mm 41.5 22.5 35.5 -

Characteristics

  • Product series for interference suppression
  • Self-healing properties
  • Certificates: ENEC 10 by VDE, cULus, CQC
  • Safety class: X2
  • Mounting style: Boxed THT
  • Dielectric: Polypropylene
  • Capacitance range: 5.6 nF ‒ 6.8 µF
  • Capacitance tolerance: ±10 %
  • Voltage range (UR): 310 V(AC)
  • Operating temperature: -40 °C up to + 105 °C
  • Pitch: 7.5 / 10.0 / 12.5 / 15.0 / 22.5 / 27.5 / 37.5 mm
  • Recommended soldering: Wave soldering

Applications

  • Safety applications
  • Filtering
  • Interference suppression
  • e.g. EMI filter for power supplies

Products

All
7.5 mm
10 mm
12.5 mm
15 mm
22.5 mm
27.5 mm
37.5 mm
Order Code Data­sheet Simu­lation DownloadsCVR
(V (AC))
RISODF @ 1 kHz
(%)
DF @ 10 kHz
(%)
DF @ 100 kHz
(%)
dV/dt
(V/µs)
Technical ReferenceDesign Kit Samples
890334022007CSSPEC
8 files 15 nF 31030000 MΩ 0.1 0.1 0.5 500 MXXP075153K310ACPP55004
890334022017CSSPEC
8 files 68 nF 31030000 MΩ 0.1 0.1 0.5 400 MXXP075683K310ACPP45004
890334022007SPEC
8 files 15 nF 31030000 MΩ 0.1 0.1 0.5 500 MX2P075153K275ASPB15000890334
890334022017SPEC
8 files 68 nF 31030000 MΩ 0.1 0.1 0.5 400 MX2P075683K275ASPB15000890334
890334023002CSSPEC
8 files 5.6 nF 31030000 MΩ 0.1 0.1 0.5 600 MXXP010562K310ACPP55004
890334023003CSSPEC
8 files 6.8 nF 31030000 MΩ 0.1 0.1 0.5 400 MXXP010682K310ACPP55004
890334023004CSSPEC
8 files 8.2 nF 31030000 MΩ 0.1 0.1 0.5 400 MXXP010822K310ACPP55004
890334023006CSSPEC
8 files 10 nF 31030000 MΩ 0.1 0.1 0.5 500 MXXP010103K310ACPP56004
890334023007CSSPEC
8 files 12 nF 31030000 MΩ 0.1 0.1 0.5 300 MXXP010123K310ACPP55004
890334023008CSSPEC
8 files 15 nF 31030000 MΩ 0.1 0.1 0.5 400 MXXP010153K310ACPP55004
890334023010CSSPEC
8 files 18 nF 31030000 MΩ 0.1 0.1 0.5 400 MXXP010183K310ACPP55004
890334023011CSSPEC
8 files 22 nF 31030000 MΩ 0.1 0.1 0.5 400 MXXP010223K310ACPP55004
890334023015CSSPEC
8 files 47 nF 31030000 MΩ 0.1 0.1 0.5 300 MXXP010473K310ACPP55004
890334023017CSSPEC
8 files 56 nF 31030000 MΩ 0.1 0.1 0.5 300 MXXP010563K310ACPP55004
890334023019CSSPEC
8 files 68 nF 31030000 MΩ 0.1 0.1 0.5 400 MXXP010683K310ACPP46004
890334023021CSSPEC
8 files 82 nF 31030000 MΩ 0.1 0.1 0.5 400 MXXP010823K310ACPP46004
890334023023CSSPEC
8 files 100 nF 31030000 MΩ 0.1 0.1 0.5 300 MXXP010104K310ACPP46004
890334023024CSSPEC
8 files 120 nF 31030000 MΩ 0.1 0.2 2 400 MXXP010124K310ACPP45004
890334023025CSSPEC
8 files 150 nF 31030000 MΩ 0.1 0.2 2 300 MXXP010154K310ACPP45004
890334023028CSSPEC
8 files 220 nF 31030000 MΩ 0.1 0.2 2 300 MXXP010224K310ACPP46004
890334023002SPEC
8 files 5.6 nF 31030000 MΩ 0.1 0.1 0.5 600 MX2P010562K275ASPB15000
890334023003SPEC
8 files 6.8 nF 31030000 MΩ 0.1 0.1 0.5 400 MX2P010682K275ASPB15000
890334023004SPEC
8 files 8.2 nF 31030000 MΩ 0.1 0.1 0.5 400 MX2P010822K275ASPB15000
890334023006SPEC
8 files 10 nF 31030000 MΩ 0.1 0.1 0.5 500 MX2P010103K275ASPB16000890334
890334023007SPEC
8 files 12 nF 31030000 MΩ 0.1 0.1 0.5 300 MX2P010123K275ASPB15000
890334023008SPEC
8 files 15 nF 31030000 MΩ 0.1 0.1 0.5 400 MX2P010153K275ASPB15000
890334023010SPEC
8 files 18 nF 31030000 MΩ 0.1 0.1 0.5 400 MX2P010183K275ASPB15000
890334023011SPEC
8 files 22 nF 31030000 MΩ 0.1 0.1 0.5 400 MX2P010223K275ASPB15000
890334023015SPEC
8 files 47 nF 31030000 MΩ 0.1 0.1 0.5 300 MX2P010473K275ASPB15000890334
890334023017SPEC
8 files 56 nF 31030000 MΩ 0.1 0.1 0.5 300 MX2P010563K275ASPB15000
890334023019SPEC
8 files 68 nF 31030000 MΩ 0.1 0.1 0.5 400 MX2P010683K275ASPB16000
890334023021SPEC
8 files 82 nF 31030000 MΩ 0.1 0.1 0.5 400 MX2P010823K275ASPB16000
890334023023SPEC
8 files 100 nF 31030000 MΩ 0.1 0.1 0.5 300 MX2P010104K275ASPB16000
890334023024SPEC
8 files 120 nF 31030000 MΩ 0.1 0.2 2 400 MX2P010124K275ASPB15000
890334023025SPEC
8 files 150 nF 31030000 MΩ 0.1 0.2 2 300 MX2P010154K275ASPB15000890334
890334023028SPEC
8 files 220 nF 31030000 MΩ 0.1 0.2 2 300 MX2P010224K275ASPB16000
890334024001CSSPEC
8 files 150 nF 31030000 MΩ 0.1 0.2 2 210 MXXP125154K310ACPP55004
890334024002CSSPEC
8 files 220 nF 31030000 MΩ 0.1 0.2 2 240 MXXP125224K310ACPP45004
890334024003CSSPEC
8 files 330 nF 31030000 MΩ 0.1 0.2 2 260 MXXP125334K310ACPP45004
890334024005CSSPEC
8 files 470 nF 31010000 Ω x F 0.1 0.2 2 280 MXXP125474K310ACPP45004
890334024001SPEC
8 files 150 nF 31030000 MΩ 0.1 0.2 2 210 MX2P125154K275ASPB15000
890334024002SPEC
8 files 220 nF 31030000 MΩ 0.1 0.2 2 240 MX2P125224K275ASPB15000890334
890334024003SPEC
8 files 330 nF 31030000 MΩ 0.1 0.2 2 260 MX2P125334K275ASPB15000
890334024005SPEC
8 files 470 nF 31010000 Ω x F 0.1 0.2 2 280 MX2P125474K275ASPB15000890334
890334025004CSSPEC
8 files 27 nF 31030000 MΩ 0.1 0.1 0.5 300 MXXP015273K310ACPP45004
890334025006CSSPEC
8 files 33 nF 31030000 MΩ 0.1 0.1 0.5 300 MXXP015333K310ACPP46004
890334025007CSSPEC
8 files 39 nF 31030000 MΩ 0.1 0.1 0.5 300 MXXP015393K310ACPP45004
890334025009CSSPEC
8 files 47 nF 31030000 MΩ 0.1 0.1 0.5 220 MXXP015473K310ACPP46004
890334025011CSSPEC
8 files 56 nF 31030000 MΩ 0.1 0.1 0.5 250 MXXP015563K310ACPP46004
890334025013CSSPEC
8 files 68 nF 31030000 MΩ 0.1 0.1 0.5 270 MXXP015683K310ACPP46004
890334025015CSSPEC
8 files 82 nF 31030000 MΩ 0.1 0.1 0.5 290 MXXP015823K310ACPP46004
890334025017CSSPEC
8 files 100 nF 31030000 MΩ 0.1 0.1 0.5 300 MXXP015104K310ACPP46004
890334025020CSSPEC
8 files 120 nF 31030000 MΩ 0.1 0.2 2 300 MXXP015124K310ACPP46004
890334025022CSSPEC
8 files 150 nF 31030000 MΩ 0.1 0.2 2 210 MXXP015154K310ACPP46004
890334025025CSSPEC
8 files 180 nF 31030000 MΩ 0.1 0.2 2 230 MXXP015184K310ACPP45004
890334025027CSSPEC
8 files 220 nF 31030000 MΩ 0.1 0.2 2 180 MXXP015224K310ACPP45004
890334025031CSSPEC
8 files 270 nF 31030000 MΩ 0.1 0.2 2 250 MXXP015274K310ACPP45004
890334025034CSSPEC
8 files 330 nF 31030000 MΩ 0.1 0.2 2 260 MXXP015334K310ACPP46004
890334025039CSSPEC
8 files 470 nF 31010000 Ω x F 0.1 0.2 2 220 MXXP015474K310ACPP46004
890334025043CSSPEC
8 files 560 nF 31010000 Ω x F 0.1 0.7 220 MXXP015564K310ACPP45004
890334025045CSSPEC
8 files 680 nF 31010000 Ω x F 0.1 0.7 230 MXXP015684K310ACPP45004
890334025004SPEC
8 files 27 nF 31030000 MΩ 0.1 0.1 0.5 300 MX2P015273K275ASPB15000
890334025006SPEC
8 files 33 nF 31030000 MΩ 0.1 0.1 0.5 300 MX2P015333K275ASPB16000890334
890334025007SPEC
8 files 39 nF 31030000 MΩ 0.1 0.1 0.5 300 MX2P015393K275ASPB15000
890334025009SPEC
8 files 47 nF 31030000 MΩ 0.1 0.1 0.5 220 MX2P015473K275ASPB16000
890334025011SPEC
8 files 56 nF 31030000 MΩ 0.1 0.1 0.5 250 MX2P015563K275ASPB16000
890334025013SPEC
8 files 68 nF 31030000 MΩ 0.1 0.1 0.5 270 MX2P015683K275ASPB16000
890334025015SPEC
8 files 82 nF 31030000 MΩ 0.1 0.1 0.5 290 MX2P015823K275ASPB16000
890334025017SPEC
8 files 100 nF 31030000 MΩ 0.1 0.1 0.5 300 MX2P015104K275ASPB16000890334
890334025020SPEC
8 files 120 nF 31030000 MΩ 0.1 0.2 2 300 MX2P015124K275ASPB16000
890334025022SPEC
8 files 150 nF 31030000 MΩ 0.1 0.2 2 210 MX2P015154K275ASPB16000
890334025025SPEC
8 files 180 nF 31030000 MΩ 0.1 0.2 2 230 MX2P015184K275ASPB15000
890334025027SPEC
8 files 220 nF 31030000 MΩ 0.1 0.2 2 180 MX2P015224K275ASPB15000
890334025031SPEC
8 files 270 nF 31030000 MΩ 0.1 0.2 2 250 MX2P015274K275ASPB15000
890334025034SPEC
8 files 330 nF 31030000 MΩ 0.1 0.2 2 260 MX2P015334K275ASPB16000
890334025039SPEC
8 files 470 nF 31010000 Ω x F 0.1 0.2 2 220 MX2P015474K275ASPB16000
890334025043SPEC
8 files 560 nF 31010000 Ω x F 0.1 0.7 220 MX2P015564K275ASPB15000
890334025045SPEC
8 files 680 nF 31010000 Ω x F 0.1 0.7 230 MX2P015684K275ASPB15000890334
890334026003CSSPEC
8 files 220 nF 31030000 MΩ 0.1 0.2 2 160 MXXP225224K310ACPP46004
890334026018CSSPEC
8 files 560 nF 31010000 Ω x F 0.1 0.7 160 MXXP225564K310ACPP36004
890334026020CSSPEC
8 files 680 nF 31010000 Ω x F 0.1 0.7 130 MXXP225684K310ACPP45004
890334026024CSSPEC
8 files 820 nF 31010000 Ω x F 0.1 0.7 160 MXXP225824K310ACPP36004
890334026027CSSPEC
8 files 1 µF 31010000 Ω x F 0.1 0.7 170 MXXP225105K310ACPP36004
890334026030CSSPEC
8 files 1.5 µF 31010000 Ω x F 0.1 0.7 140 MXXP225155K310ACPP35004
890334026034CSSPEC
8 files 2.2 µF 31010000 Ω x F 0.1 0.7 170 MXXP225225K310ACPP26004
890334026003SPEC
8 files 220 nF 31030000 MΩ 0.1 0.2 2 160 MX2P225224K275ASPB46000
890334026018SPEC
8 files 560 nF 31010000 Ω x F 0.1 0.7 160 MX2P225564K275ASPB46000890334
890334026020SPEC
8 files 680 nF 31010000 Ω x F 0.1 0.7 130 MX2P225684K275ASPB45000
890334026024SPEC
8 files 820 nF 31010000 Ω x F 0.1 0.7 160 MX2P225824K275ASPB46000
890334026027SPEC
8 files 1 µF 31010000 Ω x F 0.1 0.7 170 MX2P225105K275ASPB46000890334
890334026030SPEC
8 files 1.5 µF 31010000 Ω x F 0.1 0.7 140 MX2P225155K275ASPB45000
890334026034SPEC
8 files 2.2 µF 31010000 Ω x F 0.1 0.7 170 MX2P225225K275ASPB46000
890334027006CSSPEC
8 files 680 nF 31010000 Ω x F 0.1 0.7 170 MXXP275684K310ACPP36004
890334027012CSSPEC
8 files 1.2 µF 31010000 Ω x F 0.1 0.7 130 MXXP275125K310ACPP36004
890334027025CSSPEC
8 files 3.3 µF 31010000 Ω x F 0.1 0.7 130 MXXP275335K310ACPP25004
890334027006SPEC
8 files 680 nF 31010000 Ω x F 0.1 0.7 170 MX2P275684K275ASPB56000890334
890334027012SPEC
8 files 1.2 µF 31010000 MΩ 0.1 0.7 130 MX2P275125K275ASPB56000
890334027025SPEC
8 files 3.3 µF 31010000 MΩ 0.1 0.7 130 MX2P275335K275ASPB55000890334
890334028008CSSPEC
8 files 6.8 µF 31010000 Ω x F 0.1 0.7 110 MXXP375685K310ACPP25004
890334028008SPEC
8 files 6.8 µF 31010000 Ω x F 0.1 0.7 110 MX2P375685K275ASPB65000890334
890334027009SPEC
8 files 1 µF 31010000 Ω x F 0.1 0.7 100 MX2P275105K275ASPB55000
