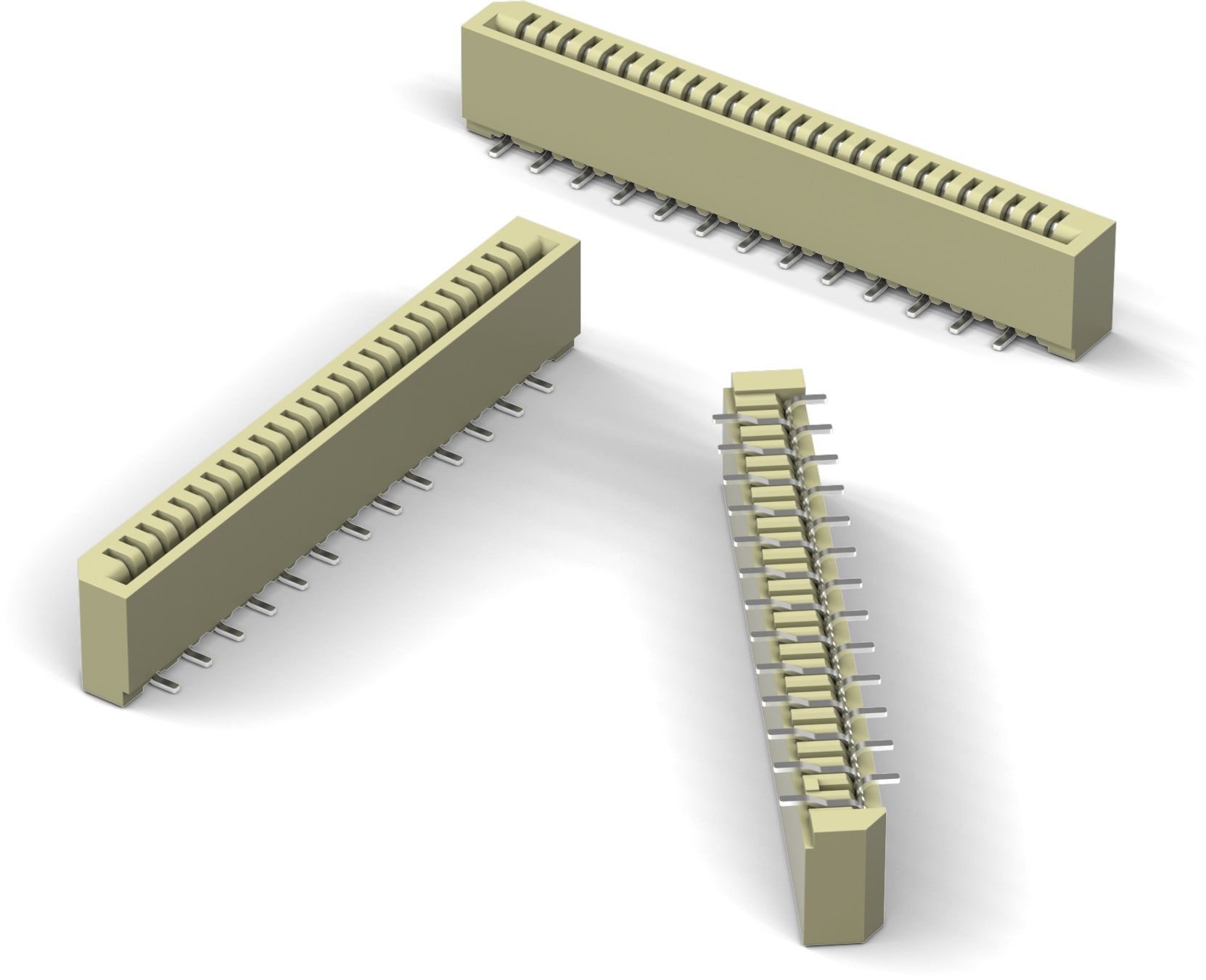

WR-FPC 1.00 mm SMT LIF Vertical Type A

General Information
Pitch1 mm
Material Properties
Insulator MaterialLCP
Contact MaterialPhosphor Bronze
Contact Plating2.032µm Tin over 1.27µm Nickel
Contact TypeStamped

Products

Order Code Data­sheet DownloadsPinsPitch
(mm)
TypeL
(mm)
IR
(A)
Working Voltage
(V (AC))
PackagingContact Resistance
(mΩ)
Tol. RDesign Kit Samples
686104188822SPEC
6 files 4 1 Vertical 7 1 125 Tape and Reel & Mylar 30 max.687001
686106188822SPEC
6 files 6 1 Vertical 9 1 125 Tape and Reel & Mylar 30 max.687001
686108188822SPEC
6 files 8 1 Vertical 11 1 125 Tape and Reel & Mylar 30 max.687001
686109188822SPEC
6 files 9 1 Vertical 12 1 125 Tape and Reel & Mylar 30 max.687001
686110188822SPEC
6 files 10 1 Vertical 13 1 125 Tape and Reel & Mylar 30 max.612690
687001
686112188822SPEC
5 files 12 1 Vertical 15 1 125 Tape and Reel & Mylar 30 max.687001
686114188822SPEC
6 files 14 1 Vertical 17 1 125 Tape and Reel & Mylar 30 max.687001
686116188822SPEC
6 files 16 1 Vertical 19 1 125 Tape and Reel & Mylar 30 max.687001
686118188822SPEC
6 files 18 1 Vertical 21 1 125 Tape and Reel & Mylar 30 max.687001
686120188822SPEC
6 files 20 1 Vertical 23 1 125 Tape and Reel & Mylar 30 max.687001
686122188822SPEC
5 files 22 1 Vertical 25 1 125 Tape and Reel & Mylar 30 max.687001
686124188822SPEC
6 files 24 1 Vertical 27 1 125 Tape and Reel & Mylar 30 max.687001
686126188822SPEC
6 files 26 1 Vertical 29 1 125 Tape and Reel & Mylar 30 max.687001
686128188822SPEC
6 files 28 1 Vertical 31 1 125 Tape and Reel & Mylar 30 max.687001
686130188822SPEC
6 files 30 1 Vertical 33 1 125 Tape and Reel & Mylar 30 max.687001
Order Code Data­sheet
686104188822SPEC
686106188822SPEC
686108188822SPEC
686109188822SPEC
686110188822SPEC
686112188822SPEC
686114188822SPEC
686116188822SPEC
686118188822SPEC
686120188822SPEC
686122188822SPEC
686124188822SPEC
686126188822SPEC
686128188822SPEC
686130188822SPEC
