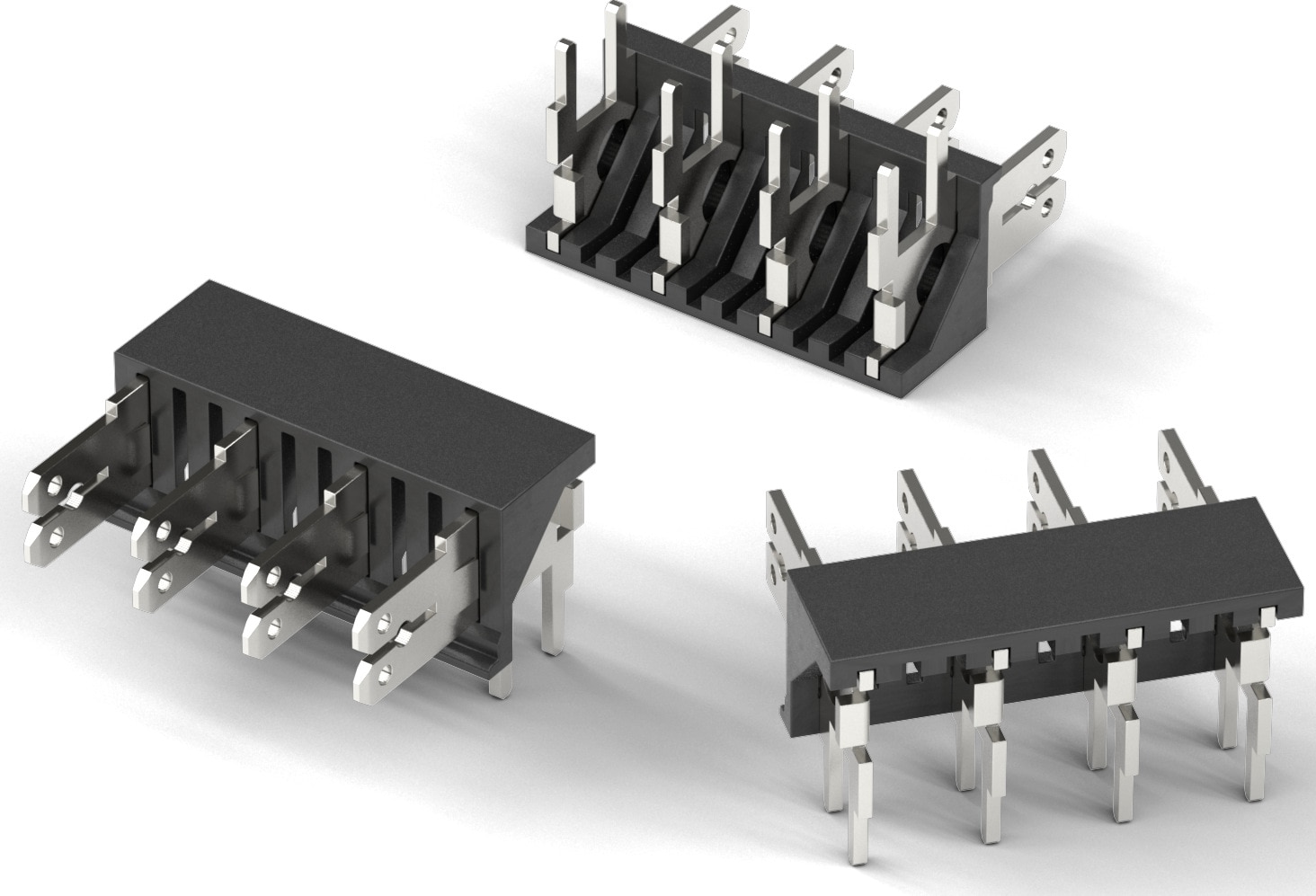

WR-FAST 7.62 mm THT Male Header Angled Blade 2863 NEW

Kind Properties
Pitch 7.62 mm
Gender Male
Material Properties
Insulator Material PC
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Contact Material Steel
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -30 up to +120 °C
Working Voltage 300 V (AC)
Withstanding Voltage 1600 V (AC)
Contact Resistance 20 mΩ
RISO 5 MΩ
IR 16 A
Certification
cULus Approval E150931
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Pins Pitch
(mm)
Gender Type Mount IR
(A)
Working Voltage
(V (AC))
Contact Resistance
(mΩ)
L
(mm)
Packaging Samples
638363122002
IGE STE 3D ALT EAG CAD 2 7.62 Male Right Angled THT 16 300 20 11.74 Box
638363122003
IGE STE 3D ALT EAG CAD 3 7.62 Male Right Angled THT 16 300 20 19.36 Box
638363122004
IGE STE 3D ALT EAG CAD 4 7.62 Male Right Angled THT 16 300 20 26.98 Box
638363122005
IGE STE ALT EAG CAD 5 7.62 Male Right Angled THT 16 300 20 34.6 Box
638363122006
IGE STE 3D ALT EAG CAD 6 7.62 Male Right Angled THT 16 300 20 42.22 Box
638363122007
IGE STE 3D ALT EAG CAD 7 7.62 Male Right Angled THT 16 300 20 49.84 Box
638363122008
IGE STE 3D ALT EAG CAD 8 7.62 Male Right Angled THT 16 300 20 57.46 Box
Order Code SPEC
638363122002
638363122003
638363122004
638363122005
638363122006
638363122007
638363122008
