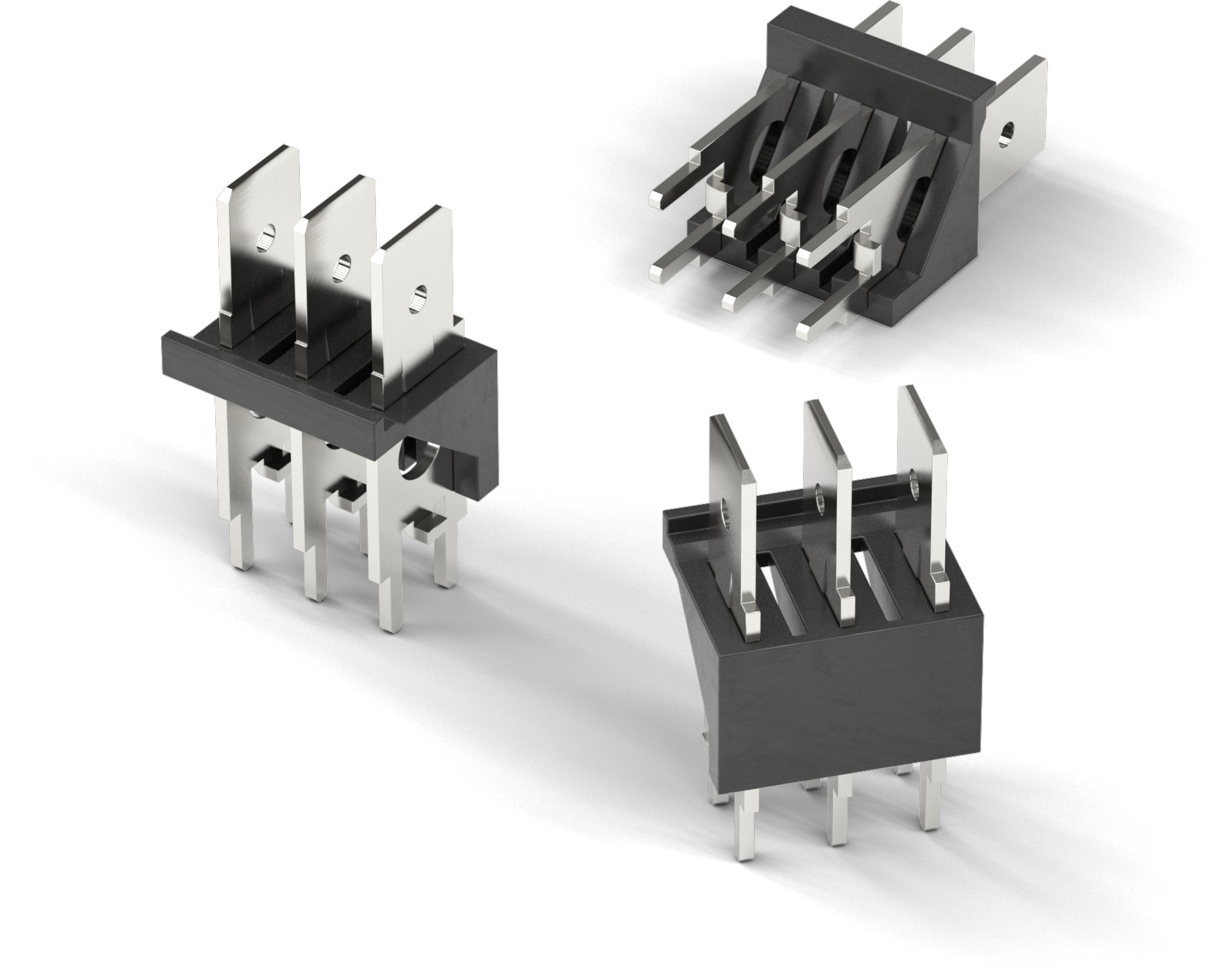

WR-FAST 5.08 mm THT Male Header Vertical Blade 6.3 NEW

Kind Properties
Pitch 5.08 mm
Gender Male
Material Properties
Insulator Material PC
Insulator Flammability Rating UL94 V-0
Insulator Color Black
Contact Material Steel
Contact Plating Tin
Contact Type Stamped
General Information
Operating Temperature -30 up to +120 °C
Working Voltage 300 V (AC)
Withstanding Voltage 1600 V (AC)
Contact Resistance 20 mΩ
RISO 5 MΩ
IR 16 A
Certification
cULus Approval E150931
Packaging Properties
Packaging Box

Products

Order Code Data­sheet Downloads Pins
(mm)
Pitch
(mm)
Gender Type Mount L
(mm)
Packaging Samples
638263222002
IGE STE 3D ALT EAG CAD 2 5.08 Male Vertical THT 9.2 Box
638263222003
IGE STE 3D ALT EAG CAD 3 5.08 Male Vertical THT 14.28 Box
638263222004
IGE STE 3D ALT EAG CAD 4 5.08 Male Vertical THT 19.36 Box
638263222005
IGE STE 3D ALT EAG CAD 5 5.08 Male Vertical THT 24.44 Box
638263222006
IGE STE 3D ALT EAG CAD 6 5.08 Male Vertical THT 29.52 Box
638263222007
IGE STE ALT EAG CAD 7 5.08 Male Vertical THT 34.6 Box
638263222008
IGE STE 3D ALT EAG CAD 8 5.08 Male Vertical THT 39.68 Box
Order Code Data­sheet
638263222002
638263222003
638263222004
638263222005
638263222006
638263222007
638263222008
Samples
Order Code Data­sheet Downloads Pins
(mm)
Pitch
(mm)
Gender Type Mount L
(mm)
Packaging Samples
