Evaluation Boards MagI³C-VDRM

Products

Order Code	Datasheet	Downloads	V_IN (V)	V_OUT (V)	I_OUT (A)	Power Module
178020302	SPEC	2 files EDA models: Reference designs ZIP EAG Eagle_Layout-1780x0302 (rev1.0).zip \| 68 KB GBR Gerber_1780x0302 (rev1.0).zip \| 92.1 KB Download all 2 files as zip archive ZIP	2.95 - 6	0.8 - 3.6	2	171020302

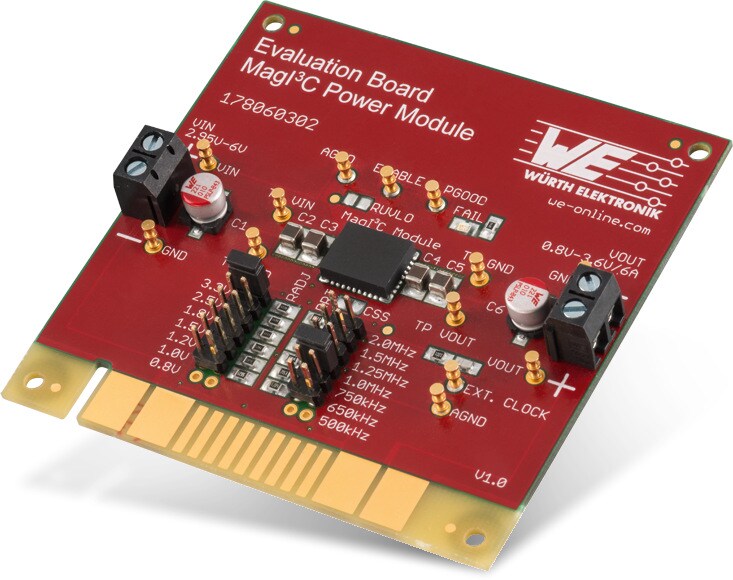

178060302	SPEC	2 files EDA models: Reference designs ZIP EAG Eagle_Layout-1780x0302 (rev1.0).zip \| 68 KB GBR Gerber_1780x0302 (rev1.0).zip \| 92.1 KB Download all 2 files as zip archive ZIP	2.95 - 6	0.8 - 3.6	6	171060302
178040302	SPEC	2 files EDA models: Reference designs ZIP EAG Eagle_Layout-1780x0302 (rev1.0).zip \| 68 KB GBR Gerber_1780x0302 (rev1.0).zip \| 92.1 KB Download all 2 files as zip archive ZIP	2.96 - 6	0.8 - 3.6	4	171040302
178012401	SPEC	2 files EDA models: Reference designs ZIP EAG Eagle-Layout_178012401 (rev1).zip \| 100.5 KB GBR Gerber_178012401 (rev1).zip \| 130.4 KB Download all 2 files as zip archive ZIP	6 - 42	5 - 24	1	171012401
178012402	SPEC	2 files EDA models: Reference designs ZIP EAG Eagle_Layout_178012402 (rev1).zip \| 100.2 KB GBR Gerber_178012402 (rev1).zip \| 120.7 KB Download all 2 files as zip archive ZIP	6 - 42	5 - 24	2	171012402
178032401		2 files EDA models: Reference designs ZIP ALT Altium_Layout_178032401 (rev1).zip \| 2.2 MB GBR Gerber_178032401 (rev1).zip \| 107.6 KB Download all 2 files as zip archive ZIP	6 - 42	5 - 24	3	171032401
178020601		2 files EDA models: Reference designs ZIP EAG Eagle_Layout-178020601 (rev1).zip \| 101 KB GBR Gerber_178020601 (rev1).zip \| 130.7 KB Download all 2 files as zip archive ZIP	6 - 42	0.8 - 6	2	171020601
178050601	SPEC	2 files EDA models: Reference designs ZIP EAG Eagle_Layout_178050601 (rev1).zip \| 99.5 KB GBR Gerber_178050601 (rev1).zip \| 177.6 KB Download all 2 files as zip archive ZIP	6 - 36	0.8 - 6	5	171050601
178010601		2 files EDA models: Reference designs ZIP EAG EAGLE_LAYOUT_178010601 (rev1).zip \| 106.4 KB GBR GERBER_178010601 (rev1).zip \| 121.8 KB Download all 2 files as zip archive ZIP	6 - 42	0.8 - 6	1	171010601
178030601		2 files EDA models: Reference designs ZIP EAG EAGLE_LAYOUT_178030601 (rev1).zip \| 100.6 KB GBR GERBER_178030601 (rev1).zip \| 121.9 KB Download all 2 files as zip archive ZIP	6 - 42	0.8 - 6	3	171030601
178021501	SPEC	2 files EDA models: Reference designs ZIP EAG Eagle_Layout_178021501 (rev2.0).zip \| 71.8 KB GBR Gerber_178021501 (rev2.0).zip \| 128.5 KB Download all 2 files as zip archive ZIP	7 - 50	2.5 - 15	2.5	171021501
