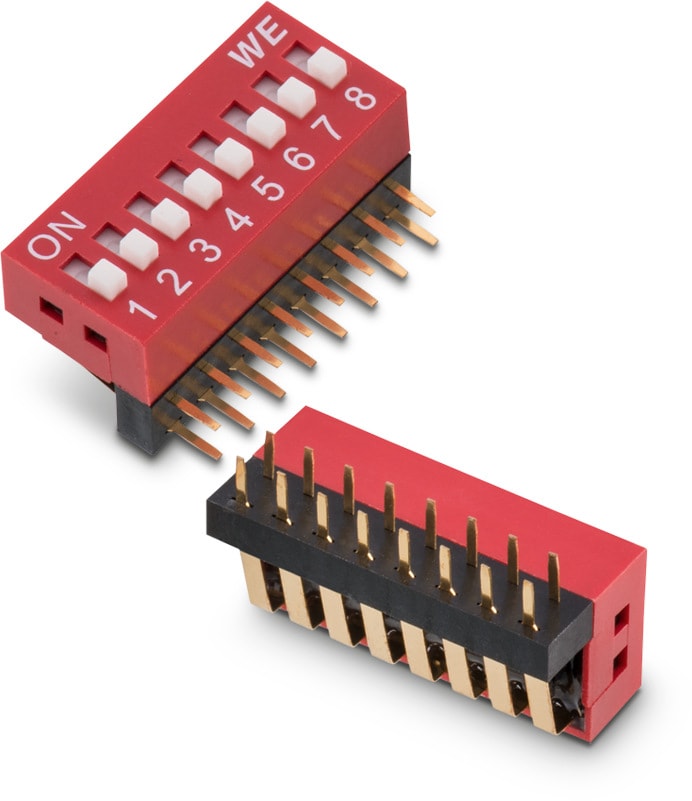

WS-DITU Compact THT Right Angled with Raised Actuator 2.54 mm

Material Properties
Cover Material	PBT
Cover Flammability Rating	UL94 V-0
Base Material	PBT
Base Flammability Rating	UL94 V-0
Actuator Material	PBT
Actuator Flammability Rating	UL94 V-0
Contact Plating	Gold
Terminal Plating	Gold

Electrical Properties
I_R	100 mA
V_R	50 V (DC)
Contact Resistance Initial	50 mΩ
R_ISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Operation Force (Value)	800 g
Electrical Life	2000 Cycles
Actuator Type	Raise Type
Switch Position	Off

General Information
Operating Temperature	-40 °C up to +85 °C

Packaging Properties
Packaging	Tube

Products

Order Code	Datasheet	Downloads	Poles	L (mm)	Vaporphase process	Design Kit	Samples
418217270902A	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB CAD files ZIP 3D 418217270902A_V2 (rev1).pdf \| 126.9 KB IGS 418217270902A_V2 (rev1).iges \| 2 MB STP 418217270902A_V2 (rev1).stp \| 853 KB Download all 6 files as zip archive ZIP	2	6.08	not specified	499001
418217270903A	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB CAD files ZIP 3D 418217270903A_V2 (rev1).pdf \| 164.2 KB IGS 418217270903A_V2 (rev1).igs \| 2.5 MB STP 418217270903A_V2 (rev1).stp \| 1 MB Download all 6 files as zip archive ZIP	3	8.92	not specified	–
418217270904A	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB CAD files ZIP 3D 418217270904A_V2 (rev1).pdf \| 192.9 KB IGS 418217270904A_V2 (rev1).iges \| 3 MB STP 418217270904A_V2 (rev1).stp \| 1.3 MB Download all 6 files as zip archive ZIP	4	11.16	not specified	499001
418217270906A	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB CAD files ZIP 3D 418217270906A_V2 (rev1).pdf \| 251.3 KB IGS 418217270906A_V2 (rev1).iges \| 3.9 MB STP 418217270906A_V2 (rev1).stp \| 1.7 MB Download all 6 files as zip archive ZIP	6	16.24	not specified	499001
418217270908A	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB CAD files ZIP 3D 418217270908A_V2 (rev1).pdf \| 300.7 KB IGS 418217270908A_V2 (rev1).iges \| 4.7 MB STP 418217270908A_V2 (rev1).stp \| 2 MB Download all 6 files as zip archive ZIP	8	21.32	not specified	499001
418217270910A	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-DITU (rev22a).IntLib \| 1.3 MB CDS Cadence_WS-DITU (rev18a).zip \| 4.1 MB EAG Eagle_WS-DITU (rev20a).lbr \| 61.8 KB CAD files ZIP 3D 418217270910A_V2 (rev1).pdf \| 363.5 KB IGS 418217270910A_V2 (rev1).iges \| 5.6 MB STP 418217270910A_V2 (rev1).stp \| 2.4 MB Download all 6 files as zip archive ZIP	10	26.4	not specified	499001
