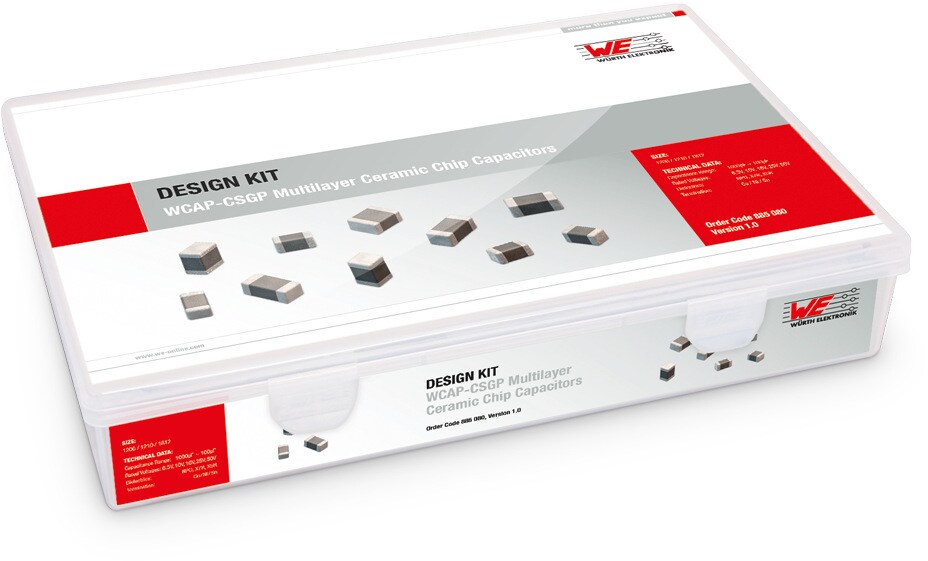

Design Kit WCAP-CSGP - General Purpose - 1206/1210/ 1812

Order Code 885080

Products

Order Code SPEC Simu­lation Downloads Product series C DF
(%) 		VR
(V (DC)) 		Size Technical Reference Samples
885012008049
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 1  nF – 50 1206 NP01206102J050DFCT10000
885012009017
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 1  nF – 50 1210 NP01210102J050DFCT10000
885012008050
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 1.5  nF – 50 1206 NP01206152J050DFCT10000
885012009018
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 1.5  nF – 50 1210 NP01210152J050DFCT10000
885012010009
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 1.5  nF – 50 1812 NP01812152J050DFCT10000
885012008051
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 2.2  nF – 50 1206 NP01206222J050DFCT10000
885012009019
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 2.2  nF – 50 1210 NP01210222J050DFCT10000
885012008052
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 3.3  nF – 50 1206 NP01206332J050DFCT10000
885012009020
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 3.3  nF – 50 1210 NP01210332J050DFCT10000
885012010010
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 3.3  nF – 50 1812 NP01812332J050DFCT10000
885012008053
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 4.7  nF – 50 1206 NP01206472J050DFCT10000
885012009021
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 4.7  nF – 50 1210 NP01210472J050DFCT10000
885012010011
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 4.7  nF – 50 1812 NP01812472J050DFCT10000
885012008054
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 6.8  nF – 50 1206 NP01206682J050DFCT10000
885012009022
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 6.8  nF – 50 1210 NP01210682J050DFCT10000
885012010012
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 6.8  nF – 50 1812 NP01812682J050DFCT10000
885012008055
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 10  nF – 50 1206 NP01206103J050DFCT10000
885012208081
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 10  nF 2.5 50 1206 X7R1206103K050DFCT1000
885012009023
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 10  nF – 50 1210 NP01210103J050DFCT10000
885012010013
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 10  nF – 50 1812 NP01812103J050DFCT10000
885012208082
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 15  nF 2.5 50 1206 X7R1206153K050DFCT1000
885012009024
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 15  nF – 50 1210 NP01210153J050DFCT10000
885012010014
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 15  nF – 50 1812 NP01812153J050DFCT10000
885012208083
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 22  nF 2.5 50 1206 X7R1206223K050DFCT1000
885012010015
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 22  nF – 50 1812 NP01812223J050DFCT10000
885012008010
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 33  nF – 10 1206 NP01206333J010DFCT10000
885012208084
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 33  nF 2.5 50 1206 X7R1206333K050DFCT1000
885012010016
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 33  nF – 50 1812 NP01812333J050DFCT10000
885012208085
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 47  nF 2.5 50 1206 X7R1206473K050DFCT1000
885012208086
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 68  nF 2.5 50 1206 X7R1206683K050DFCT1000
885012208087
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 100  nF 2.5 50 1206 X7R1206104K050DFCT1000
885012210025
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 100  nF 2.5 50 1812 X7R1812104K050DFCT10000
885012208088
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 150  nF 2.5 50 1206 X7R1206154K050DFCT10000
885012210026
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 150  nF 2.5 50 1812 X7R1812154K050DFCT10000
885012208089
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 220  nF 2.5 50 1206 X7R1206224K050DFCT10000
885012209043
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 220  nF 2.5 50 1210 X7R1210224K050DFCT10000
885012210027
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 220  nF 2.5 50 1812 X7R1812224K050DFCT10000
885012208090
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 330  nF 2.5 50 1206 X7R1206334K050DFCT10000
885012209044
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 330  nF 2.5 50 1210 X7R1210334K050DFCT10000
885012210028
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 330  nF 2.5 50 1812 X7R1812334K050DFCT10000
885012208091
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 470  nF 3 50 1206 X7R1206474K050DFCT10000
885012209045
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 470  nF 2.5 50 1210 X7R1210474K050DFCT10000
885012210029
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 470  nF 2.5 50 1812 X7R1812474K050DFCT10000
885012208092
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 680  nF 3 50 1206 X7R1206684K050DFCT10000
885012209046
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 680  nF 2.5 50 1210 X7R1210684K050DFCT10000
885012210030
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 680  nF 2.5 50 1812 X7R1812684K050DFCT10000
885012208093
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 1  µF 3 50 1206 X7R1206105K050DFCT10000
885012209047
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 1  µF 2.5 50 1210 X7R1210105K050DFCT10000
885012210031
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 1  µF 2.5 50 1812 X7R1812105K050DFCT10000
885012108019
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 2.2  µF 3.5 25 1206 X5R1206225M025DFCT10000
885012210032
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1812 2.2  µF 2.5 50 1812 X7R1812225K050DFCT10000
885012108015
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 3.3  µF 5 16 1206 X5R1206335M016DFCT10000
885012208094
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 4.7  µF 10 50 1206 X7R1206475K050DFCT10000
885012108020
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 4.7  µF 7 25 1206 X5R1206475M025DFCT10000
885012209048
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 4.7  µF 5 50 1210 X7R1210475K050DFCT10000
885012109008
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 4.7  µF 5 16 1210 X5R1210475M016DFCT10000
885012109012
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 4.7  µF 3.5 25 1210 X5R1210475M025DFCT10000
885012208069
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 10  µF 10 25 1206 X7R1206106K025DFCT10000
885012108017
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 10  µF 10 16 1206 X5R1206106M016DFCT10000
885012108021
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 10  µF 10 25 1206 X5R1206106M025DFCT10000
885012209028
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 10  µF 5 25 1210 X7R1210106K025DFCT10000
885012109009
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 10  µF 5 16 1210 X5R1210106M016DFCT10000
885012109013
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 10  µF 5 25 1210 X5R1210106M025DFCT10000
885012208019
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 22  µF 10 10 1206 X7R1206226K010DFCT10000
885012108018
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 22  µF 10 16 1206 X5R1206226M016DFCT10000
885012209006
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 22  µF 10 10 1210 X7R1210226K010DFCT10000
885012109010
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 22  µF 10 16 1210 X5R1210226M016DFCT10000
885012109014
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 22  µF 10 25 1210 X5R1210226M025DFCT10000
885012108012
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 47  µF 10 10 1206 X5R1206476M010DFCT10000
885012109011
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 47  µF 10 16 1210 X5R1210476M016DFCT10000
885012108005
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1206 100  µF 15 6.3 1206 X5R1206107M6R3DFCT10000
885012109004
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 1210 100  µF 15 6.3 1210 X5R1210107M6R3DFCT10000
