Product unit Passive Components Product group Capacitors Product family Design Kits for Capacitors Design kit Design Kit WCAP-CSGP - General Purpose - 0402
Product unit Passive Components Product group Capacitors Product family Design Kits for Capacitors Design kit Design Kit WCAP-CSGP - General Purpose - 0402

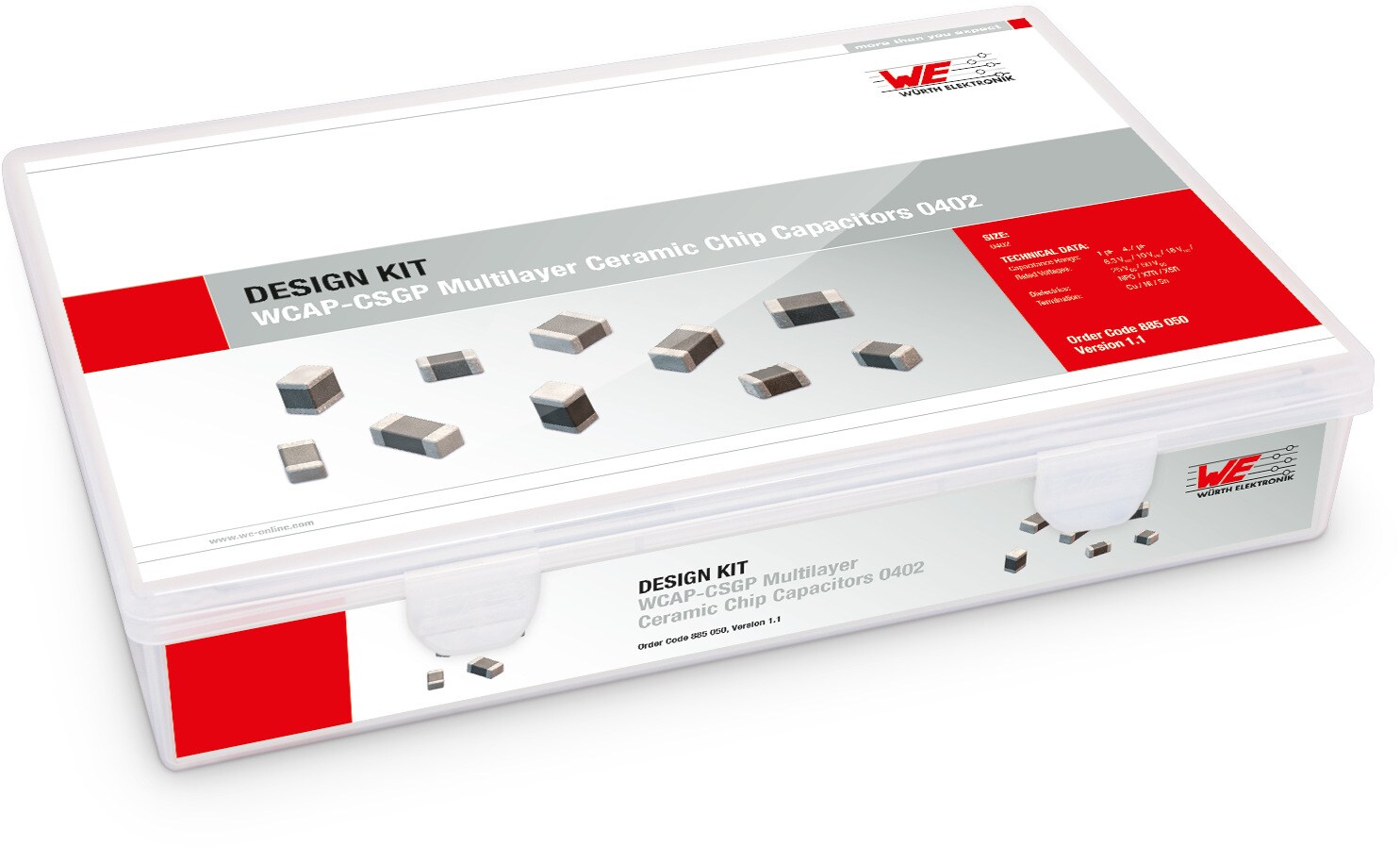

Design Kit WCAP-CSGP - General Purpose - 0402

Order Code 885050

Products

Order Code SPEC Simu­lation Downloads Product series C DF
(%) 		VR
(V (DC)) 		Size Technical Reference Samples
885012005034
ALT EAG CAD CAD CAD WCAP-CSGP MLCCs 0402 1  pF – 25 0402 NP004021R0D025DFCT10000
885012005049
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 1  pF – 50 0402 NP004021R0D050DFCT10000
885012005035
ALT EAG CAD CAD CAD WCAP-CSGP MLCCs 0402 1.5  pF – 25 0402 NP004021R5D025DFCT10000
885012005036
ALT EAG CAD CAD CAD WCAP-CSGP MLCCs 0402 2.2  pF – 25 0402 NP004022R2D025DFCT10000
885012005050
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 1.5  pF – 50 0402 NP004021R5D050DFCT10000
885012005051
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 2.2  pF – 50 0402 NP004022R2D050DFCT10000
885012005037
ALT EAG CAD CAD CAD WCAP-CSGP MLCCs 0402 3.3  pF – 25 0402 NP004023R3D025DFCT10000
885012005052
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 3.3  pF – 50 0402 NP004023R3D050DFCT10000
885012005038
ALT EAG CAD CAD CAD WCAP-CSGP MLCCs 0402 4.7  pF – 25 0402 NP004024R7D025DFCT10000
885012005053
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 4.7  pF – 50 0402 NP004024R7D050DFCT10000
885012005039
ALT EAG CAD CAD CAD WCAP-CSGP MLCCs 0402 6.8  pF – 25 0402 NP004026R8D025DFCT10000
885012005054
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 6.8  pF – 50 0402 NP004026R8D050DFCT10000
885012005040
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 10  pF – 25 0402 NP00402100J025DFCT10000
885012005055
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 10  pF – 50 0402 NP00402100J050DFCT10000
885012005041
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 15  pF – 25 0402 NP00402150J025DFCT10000
885012005056
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 15  pF – 50 0402 NP00402150J050DFCT10000
885012005042
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 22  pF – 25 0402 NP00402220J025DFCT10000
885012005057
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 22  pF – 50 0402 NP00402220J050DFCT10000
885012005043
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 33  pF – 25 0402 NP00402330J025DFCT10000
885012005058
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 33  pF – 50 0402 NP00402330J050DFCT10000
885012005044
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 47  pF – 25 0402 NP00402470J025DFCT10000
885012005059
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 47  pF – 50 0402 NP00402470J050DFCT10000
885012005045
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 68  pF – 25 0402 NP00402680J025DFCT10000
885012005060
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 68  pF – 50 0402 NP00402680J050DFCT10000
885012005046
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 100  pF – 25 0402 NP00402101J025DFCT10000
885012005061
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 100  pF – 50 0402 NP00402101J050DFCT10000
885012205038
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 100  pF 3.5 25 0402 X7R0402101K025DFCT10000
885012205055
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 100  pF 2.5 50 0402 X7R0402101K050DFCT10000
885012005047
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 150  pF – 25 0402 NP00402151J025DFCT10000
885012005062
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 150  pF – 50 0402 NP00402151J050DFCT10000
885012205039
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 150  pF 3.5 25 0402 X7R0402151K025DFCT10000
885012205056
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 150  pF 2.5 50 0402 X7R0402151K050DFCT10000
885012005048
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 220  pF – 25 0402 NP00402221J025DFCT10000
885012005063
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 220  pF – 50 0402 NP00402221J050DFCT10000
885012205040
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 220  pF 3.5 25 0402 X7R0402221K025DFCT10000
885012205057
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 220  pF 2.5 50 0402 X7R0402221K050DFCT10000
885012205041
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 330  pF 3.5 25 0402 X7R0402331K025DFCT10000
885012205058
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 330  pF 2.5 50 0402 X7R0402331K050DFCT10000
885012005017
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 470  pF – 10 0402 NP00402471J010DFCT10000
885012205042
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 470  pF 3.5 25 0402 X7R0402471K025DFCT10000
885012205059
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 470  pF 2.5 50 0402 X7R0402471K050DFCT10000
885012205043
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 680  pF 3.5 25 0402 X7R0402681K025DFCT10000
885012205060
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 680  pF 2.5 50 0402 X7R0402681K050DFCT10000
885012005018
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 1  nF – 10 0402 NP00402102J010DFCT10000
885012205044
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 1  nF 3.5 25 0402 X7R0402102K025DFCT10000
885012205061
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 1  nF 2.5 50 0402 X7R0402102K050DFCT10000
885012205045
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 1.5  nF 3.5 25 0402 X7R0402152K025DFCT10000
885012205062
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 1.5  nF 2.5 50 0402 X7R0402152K050DFCT10000
885012205046
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 2.2  nF 3.5 25 0402 X7R0402222K025DFCT10000
885012205063
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 2.2  nF 2.5 50 0402 X7R0402222K050DFCT10000
885012205047
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 3.3  nF 3.5 25 0402 X7R0402332K025DFCT10000
885012205064
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 3.3  nF 2.5 50 0402 X7R0402332K050DFCT10000
885012205048
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 4.7  nF 3.5 25 0402 X7R0402472K025DFCT10000
885012205065
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 4.7  nF 2.5 50 0402 X7R0402472K050DFCT10000
885012205049
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 6.8  nF 3.5 25 0402 X7R0402682K025DFCT10000
885012205066
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 6.8  nF 2.5 50 0402 X7R0402682K050DFCT10000
885012205050
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 10  nF 3.5 25 0402 X7R0402103K025DFCT10000
885012205067
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 10  nF 2.5 50 0402 X7R0402103K050DFCT10000
885012205051
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 15  nF 3.5 25 0402 X7R0402153K025DFCT10000
885012205052
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 22  nF 3.5 25 0402 X7R0402223K025DFCT10000
885012205053
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 33  nF 3.5 25 0402 X7R0402333K025DFCT10000
885012105014
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 33  nF 15 16 0402 X5R0402333M016DFCT10000
885012205054
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 47  nF 3.5 25 0402 X7R0402473K025DFCT10000
885012105015
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 47  nF 15 16 0402 X5R0402473M016DFCT10000
885012205036
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 68  nF 5 16 0402 X7R0402683K016DFCT10000
885012205037
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 100  nF 5 16 0402 X7R0402104K016DFCT10000
885012105016
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 100  nF 15 16 0402 X5R0402104M016DFCT10000
885012105018
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 100  nF 10 25 0402 X5R0402104M025DFCT10000
885012105017
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 220  nF 15 16 0402 X5R0402224M016DFCT10000
885012105012
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 1  µF 15 10 0402 X5R0402105M010DFCT10000
885012105013
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 2.2  µF 15 10 0402 X5R0402225M010DFCT10000
885012105008
ALT EAG CAD LTS PSP CAD CAD WCAP-CSGP MLCCs 0402 4.7  µF 20 6.3 0402 X5R0402475M6R3DFCT10000
