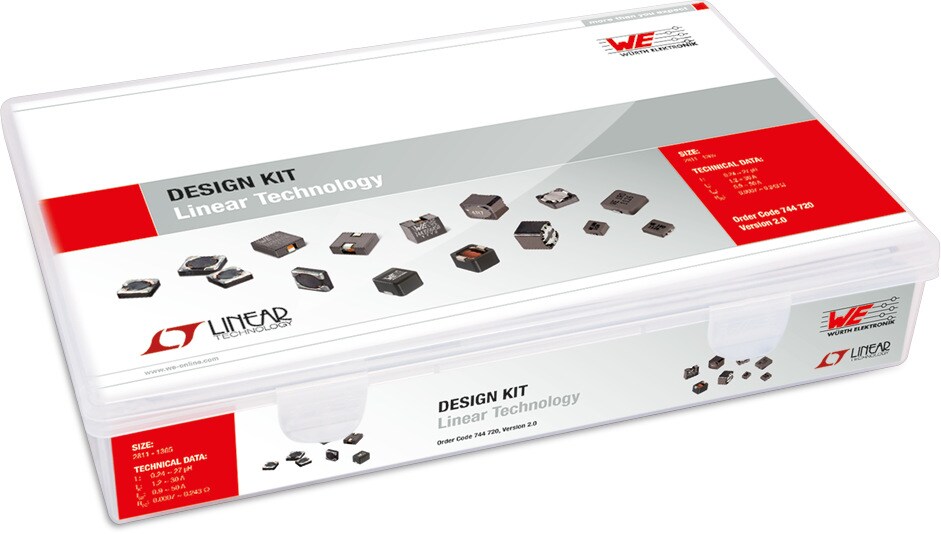

Design Kit Linear Technology

Order Code 744720

Products

Order Code SPEC Simu­lation Downloads Product series L1
(µH)
IR 1
(A)
ISAT 1
(A)
RDC1 typ
(mΩ)
RDC1 max.
(mΩ)
fres 1
(MHz)
Size Version Samples
744310024
ALT EAG CAD LTS PSP CAD CAD WE-HCI SMT Flat Wire High Current Inductor 7030 SMT
744310055
ALT EAG CAD LTS PSP CAD CAD WE-HCI SMT Flat Wire High Current Inductor 7030 SMT
744311068
ALT EAG CAD LTS PSP CAD CAD WE-HCI SMT Flat Wire High Current Inductor 7040 SMT
744311220
ALT EAG CAD LTS PSP CAD CAD WE-HCI SMT Flat Wire High Current Inductor 7040 SMT
744314650
ALT EAG CAD LTS PSP CAD CAD WE-HCI SMT Flat Wire High Current Inductor 7050 SMT
744355147
ALT EAG CAD LTS PSP CAD CAD WE-HCI SMT Flat Wire High Current Inductor 1365 SMT
7443551370
ALT EAG CAD LTS PSP CAD CAD WE-HCI SMT Flat Wire High Current Inductor 1365 SMT
7443551131
ALT EAG CAD LTS PSP CAD CAD WE-HCI SMT Flat Wire High Current Inductor 1365 SMT
7443330047
ALT EAG CAD LTS PSP CAD CAD WE-HCC SMT High Current Cube Inductor 1090 SMT
744373460047
ALT EAG CAD LTS PSP CAD WE-LHMI SMT Power Inductor 0.47 11.5 31 4 4.2 91 7030 SMT
744778005
ALT EAG CAD LTS PSP CAD CAD WE-PD SMT Power Inductor 0.54 5.6 9 7.2 8.5 155 7332 Standard
744778001
ALT EAG CAD LTS PSP CAD CAD WE-PD SMT Power Inductor 1 5.37 6.4 9 12 115 7332 Standard
7440420018
ALT EAG CAD LTS PSP CAD WE-TPC SMT Tiny Power Inductor 1.8 2.35 2.4 40 50 100 4818 SMT
7440430022
ALT EAG CAD LTS PSP CAD WE-TPC SMT Tiny Power Inductor 2.2 2.5 2.35 27 28 100 4828 SMT
744778002
ALT EAG CAD LTS PSP CAD CAD WE-PD SMT Power Inductor 2.2 4.02 4.8 14 20 67 7332 Standard
744031002
ALT EAG CAD LTS PSP CAD WE-TPC SMT Tiny Power Inductor 2.5 1.45 1.25 50 58 120 3816 SMT
7440420027
ALT EAG CAD LTS PSP CAD WE-TPC SMT Tiny Power Inductor 2.7 2.03 2.2 47 60 90 4818 SMT
744042003
ALT EAG CAD LTS PSP CAD WE-TPC SMT Tiny Power Inductor 3.3 1.95 1.8 50 65 80 4818 SMT
74437324033
ALT EAG CAD LTS PSP CAD WE-LHMI SMT Power Inductor 3.3 2.5 4.2 69 76 40 4020 SMT
74437346033
ALT EAG CAD LTS PSP CAD WE-LHMI SMT Power Inductor 3.3 5 13.5 28 30 27 7030
744031003
ALT EAG CAD LTS PSP CAD WE-TPC SMT Tiny Power Inductor 3.6 1.38 1.1 66 85 80 3816 SMT
744031004
ALT EAG CAD LTS PSP CAD WE-TPC SMT Tiny Power Inductor 4.7 1.2 0.9 90 105 75 3816 SMT
744042004
ALT EAG CAD LTS PSP CAD WE-TPC SMT Tiny Power Inductor 4.7 1.72 1.65 70 82 70 4818 SMT
744778004
ALT EAG CAD LTS PSP CAD CAD WE-PD SMT Power Inductor 4.7 2.32 4.2 42 60 45 7332 Standard
74437324047
ALT EAG CAD LTS PSP CAD WE-LHMI SMT Power Inductor 4.7 2.2 4 95 105 31 4020 SMT
744042005
ALT EAG CAD LTS PSP CAD WE-TPC SMT Tiny Power Inductor 5.6 1.64 1.35 80 90 55 4818 SMT
744042008
ALT EAG CAD LTS PSP CAD WE-TPC SMT Tiny Power Inductor 8.2 1.4 1.1 100 135 40 4818 SMT
744042100
ALT EAG CAD LTS PSP CAD WE-TPC SMT Tiny Power Inductor 10 1.3 1 120 150 45 4818 SMT
74437324100
ALT EAG CAD LTS PSP CAD WE-LHMI SMT Power Inductor 10 1.5 2.4 215 243 23 4020 SMT
74437346100
ALT EAG CAD LTS PSP CAD WE-LHMI SMT Power Inductor 10 3 7.3 75 85 15 7030
7447789112
ALT EAG CAD LTS PSP CAD CAD WE-PD SMT Power Inductor 12 1.73 1.9 76 98 27 7332 Robust
7447789115
ALT EAG CAD LTS PSP CAD CAD WE-PD SMT Power Inductor 15 1.51 1.75 100 130 26 7332 Robust
744778118
ALT EAG CAD LTS PSP CAD CAD WE-PD SMT Power Inductor 18 1.41 1.7 114 140 24 7332 Standard
74437346220
ALT EAG CAD LTS PSP CAD WE-LHMI SMT Power Inductor 22 1.9 4.5 165 190 10 7030
7447789127
ALT EAG CAD LTS PSP CAD CAD WE-PD SMT Power Inductor 27 1.27 1.35 130 210 18 7332 Robust
